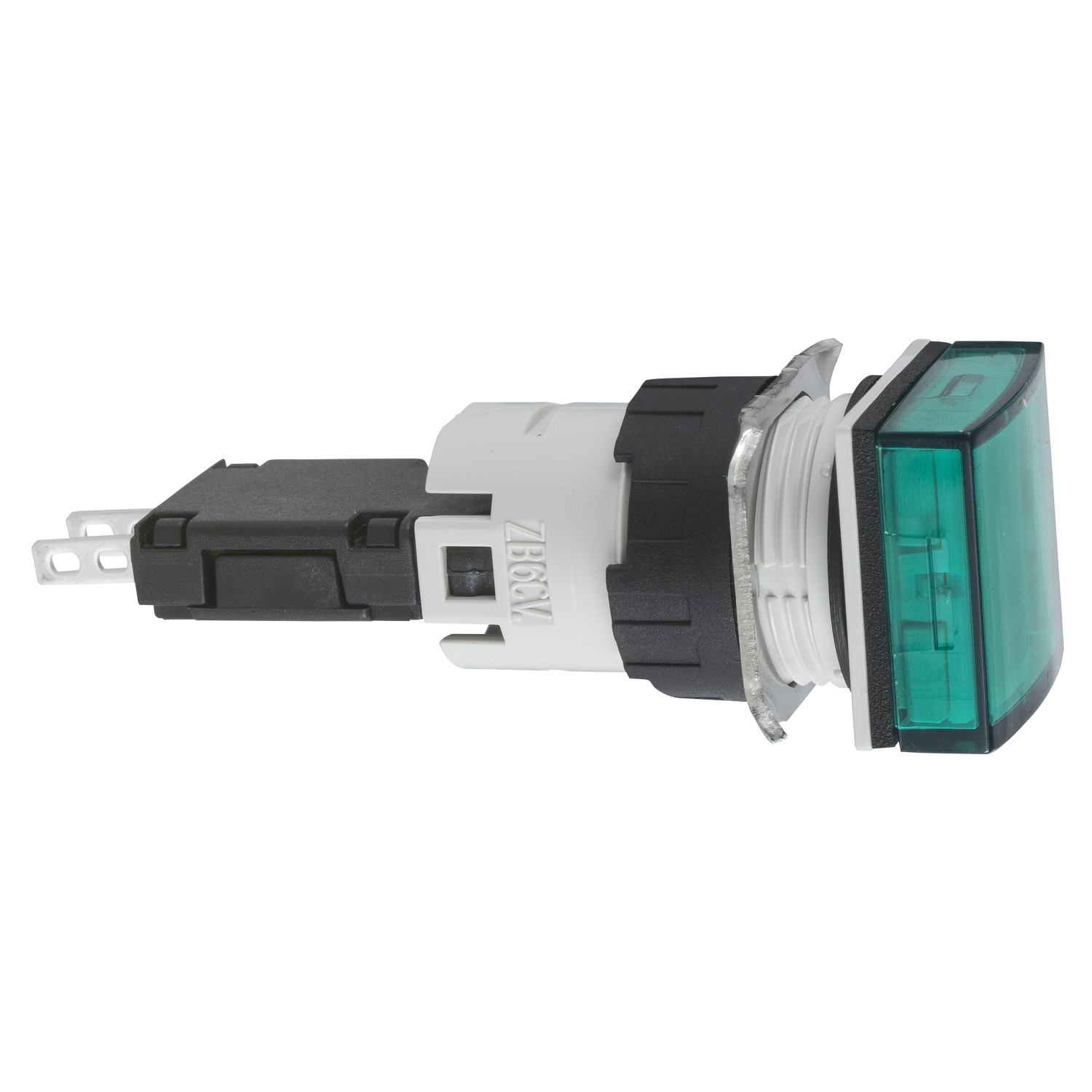

XB6CV3BB – Square Green Complete Pilot Light Ø16 with Integral LED 12…24V
Manufacturer: Schneider Electric
Product Overview
The XB6CV3BB is a high-quality square green pilot light designed for industrial and commercial applications. It features an integral LED and is compatible with a voltage range of 12 to 24V. This pilot light is part of Schneider Electric’s XB6 range, known for its durability and reliability.
Key Features
- Color: Green
- Shape: Square
- Diameter: Ø16 mm
- Voltage Range: 12…24V
- Light Source: Integral LED
- Mounting: Panel-mounted
- Material: Durable plastic housing
- IP Rating: IP65 (Dust-tight and protected against water jets)
- Operating Temperature: -25°C to +55°C
- Certifications: CE, UL, CSA
Applications
The XB6CV3BB pilot light is ideal for use in control panels, machinery, and equipment where clear visual indication of status is required. It is commonly used in industries such as manufacturing, automation, and process control.
Installation
The pilot light is designed for easy panel mounting. It comes with a secure locking mechanism to ensure it stays firmly in place. The integral LED ensures long-lasting performance with minimal maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage | 12…24V DC/AC |
| Current Consumption | 20 mA (typical) |
| Luminous Intensity | 200 mcd (typical) |
| Wavelength | 565 nm (green) |
| Life Expectancy | 100,000 hours |
| Connection Type | Screw terminals |
Warranty
Schneider Electric offers a standard warranty of 2 years for the XB6CV3BB pilot light, covering manufacturing defects and faults.
Compliance
This product complies with international standards and is certified by CE, UL, and CSA, ensuring safety and reliability in various applications.
