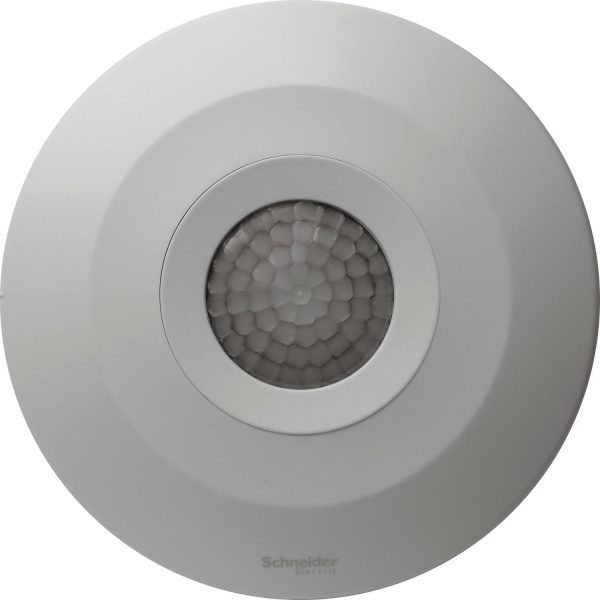

CSS54E_WE | Surface Mount Single-Load 360º Slim PIR Occupancy Sensor – Schneider Electric

Name: Schneider Electric CSS54E_WE Slim 360° PIR Sensor
Brand: Schneider Electric
SKU: CSS54E_WE
Price: 2566.80 INR
Availability: InStock

SKU: CSS54E_WE

Original price was: ₹4,140.00.Current price is: ₹2,566.80. Excl. GST

In stock

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric CSS54E_WE is a sensor from the ARGUS range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 220…230 V AC 50/60 Hz, IP20. Buy the CSS54E_WE | Surface Mount Single-Load 360º Slim PIR Occupancy Sensor online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	CSS54E_WE
Category	Sensor
Main
Range	ARGUS
Product or component type	Occupancy sensor
Load type	Halogen lamp <= 1000 VA Energy saving lamp <= 80 VA Incandescent lamp <= 1000 VA Low voltage halogen lamp with electronic transformer <= 315 VA Low voltage halogen lamp with iron core transformer <= 500 VA Fluorescent lamp <= 250 VA
Complementary
Rated voltage	220…230 V AC 50/60 Hz
Detection angle	360°
Presence detection area	PIR: 360°, 7 x 7 m
Device mounting	Surface
Mounting support	Ceiling
Mounting height	2…3 m
Diameter	120 mm
Depth	26.26 mm
Environment
Electrical shock protection class	Class II
IP degree of protection	IP20
Ambient air temperature for operation	0…40 °C
Standards	EN 55015 EN 61000-3-3 EN 60669-1 EN 60669-2-1 EN 61000-3-2 EN 61547
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.000 cm
Package 1 Width	13.000 cm
Package 1 Length	13.000 cm
Package 1 Weight	180.000 g
Unit Type of Package 2	S04
Number of Units in Package 2	48
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	9.355 kg
Unit Type of Package 3	P12
Number of Units in Package 3	768
Package 3 Height	135.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	163.072 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
