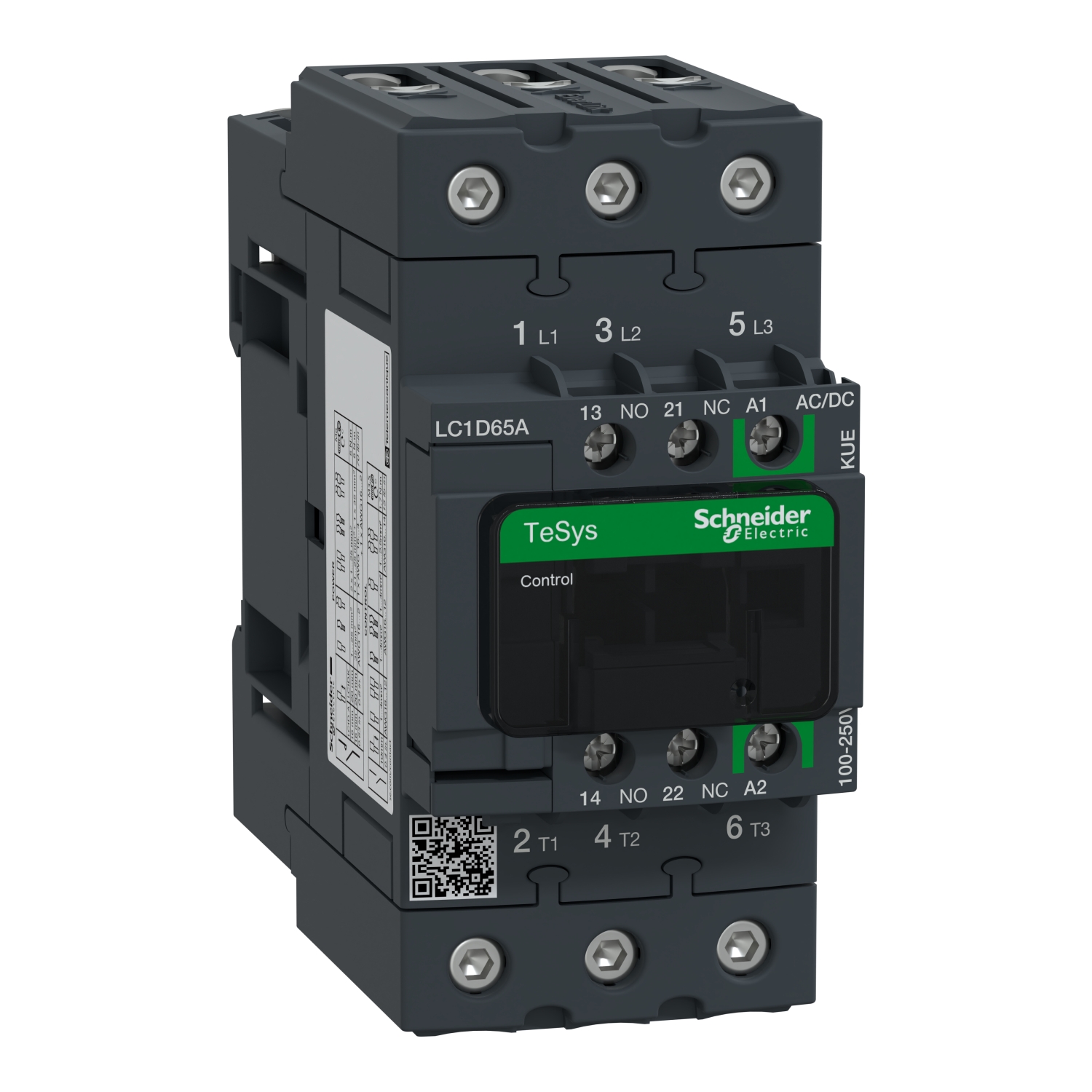

LC1D65AKUE | TeSys D Contactor
Product Overview
The LC1D65AKUE is a TeSys D contactor from Schneider Electric, designed for reliable and efficient switching of electrical loads. It is a 3-pole contactor with a current rating of 65A, suitable for AC-3 applications up to 440V. The contactor features an EverLink connection system for easy and secure wiring.
Key Features
- Type: TeSys D Contactor
- Poles: 3P (3 Poles)
- Rated Current: 65A
- Application Category: AC-3
- Voltage Rating: Up to 440V
- Coil Voltage: 100-250V AC/DC
- Connection Type: EverLink
- Mounting: DIN Rail Mounting
- Mechanical Durability: High mechanical endurance
- Electrical Durability: High electrical endurance
- Environmental Compliance: RoHS compliant
- Safety Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Operational Current (Ie) | 65A |
| Rated Operational Voltage (Ue) | Up to 440V AC |
| Control Voltage (Uc) | 100-250V AC/DC |
| Power Consumption | Low power consumption for energy efficiency |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Applications
The LC1D65AKUE contactor is ideal for a wide range of applications, including:
- Motor control in industrial environments
- HVAC systems
- Pump control
- Compressor control
- Lighting control
- Power distribution systems
Benefits
- High reliability and durability
- Easy installation with EverLink connection system
- Energy-efficient operation
- Compliance with international safety standards
- Compact design for space-saving installation
Support and Documentation
For more information, including datasheets, user manuals, and technical support, visit the official Schneider Electric website or contact their customer service.
