LC1D80AM7 | TeSys D Contactor
Product Description

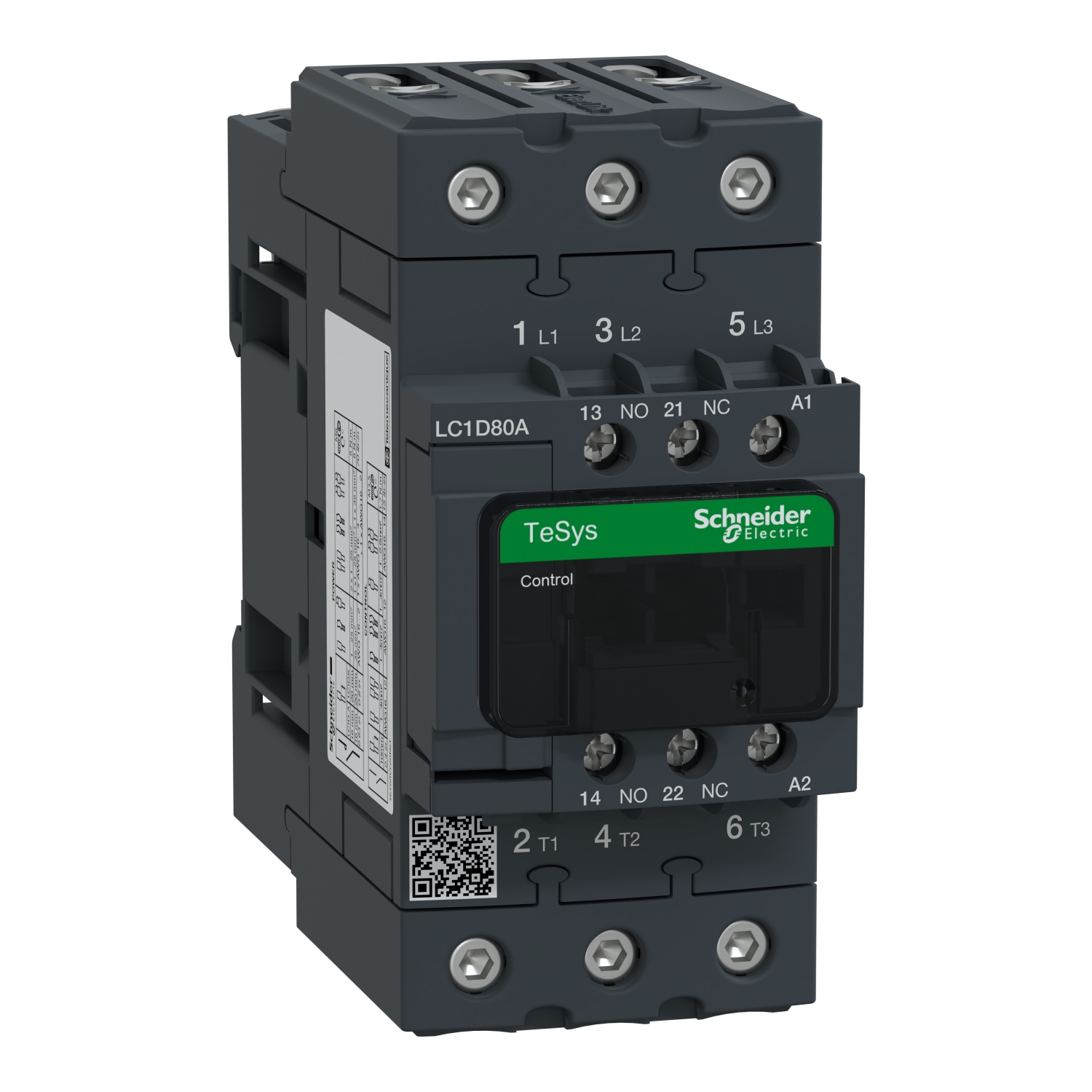

The LC1D80AM7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with a rated current of 66A for AC-3 applications, suitable for voltages up to 440V. The contactor features a 220V AC coil, compatible with both 50Hz and 60Hz power systems.
Key Features
- Type: TeSys D Contactor
- Poles: 3P (3 Poles)
- Rated Current: 66A (AC-3)
- Voltage Rating: Up to 440V
- Coil Voltage: 220V AC
- Frequency: 50/60Hz
- Mounting: Screw Mounting
- Contact Material: Silver Alloy
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations
- Enclosure: IP20 (Finger-safe)
- Standards: IEC 60947-4-1, UL 508, CSA C22.2 No. 14
- Applications: Motor control, HVAC systems, industrial machinery, and more
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Operational Current (Ie) | 66A (AC-3) |
| Rated Operational Voltage (Ue) | Up to 440V AC |
| Coil Voltage | 220V AC |
| Frequency | 50/60Hz |
| Power Consumption | Low power consumption for energy efficiency |
| Mechanical Life | Up to 10 million operations |
| Electrical Life | Up to 1 million operations |
| Enclosure Rating | IP20 |
| Weight | Approx. 0.5 kg |
Applications
The LC1D80AM7 contactor is ideal for a wide range of applications, including:
- Motor control in industrial environments
- HVAC systems
- Pumps and compressors
- Conveyors and material handling systems
- Lighting control
Benefits
- High reliability and durability
- Energy-efficient design
- Easy installation and maintenance
- Compliance with international standards
- Finger-safe design for enhanced safety
Additional Information
For more details, including wiring diagrams and installation instructions, refer to the official Schneider Electric product manual or visit their website.
