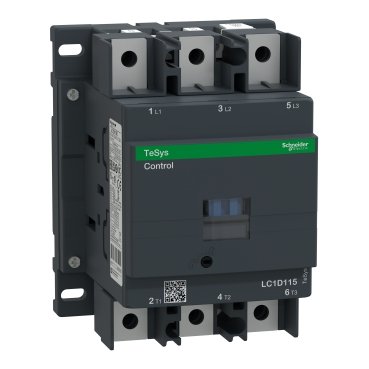

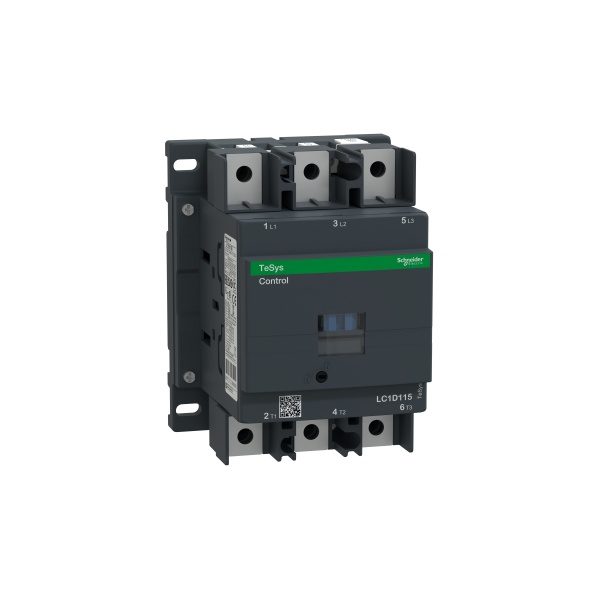

LC1D1156BD | TeSys D Contactor – Schneider Electric

Product Description

The LC1D1156BD is a TeSys D contactor from Schneider Electric, designed for reliable and efficient switching of electrical loads. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications up to 440 V and 115 A. It features a 24 V DC standard coil, making it ideal for a wide range of industrial and commercial applications.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 115 A (AC-3)
• Coil Voltage: 24 V DC
• Contact Configuration: 3 Normally Open (NO)
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Environmental Protection: IP20 (finger-safe protection)
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C

Applications

The LC1D1156BD contactor is widely used in industrial and commercial applications, including:

• Motor control and switching
• HVAC systems
• Pumps and compressors
• Conveyor systems
• Lighting control
• Power distribution

Benefits

• High reliability and durability
• Compact and space-saving design
• Easy installation and maintenance
• Compliance with international standards
• Versatile for various industrial applications
