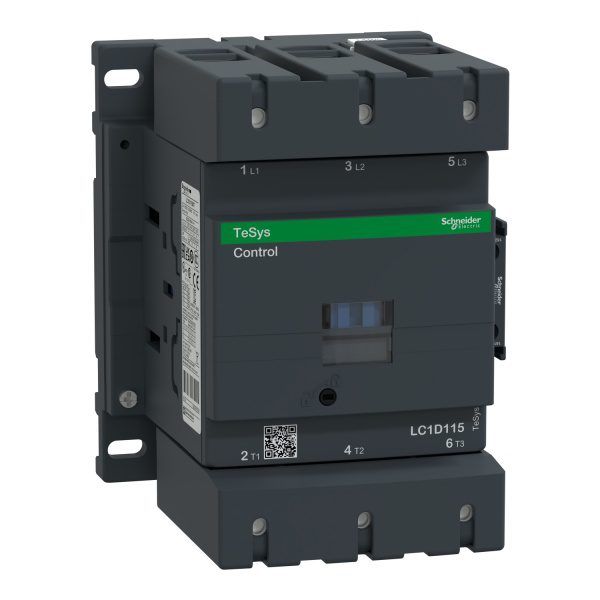

LC1D115B7 | TeSys D Contactor

Product Description

The LC1D115B7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other high-power electrical loads. This contactor is part of the TeSys D range, known for its reliability and durability in industrial applications.

Key Features

• Type: 3P (3 NO) – Three poles with three normally open contacts
• Rated Operational Voltage: ≤ 440 V AC
• Rated Operational Current: 115 A (AC-3)
• Coil Voltage: 24 V AC 50/60 Hz
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant, suitable for use in harsh environments
• Safety Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Dimensions: Compact design for space-saving installation
• Weight: Approximately 1.2 kg

Applications

The LC1D115B7 contactor is ideal for use in various industrial applications, including:

• Motor control in manufacturing plants
• HVAC systems
• Pump and fan control
• Conveyor systems
• Compressors and other heavy machinery

Additional Information

This contactor is designed to ensure reliable performance under demanding conditions. It features a robust construction, ensuring long service life and minimal maintenance requirements. The 24 V AC coil makes it suitable for low-voltage control circuits, enhancing safety and compatibility with various control systems.

Warranty

Schneider Electric offers a standard warranty on this product, covering manufacturing defects. Please refer to the official documentation for detailed warranty terms and conditions.
