LC1D12BD | TeSys D Contactor – Schneider Electric

Product Description

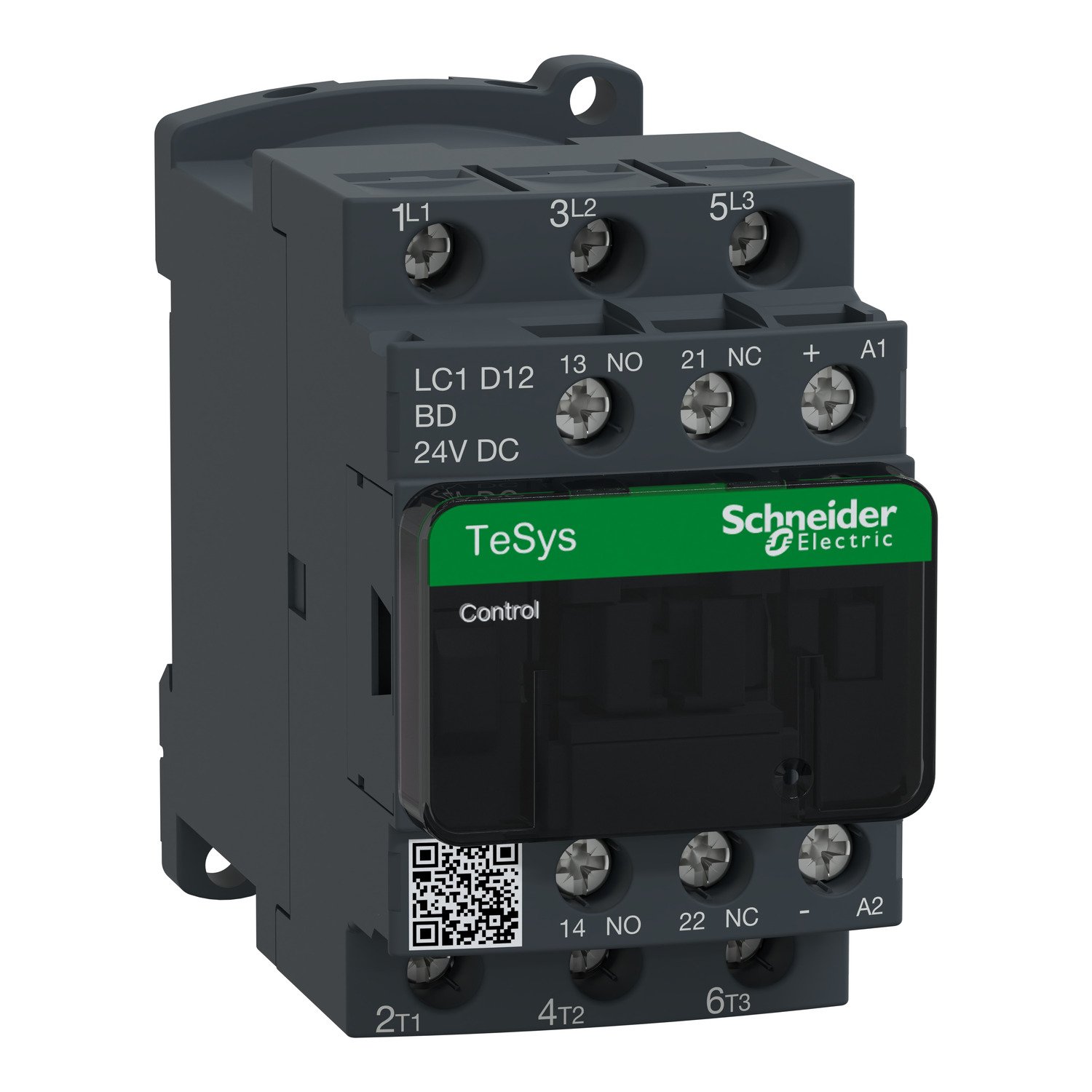

The LC1D12BD is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO)
• Rated Operational Voltage: ≤ 440 V AC
• Rated Operational Current: 12 A (AC-3)
• Coil Voltage: 24 V DC
• Application: AC-3 (Motor Control)
• Mounting: DIN Rail or Screw Mounting
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Contact Material: Silver Alloy
• Terminal Type: Screw Clamp
• Environmental Compliance: RoHS, CE, UL, CSA
• Operating Temperature: -25°C to +60°C
• Protection Degree: IP20 (Finger-safe)

Applications

The LC1D12BD contactor is widely used in industrial and commercial applications, including:

• Motor control in HVAC systems
• Pump and fan control
• Conveyor systems
• Compressors and other heavy-duty equipment

Benefits

• High reliability and durability
• Compact design for space-saving installation
• Easy to install and maintain
• Compatible with a wide range of accessories
• Complies with international standards for safety and performance

Technical Specifications

Accessories

The LC1D12BD contactor is compatible with a range of Schneider Electric accessories, including:

• Auxiliary contacts (e.g., LADN series)
• Thermal overload relays (e.g., LR2D series)
• Mounting brackets and DIN rail adapters

Warranty

Schneider Electric offers a standard warranty of 2 years for the LC1D12BD contactor, subject to terms and conditions.

Contact Information

For more information or to place an order, please contact Schneider Electric or your local distributor.
