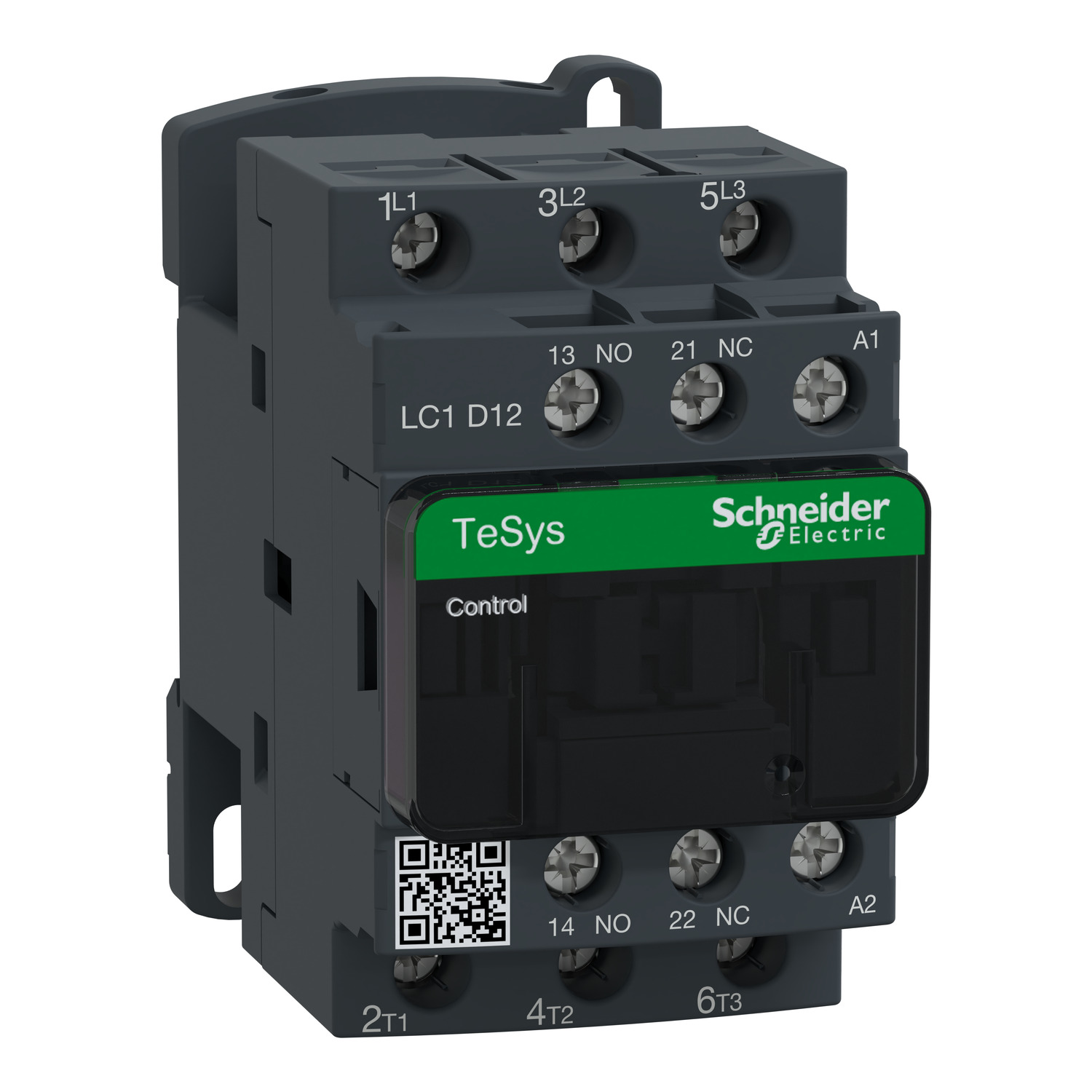

LC1D12E7 | TeSys D Contactor – Schneider Electric
Product Description
The LC1D12E7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.
Key Features
- Type: TeSys D Contactor
- Number of Poles: 3P (3 NO)
- Rated Operational Voltage (Ue): ≤ 440 V AC
- Rated Operational Current (Ie): 12 A
- Coil Voltage: 48 V AC
- Utilization Category: AC-3
- Mounting: Screw mounting
- Terminal Type: Screw terminals
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations
- Ambient Temperature Range: -25°C to +60°C
- Protection Degree: IP20 (finger-safe)
- Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
Applications
The LC1D12E7 contactor is widely used in various industrial and commercial applications, including:
- Motor control
- HVAC systems
- Pumps and compressors
- Conveyors and lifts
- Industrial automation
Dimensions and Weight
- Width: 45 mm
- Height: 80 mm
- Depth: 73 mm
- Weight: Approx. 0.3 kg
Additional Information
For more detailed technical specifications, installation guidelines, and safety information, please refer to the official Schneider Electric product documentation or contact their customer support.
