LC1D12F7 | TeSys D Contactor – Schneider Electric

Product Description

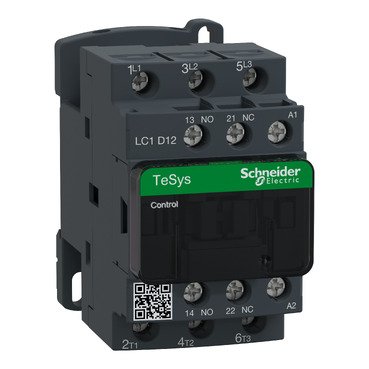

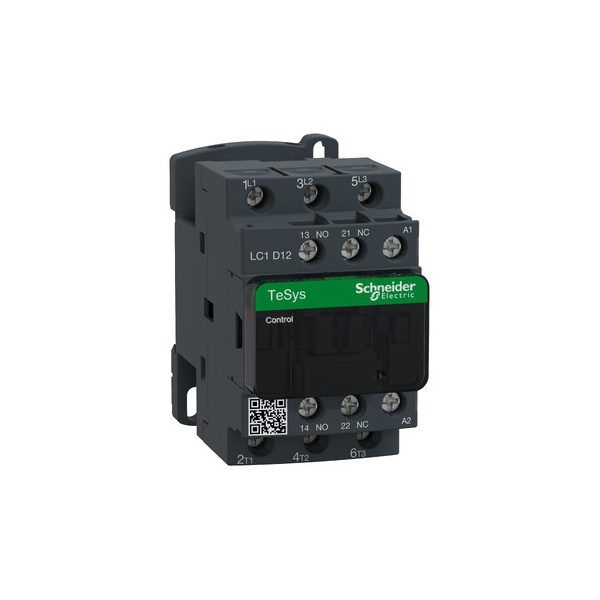

The LC1D12F7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 12 A
• Coil Voltage: 110 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards: Complies with IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 14
• Environmental Conditions: Suitable for use in temperatures ranging from -25°C to +60°C
• Protection Degree: IP20 (finger-safe protection)

Applications

The LC1D12F7 contactor is widely used in various industrial and commercial applications, including:

• Motor control in HVAC systems
• Pump control
• Conveyor systems
• Compressors
• Industrial machinery

Advantages

• High reliability and durability
• Easy installation and maintenance
• Compact design for efficient use of space
• Compatible with a wide range of accessories
• Compliance with international standards for safety and performance

Accessories

The LC1D12F7 contactor can be used with various accessories, including:

• Auxiliary contact blocks
• Mechanical interlocks
• Time delay modules
• Surge suppressors

Technical Support

For technical support, installation guidance, or further information, please contact Schneider Electric’s customer service or visit their official website.
