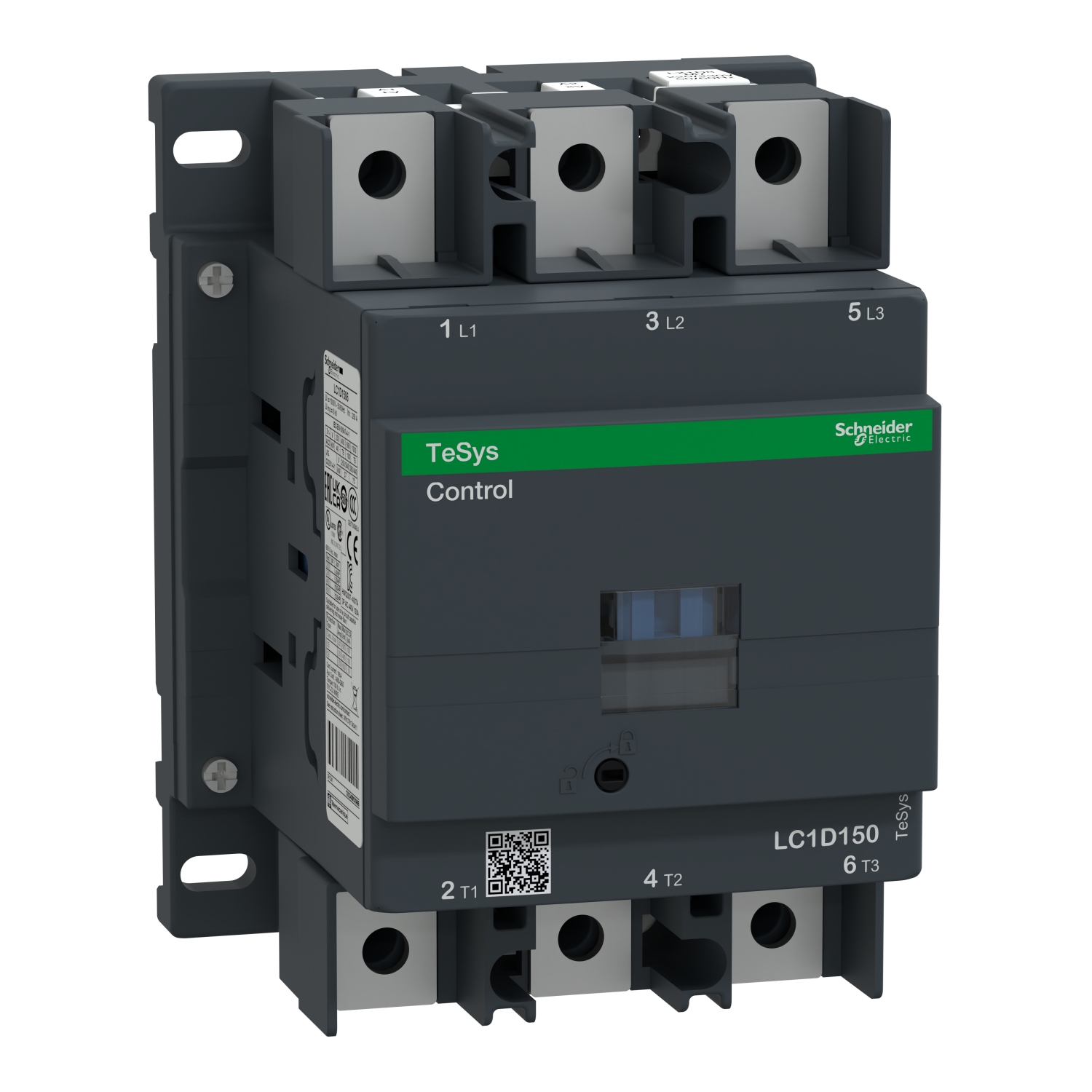

LC1D1506B7 | TeSys D Contactor

Product Description

The LC1D1506B7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling and switching electrical circuits in industrial applications. This contactor is part of the TeSys D range, known for its reliability, durability, and ease of use.

Key Features

• Type: 3P (3 NO) – 3 Pole with 3 Normally Open contacts
• Rated Operational Current (Ie): 150 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Coil Voltage: 24 V AC 50/60 Hz
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting on DIN rail
• Terminal Type: Screw terminals for secure connections
• Environmental Compliance: RoHS compliant, meets international standards
• Dimensions: Compact design for space-saving installation
• Accessories: Compatible with auxiliary contacts, timers, and other TeSys D accessories

Applications

The LC1D1506B7 contactor is suitable for a wide range of industrial applications, including:

• Motor control and switching
• HVAC systems
• Pump and fan control
• Industrial automation
• Power distribution systems

Benefits

• High performance and reliability
• Easy installation and maintenance
• Compatible with a wide range of accessories
• Designed for demanding industrial environments

Technical Specifications

Additional Information

For more details, including wiring diagrams, installation instructions, and technical support, visit the official Schneider Electric website.
