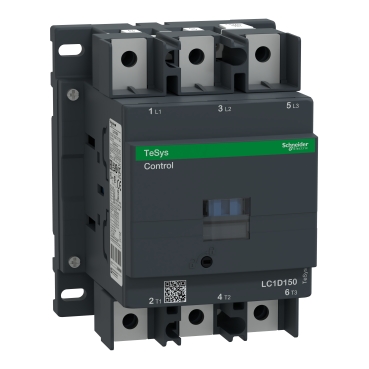

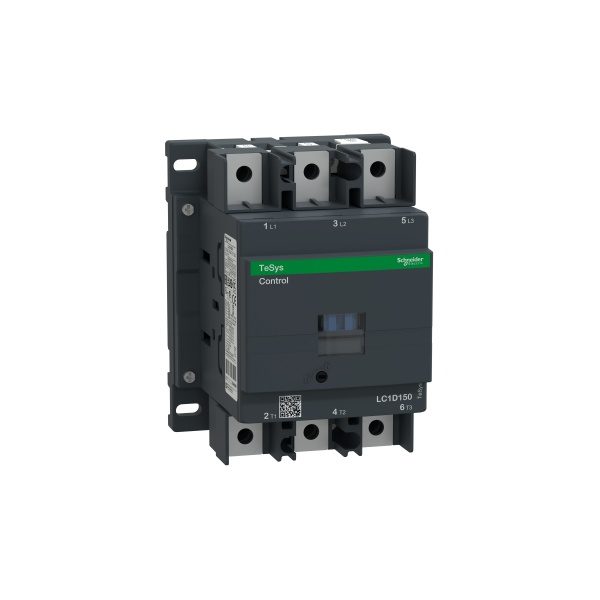

LC1D1506BD | TeSys D Contactor – Schneider Electric

Product Description

The LC1D1506BD is a TeSys D contactor from Schneider Electric, designed for reliable and efficient switching of electrical loads. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other high-power loads in industrial and commercial environments.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 150 A
• Coil Voltage: 24 V DC
• Application Category: AC-3 (Squirrel cage motor control)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC 60947-4-1, IEC 60947-5-1
• Dimensions: Compact design for space-saving installation
• Weight: Approximately 1.2 kg

Applications

The LC1D1506BD contactor is widely used in various applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pump and fan control
• Compressor control
• Conveyor systems

Benefits

• High reliability and durability
• Easy installation and maintenance
• Compatible with a wide range of accessories
• Energy-efficient design
• Safe and compliant with international standards

Technical Support

For technical support, installation guidance, or further information, please contact Schneider Electric’s customer service or visit their official website.
