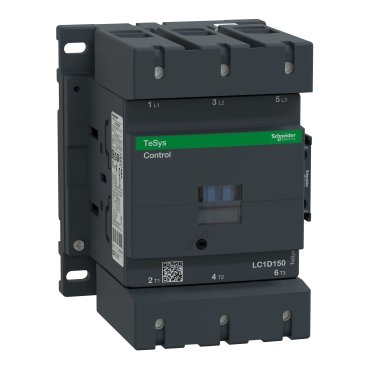

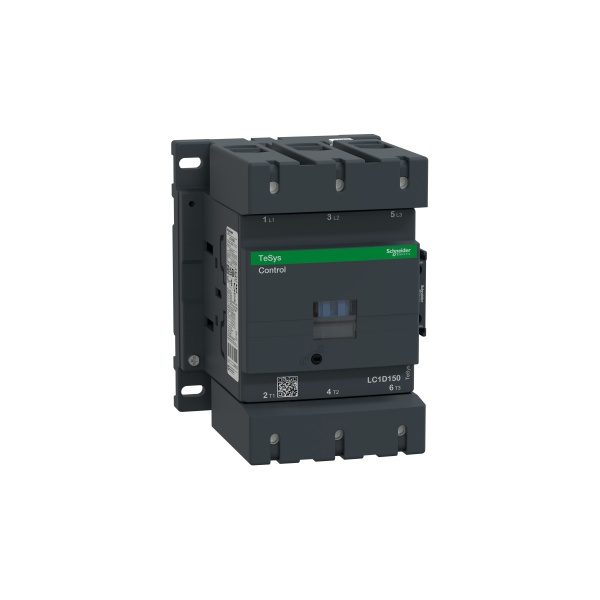

LC1D150BD | TeSys D Contactor

Product Description

The LC1D150BD is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other heavy-duty applications. This contactor features three normally open (NO) poles and is rated for AC-3 applications up to 440 V and 150 A. It is equipped with a 24 V DC standard coil, making it suitable for a wide range of industrial and commercial applications.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO – Normally Open)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 150 A
• Utilization Category: AC-3
• Coil Voltage: 24 V DC
• Mounting: Screw mounting or snap-on mounting
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Dimensions: Compact design for space-saving installation
• Accessories: Compatible with auxiliary contacts, timers, and mechanical interlocks

Applications

The LC1D150BD contactor is ideal for use in:

• Motor control in industrial machinery
• HVAC systems
• Pump and fan control
• Compressors and conveyors
• Power distribution systems

Benefits

• High reliability and durability for demanding applications
• Easy installation and maintenance
• Compatibility with a wide range of accessories
• Energy-efficient design
• Compliance with international standards for safety and performance

Technical Specifications

Warranty

Schneider Electric offers a standard warranty on this product. Please refer to the manufacturer’s warranty policy for detailed terms and conditions.
