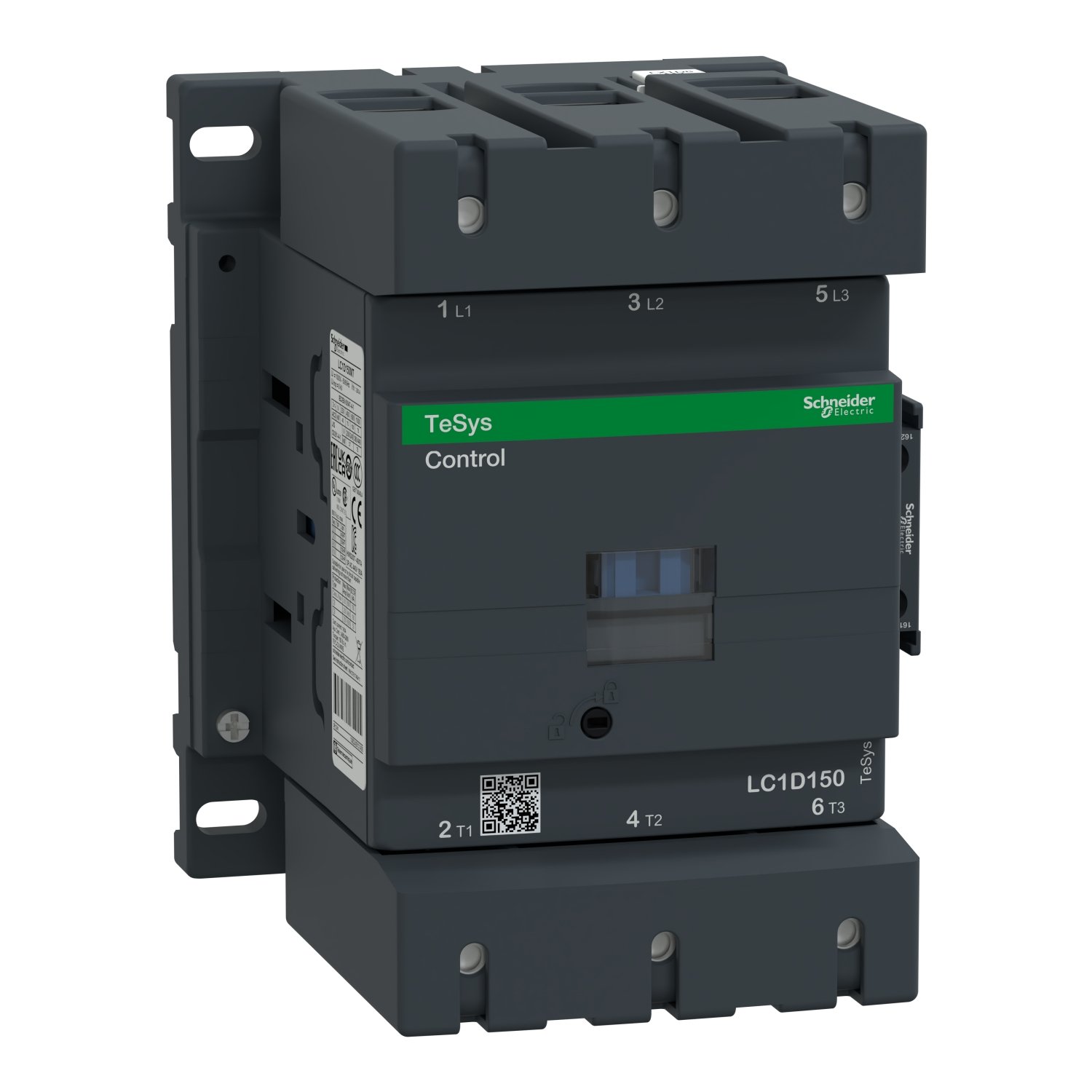

LC1D150M7 | TeSys D Contactor – Schneider Electric

Product Overview

The LC1D150M7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is suitable for a wide range of industrial applications, offering robust performance and durability.

Key Features

• Type: 3P (3 NO) – 3 Pole, 3 Normally Open contacts
• Rated Operational Current (Ie): 150 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Coil Voltage: 220 V AC 50/60 Hz
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting on 35 mm DIN rail
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards Compliance: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Environmental Conditions: Suitable for operation in temperatures ranging from -25°C to +60°C
• Protection Degree: IP20 (finger-safe protection)

Applications

The LC1D150M7 contactor is ideal for controlling motors, pumps, compressors, and other industrial equipment. It is commonly used in:

• Manufacturing plants
• HVAC systems
• Material handling systems
• Power distribution systems

Additional Features

• High resistance to electrical and mechanical wear
• Easy installation and maintenance
• Compatible with auxiliary contact blocks and mechanical interlocks
• Reliable performance in harsh environments

Warranty and Support

Schneider Electric offers a standard warranty on the LC1D150M7 contactor. For technical support and warranty claims, contact Schneider Electric’s customer service or an authorized service center.
