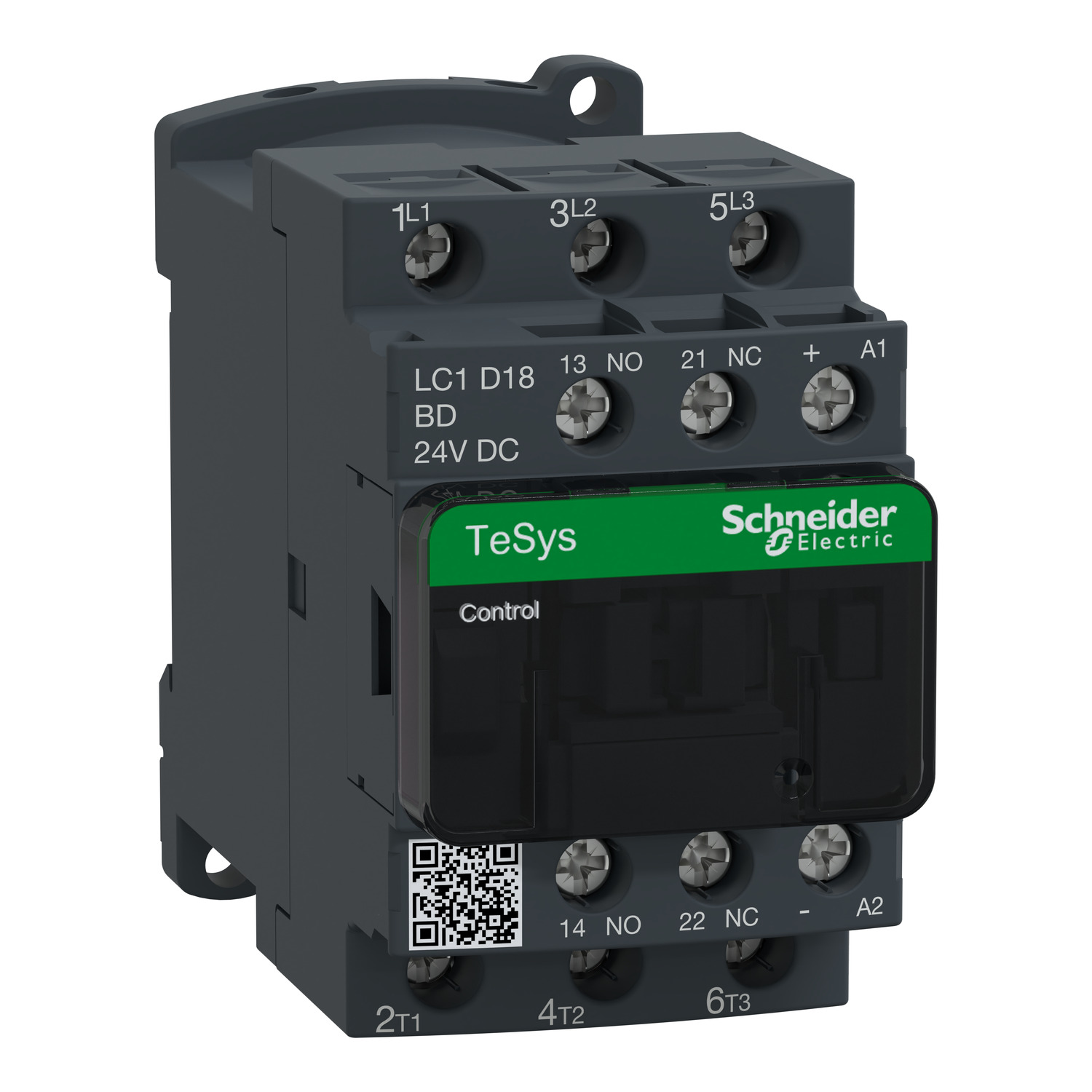

LC1D18BD | TeSys D Contactor – Schneider Electric

Product Overview

The LC1D18BD is a TeSys D contactor from Schneider Electric, designed for reliable and efficient switching of electrical loads. It is suitable for a wide range of industrial applications, offering robust performance and durability.

Key Features

• Type: Contactor
• Number of Poles: 3P (3 Normally Open Contacts)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 18 A (AC-3)
• Coil Voltage: 24 V DC
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations (AC-3)
• Mounting: Snap-on mounting, DIN rail compatible
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant, suitable for use in harsh environments
• Safety Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1

Applications

The LC1D18BD contactor is ideal for controlling three-phase motors, heating systems, and other industrial loads. It is commonly used in:

• Motor control centers
• HVAC systems
• Pump and fan control
• Industrial automation

Dimensions and Weight

• Width: 45 mm
• Height: 78 mm
• Depth: 73 mm
• Weight: Approx. 0.3 kg

Additional Information

For more details, including wiring diagrams and technical specifications, refer to the official Schneider Electric product documentation or contact their support team.
