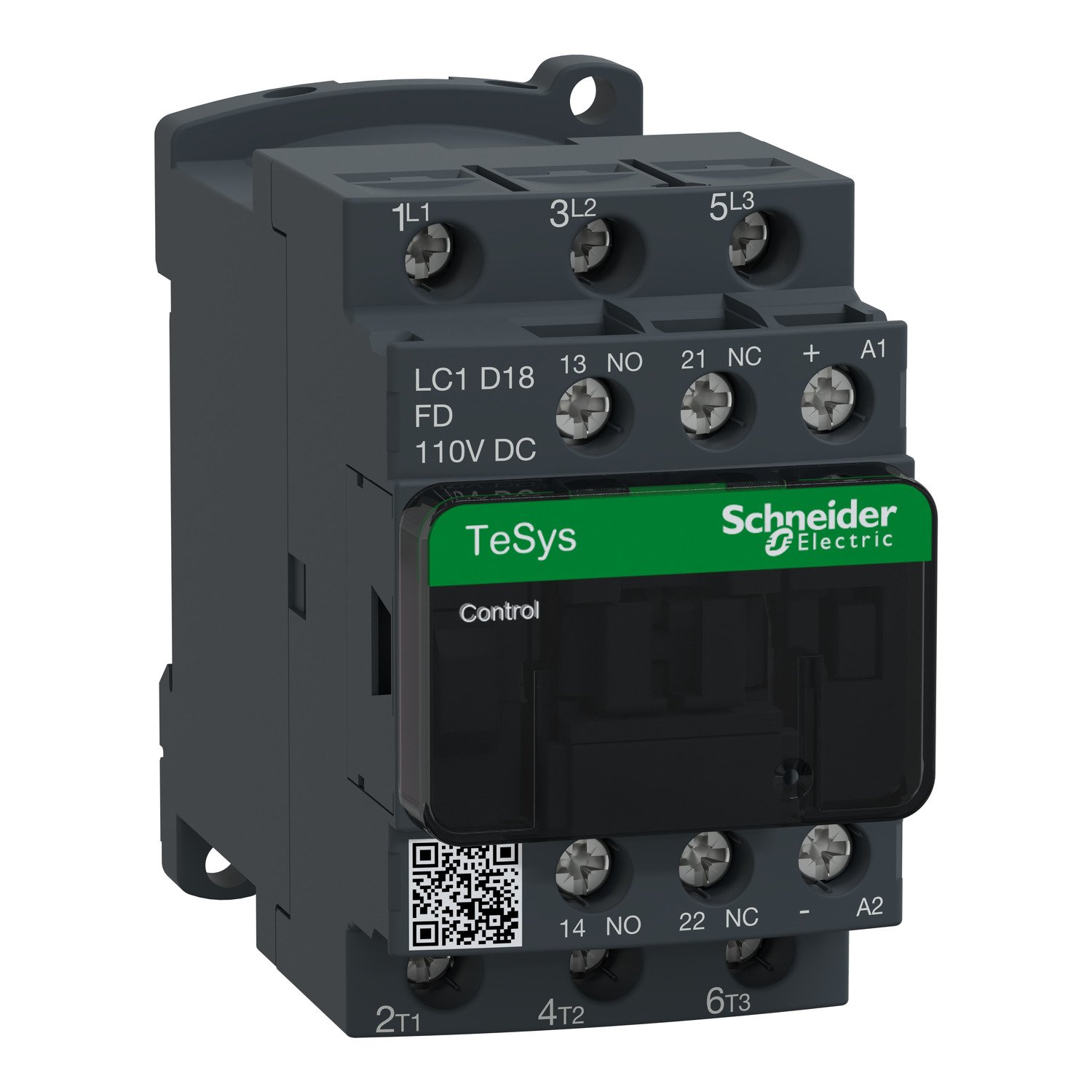

LC1D18FD | TeSys D Contactor – Schneider Electric

Product Description

The LC1D18FD is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.

Key Features

• Type: TeSys D Contactor
• Number of Poles: 3P (3 NO)
• Rated Operational Current (Ie): 18 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Coil Voltage: 110 V DC
• Application Category: AC-3 (Squirrel cage motors: start, stop)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1D18FD contactor is widely used in various industrial applications, including:

• Motor control
• HVAC systems
• Pumps and compressors
• Conveyors and material handling systems
• Industrial automation

Technical Specifications

Additional Information

For more details, including wiring diagrams and installation instructions, please refer to the official Schneider Electric product documentation or contact their customer support.
