LC1D25BD | TeSys D Contactor – Schneider Electric

Product Description

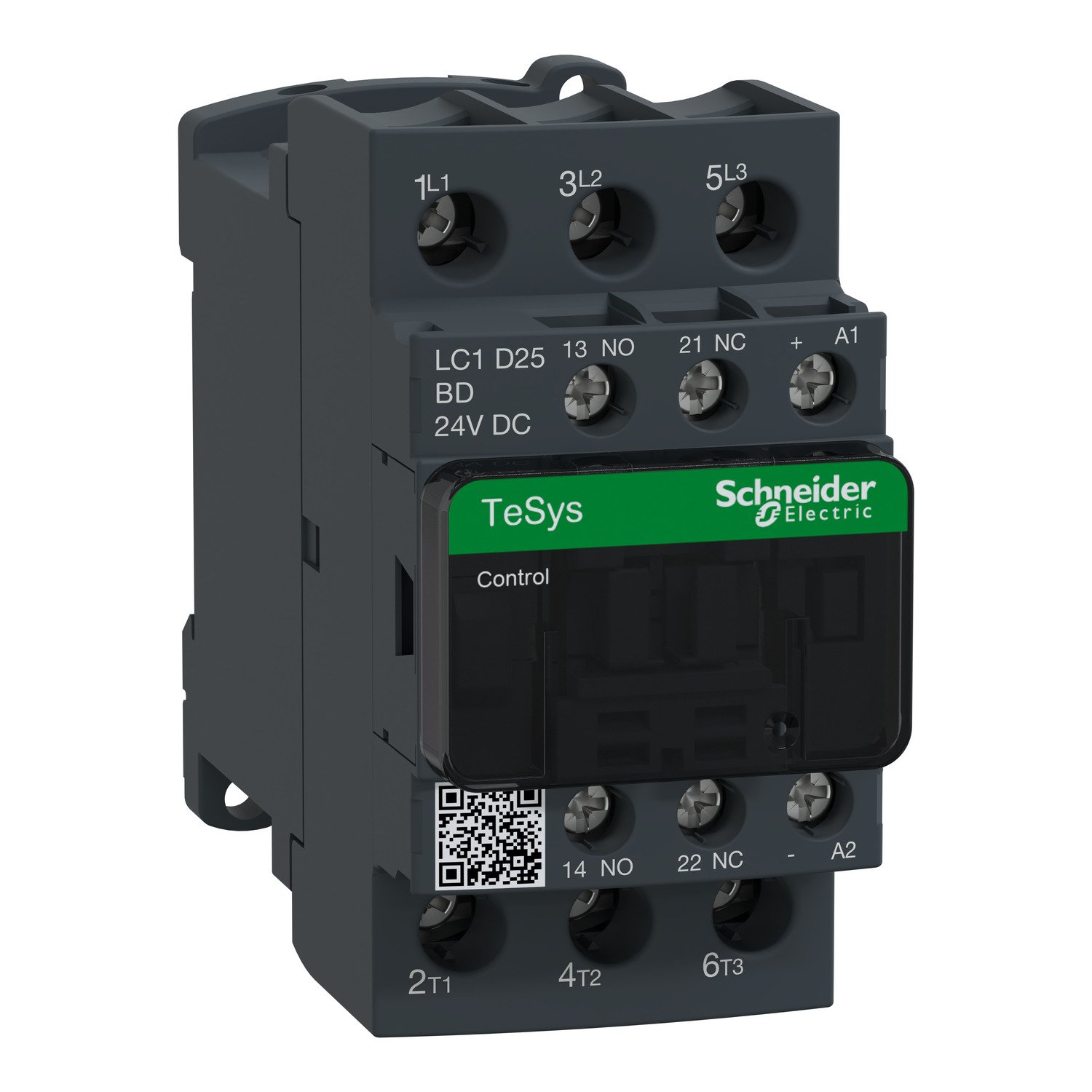

The LC1D25BD is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 25 A
• Coil Voltage: 24 V DC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Ambient Temperature Range: -25°C to +60°C
• Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Dimensions: Compact design for space-saving installation
• Accessories: Compatible with auxiliary contacts, timers, and mechanical interlocks

Applications

The LC1D25BD contactor is widely used in industrial and commercial applications, including:

• Motor control in HVAC systems
• Pump and fan control
• Conveyor systems
• Compressors and other heavy-duty equipment

Benefits

• High reliability and durability
• Compact and modular design
• Easy installation and maintenance
• Compatible with a wide range of accessories
• Complies with international standards for safety and performance
