LC1D25E7 | TeSys D Contactor – Schneider Electric

Product Description

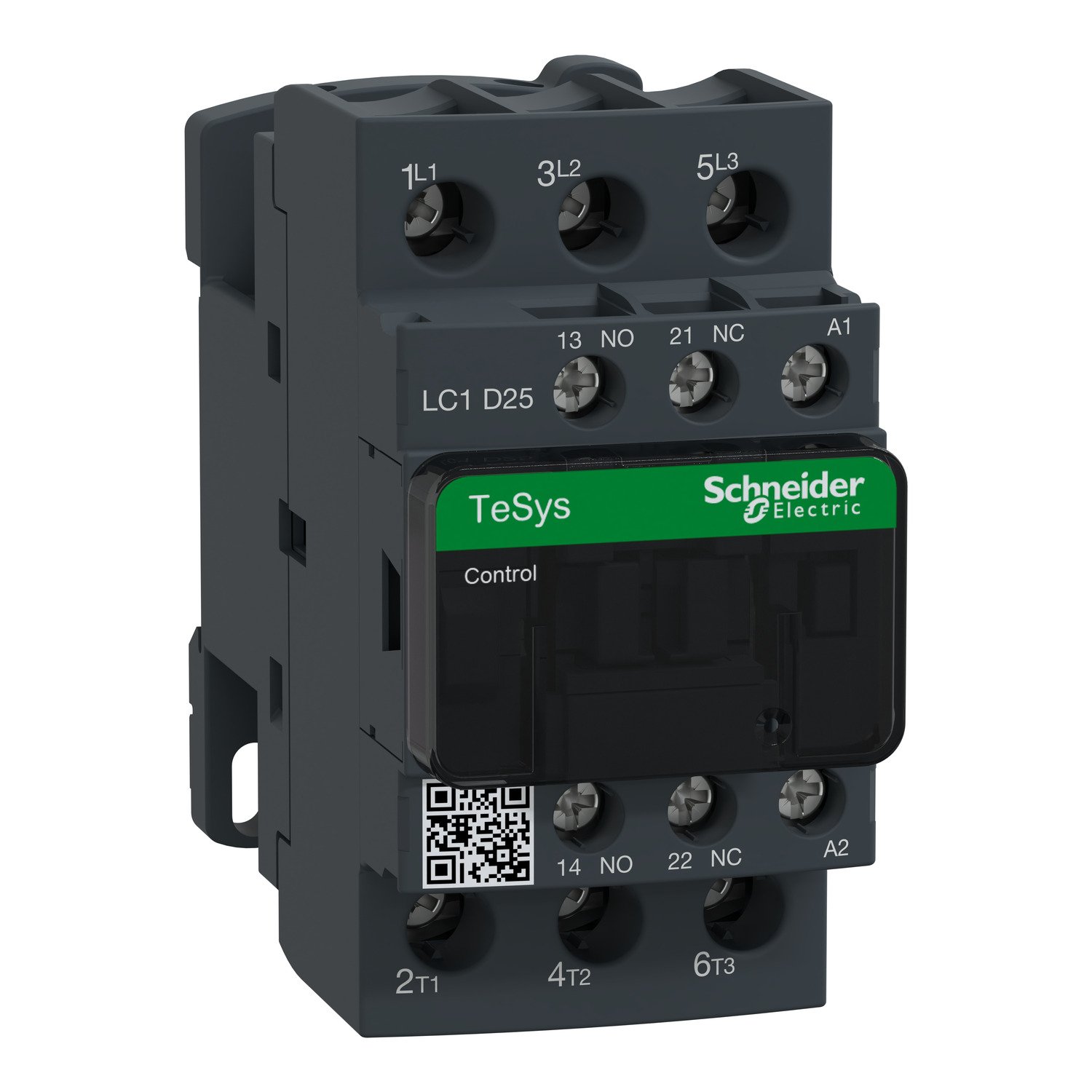

The LC1D25E7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other electrical loads. This contactor is part of the TeSys D range, known for its reliability and durability in industrial applications.

Key Features

• Type: 3P (3 NO) – 3 Pole, 3 Normally Open contacts
• Rated Operational Current (Ie): 25 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Coil Voltage: 48 V AC
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting on DIN rail
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards: Complies with IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 14
• Environmental Compliance: RoHS compliant

Applications

The LC1D25E7 contactor is suitable for a wide range of applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pump control
• Conveyor systems
• Lighting control

Additional Information

The LC1D25E7 contactor is designed for easy installation and maintenance. It features a robust construction that ensures reliable performance even in harsh environments. The contactor is compatible with a wide range of accessories, including auxiliary contacts, thermal overload relays, and mechanical interlocks, making it a versatile solution for various control applications.

Technical Support

For technical support, installation guidance, or further information, please contact Schneider Electric’s customer service or visit their official website.
