LC1D25FD | TeSys D Contactor – Schneider Electric

Product Description

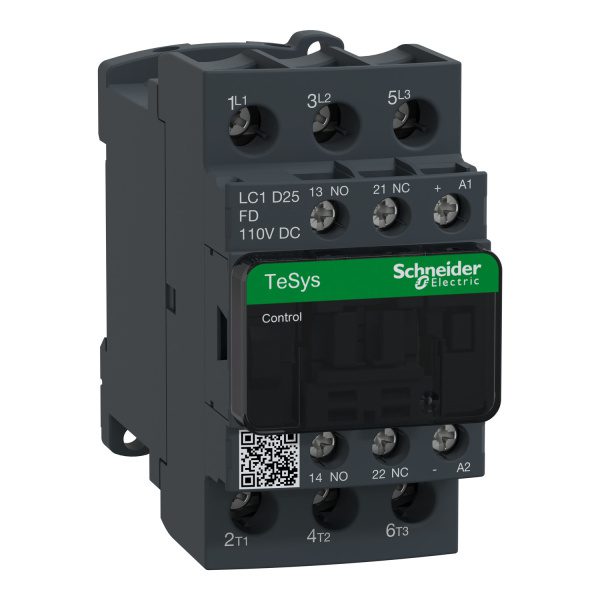

The LC1D25FD is a TeSys D contactor from Schneider Electric, designed for reliable and efficient switching of electrical loads. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO)
• Rated Operational Current (Ie): 25 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Coil Voltage: 110 V DC
• Application Category: AC-3 (Squirrel cage motors: start, stop)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Ambient Temperature Range: -25°C to +60°C
• Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Dimensions: Compact design for space-saving installation
• Weight: Approximately 0.5 kg

Applications

The LC1D25FD contactor is widely used in various industrial and commercial applications, including:

• Motor control in HVAC systems
• Pump and fan control
• Conveyor systems
• Compressors and other heavy-duty equipment

Additional Information

This contactor is part of Schneider Electric’s TeSys D range, known for its robustness, reliability, and ease of installation. It is designed to meet the demanding requirements of modern industrial environments, ensuring long service life and minimal maintenance.

Warranty

Schneider Electric offers a standard warranty on this product, covering manufacturing defects and ensuring customer satisfaction.
