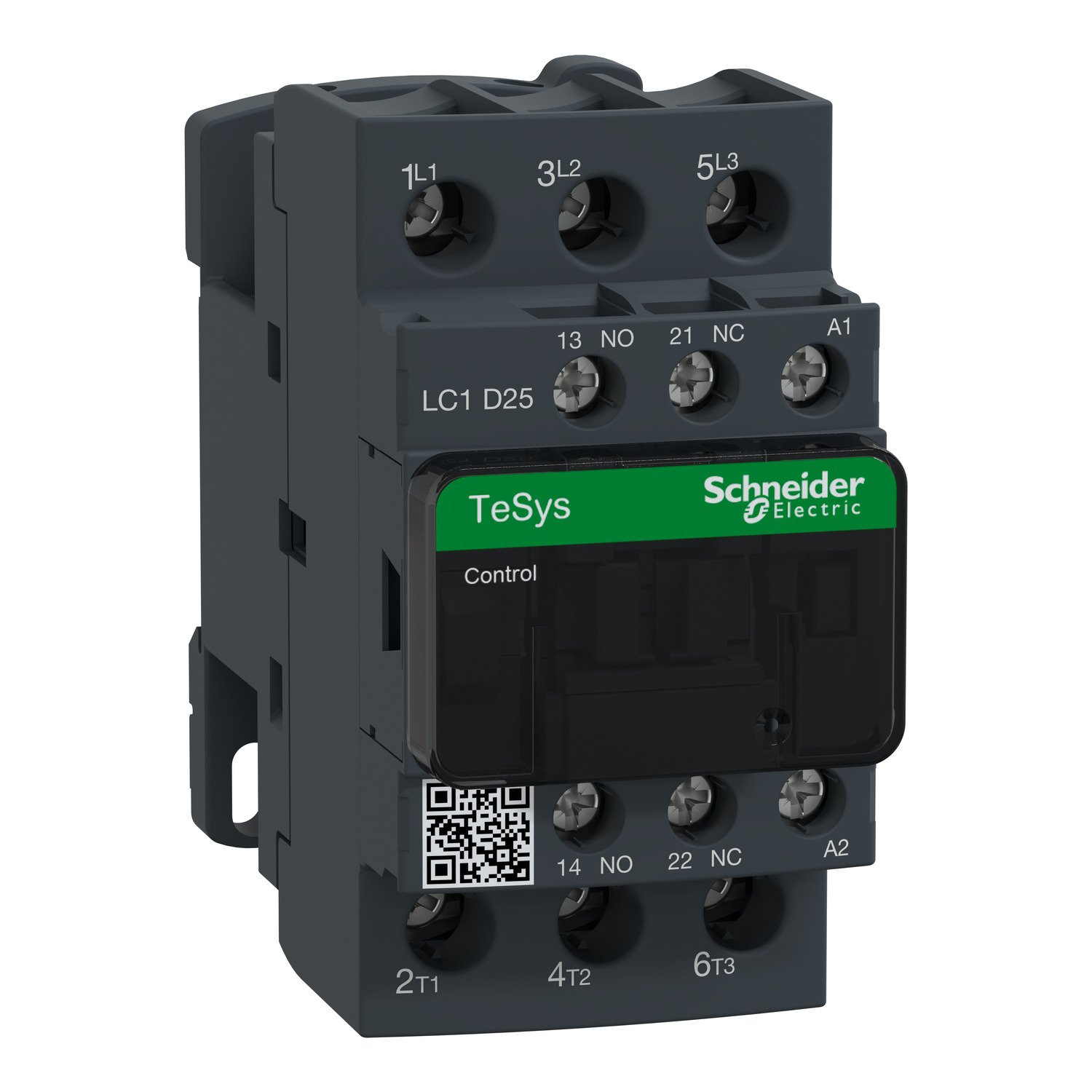

LC1D25N7 | TeSys D Contactor – Schneider Electric
Product Description
The LC1D25N7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.
Key Features
- Type: TeSys D Contactor
- Poles: 3P (3 NO)
- Rated Operational Current (Ie): 25 A
- Rated Operational Voltage (Ue): ≤ 440 V
- Coil Voltage: 415 V AC
- Application Category: AC-3 (Squirrel cage motors: starting, switching off)
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations
- Mounting: Screw mounting or snap-on mounting
- Terminal Type: Screw terminals
- Environmental Compliance: RoHS compliant
- Standards: IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No. 14
Applications
The LC1D25N7 contactor is widely used in various industrial and commercial applications, including:
- Motor control
- HVAC systems
- Pumps and compressors
- Conveyors and elevators
- Industrial automation
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Thermal Current (Ith) | 25 A |
| Rated Operational Power (P) | 11 kW at 400 V AC |
| Coil Power Consumption | 8 VA |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 0.35 kg |
Dimensions
Dimensions (W x H x D): 45 mm x 80 mm x 78 mm
Additional Information
For more details, refer to the official Schneider Electric product documentation or contact their customer support.
