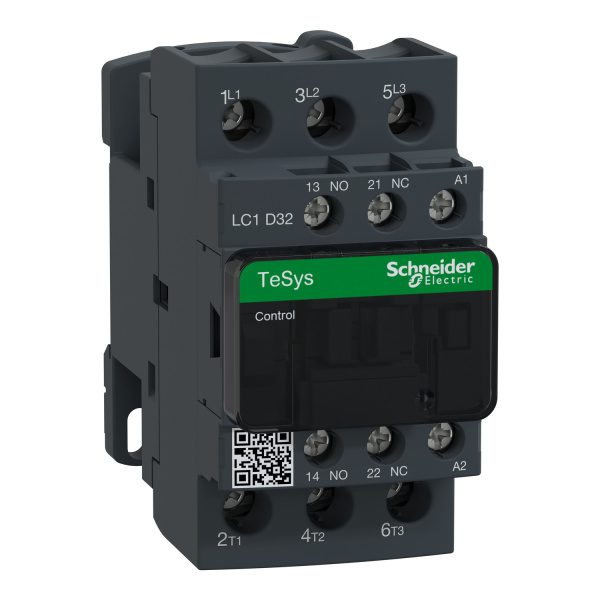

LC1D32B7 | TeSys D Contactor – Schneider Electric
Product Description
The LC1D32B7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.
Key Features
- Type: TeSys D Contactor
- Poles: 3P (3 NO)
- Rated Operational Voltage (Ue): ≤ 440 V AC
- Rated Operational Current (Ie): 32 A
- Coil Voltage: 24 V AC
- Application Category: AC-3 (Squirrel cage motors: starting, switching off)
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations
- Mounting: Screw mounting or snap-on mounting
- Terminal Type: Screw terminals
- Environmental Compliance: RoHS compliant
- Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
Applications
The LC1D32B7 contactor is widely used in various industrial and commercial applications, including:
- Motor control
- HVAC systems
- Pumps and compressors
- Conveyors and elevators
- Industrial machinery
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Thermal Current (Ith) | 32 A |
| Rated Operational Power (P) | 15 kW at 400 V AC |
| Coil Power Consumption | 8 VA |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 0.35 kg |
Dimensions
For detailed dimensions, refer to the product datasheet provided by Schneider Electric.
Additional Information
For more detailed technical information, installation guidelines, and safety instructions, please refer to the official Schneider Electric documentation or contact their customer support.
