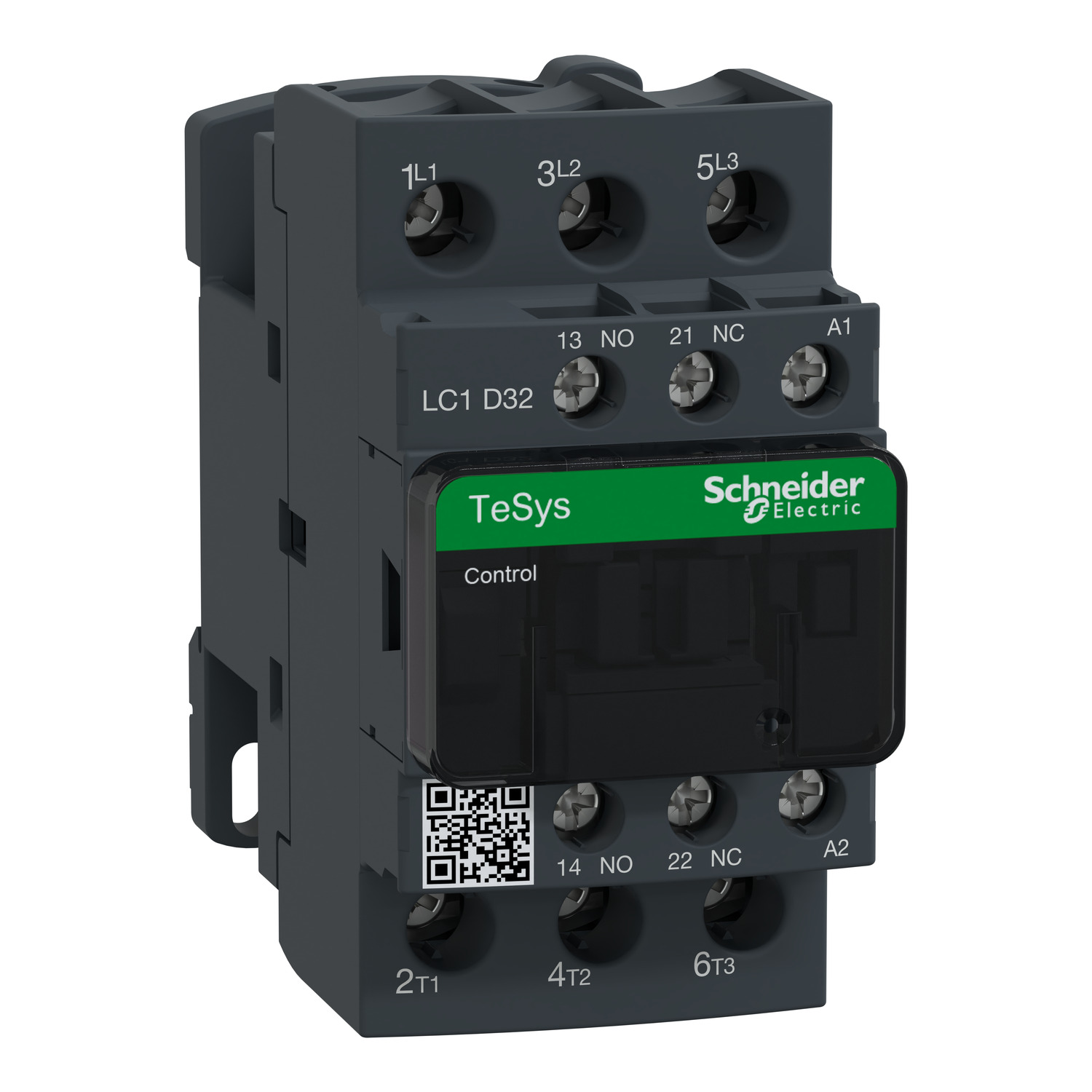

LC1D32U7 | TeSys D Contactor

Product Description

The LC1D32U7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other electrical loads. This contactor is part of the TeSys D range, known for its reliability and durability in industrial applications.

Key Features

• Type: 3P (3 NO) – 3 Pole, 3 Normally Open contacts
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 32 A (AC-3)
• Coil Voltage: 240 V AC, 50/60 Hz
• Application Category: AC-3 (Squirrel cage motors: start, stop)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting on 35 mm DIN rail
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant, suitable for use in harsh environments
• Safety Standards: Complies with IEC/EN 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 14 standards

Applications

The LC1D32U7 contactor is ideal for use in various industrial and commercial applications, including:

• Motor control in HVAC systems
• Pump and fan control
• Conveyor systems
• Compressors and other heavy-duty machinery

Dimensions and Weight

• Width: 45 mm
• Height: 80 mm
• Depth: 73 mm
• Weight: Approximately 0.35 kg

Accessories

Compatible with a wide range of Schneider Electric accessories, including:

• Auxiliary contacts (e.g., LADN series)
• Thermal overload relays (e.g., LR2D series)
• Mechanical interlocks
• Time delay modules

Warranty

Schneider Electric offers a standard warranty on the LC1D32U7 contactor, subject to terms and conditions. Please refer to the official documentation for details.
