LC1D38BD | TeSys D Contactor

Product Overview

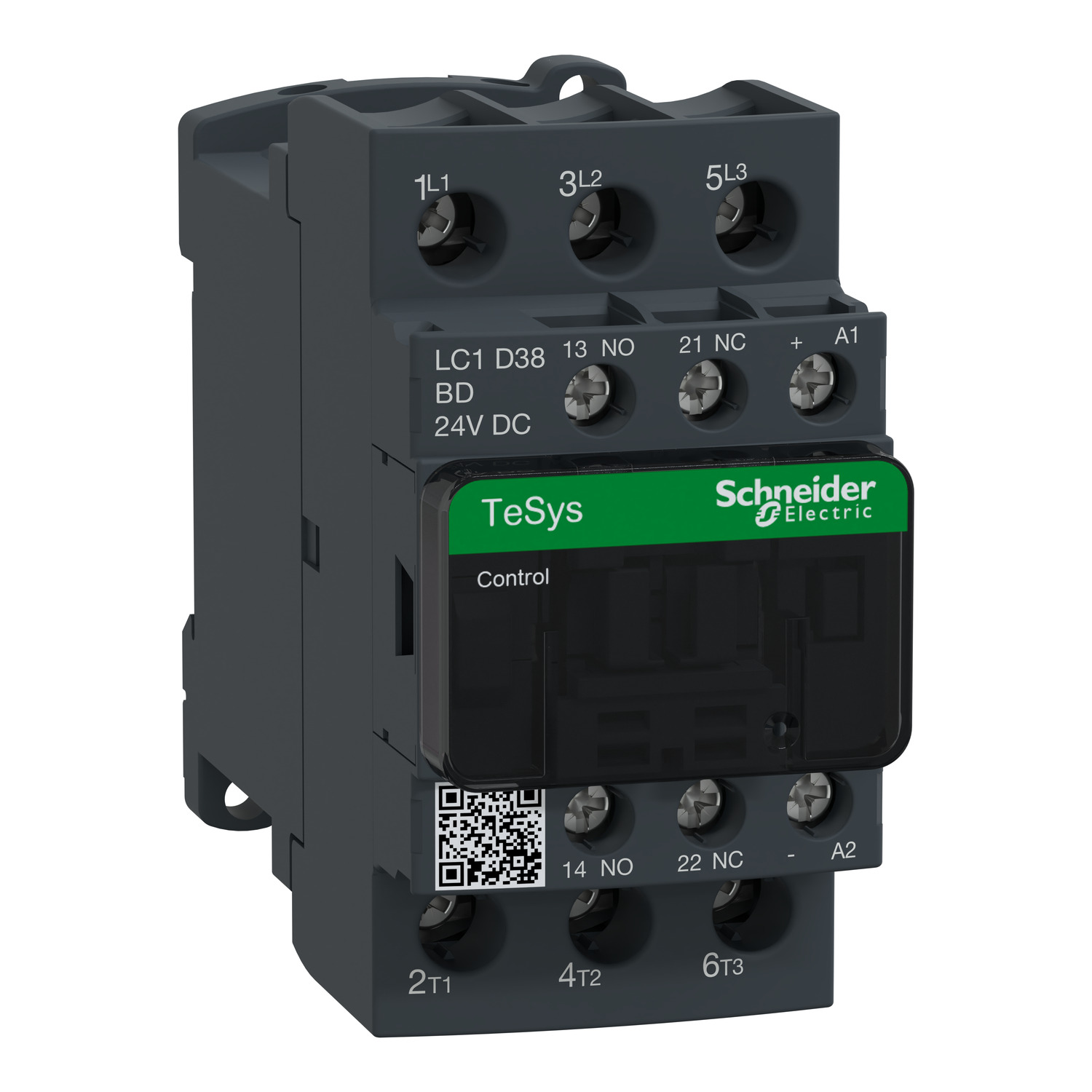

The LC1D38BD is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other electrical loads. This contactor is part of the TeSys D range, known for its reliability and performance in industrial applications.

Key Features

• Type: 3P (3 NO) – 3 Pole, 3 Normally Open contacts
• Rated Operational Current (Ie): 38 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Utilization Category: AC-3 (Squirrel cage motor: start, stop)
• Coil Voltage: 24 V DC
• Coil Power Consumption: Low power consumption for energy efficiency
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Snap-on mounting for easy installation
• Terminal Type: Screw terminals for secure connections
• Environmental Compliance: RoHS compliant, meets international standards
• Safety Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1D38BD contactor is suitable for a wide range of applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pump and fan control
• Compressors and conveyors
• General-purpose switching

Dimensions and Weight

• Dimensions (H x W x D): 90 mm x 45 mm x 80 mm
• Weight: Approximately 0.5 kg

Accessories

Compatible with a wide range of Schneider Electric accessories, including:

• Auxiliary contacts (e.g., LADN, LADN2)
• Mechanical interlocks (e.g., LA9D)
• Time delay modules (e.g., LADT)
• Surge suppressors (e.g., LA9S)

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.

Contact Information

For more information or to place an order, please contact Schneider Electric or your local distributor.
