LC1D38N7 | TeSys D Contactor

Product Description

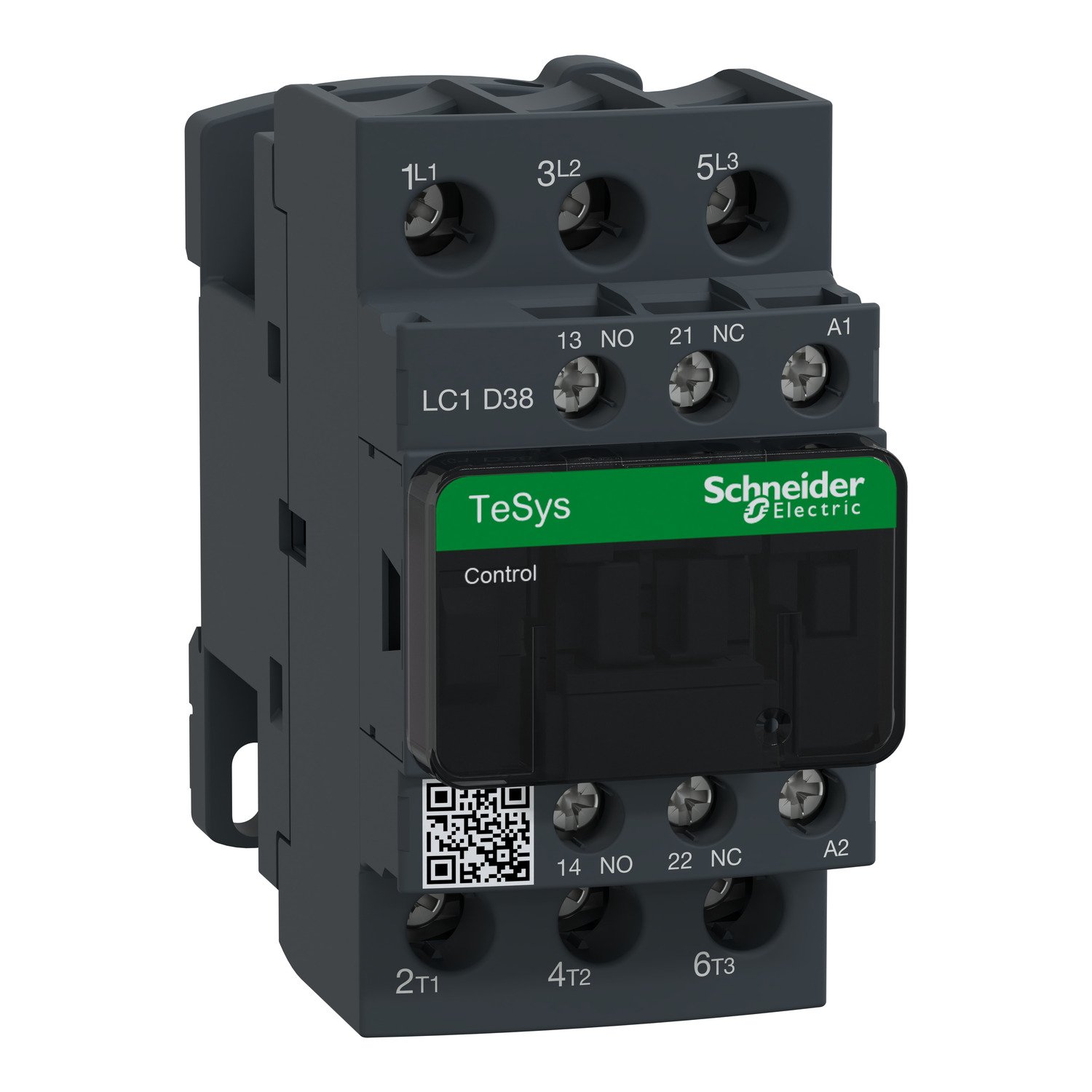

The LC1D38N7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other electrical loads. This contactor is part of the TeSys D range, known for its reliability and performance in industrial applications.

Key Features

• Type: 3P (3 NO) – 3 Pole with 3 Normally Open contacts
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 38 A at AC-3 duty
• Coil Voltage: 415 V AC, 50/60 Hz
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations at AC-3
• Mounting: Screw mounting or snap-on mounting on 35 mm DIN rail
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant, suitable for use in harsh environments
• Safety Standards: Complies with IEC/EN 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 14

Applications

The LC1D38N7 contactor is ideal for use in various industrial applications, including:

• Motor control in HVAC systems
• Pump and fan control
• Conveyor systems
• Compressors and other heavy-duty machinery

Dimensions and Weight

• Width: 55 mm
• Height: 98 mm
• Depth: 78 mm
• Weight: Approximately 0.5 kg

Accessories

Compatible with a wide range of Schneider Electric accessories, including:

• Auxiliary contacts (e.g., LADN series)
• Thermal overload relays (e.g., LR2D series)
• Mechanical interlocks
• Time delay modules

Warranty

Schneider Electric offers a standard warranty period of 24 months from the date of purchase, subject to terms and conditions.
