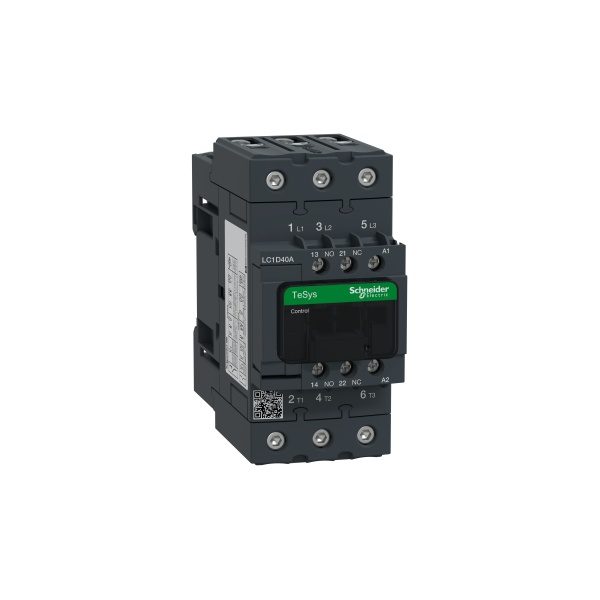

LC1D40AB7 | TeSys D Contactor

Product Description

The LC1D40AB7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other electrical loads. This contactor is part of the TeSys D range, known for its reliability and durability in industrial applications.

Key Features

• Type: 3P (3 NO) – 3 Pole, 3 Normally Open contacts
• Rated Operational Current (Ie): 40 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Utilization Category: AC-3 (Squirrel cage motor: start, stop)
• Coil Voltage: 24 V AC 50/60 Hz
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting on DIN rail
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Ambient Temperature: -25°C to +60°C
• Protection Degree: IP20 (finger-safe protection)

Applications

The LC1D40AB7 contactor is suitable for a wide range of applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pump control
• Conveyor systems
• Lighting control

Additional Information

This contactor is designed for easy installation and maintenance. It is compatible with a variety of auxiliary contact blocks, thermal overload relays, and other accessories from the TeSys D range, allowing for flexible and modular system configurations.

Warranty

Schneider Electric offers a standard warranty on this product, covering manufacturing defects. Please refer to the official documentation for detailed warranty terms and conditions.
