LC1D40AM7 | TeSys D Contactor

Product Description

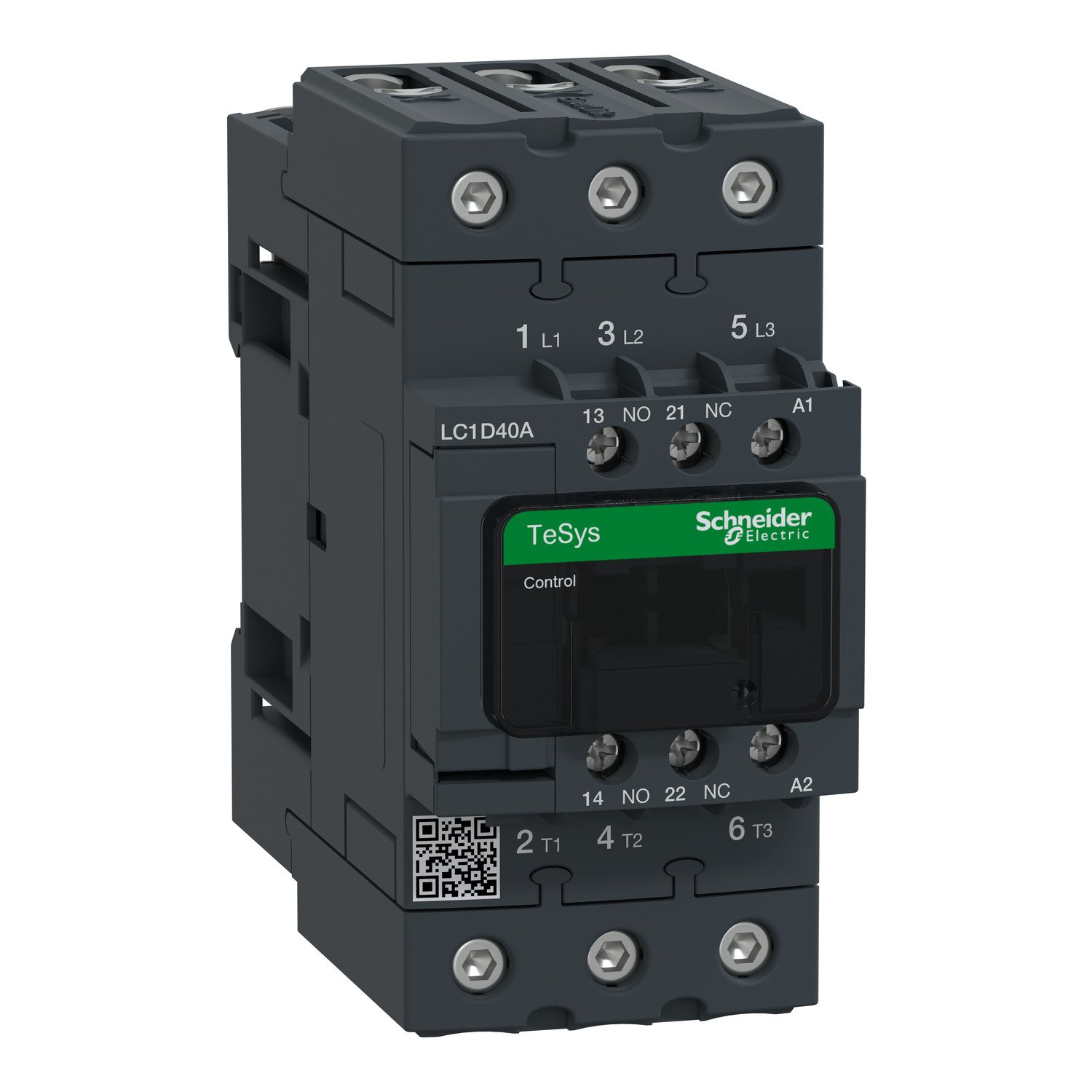

The LC1D40AM7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other electrical loads. This contactor is part of the TeSys D range, known for its reliability and durability in industrial applications.

Key Features

• Type: 3P (3 NO) – 3 Pole, 3 Normally Open contacts
• Rated Operational Current (Ie): 40 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Utilization Category: AC-3 (for squirrel cage motors)
• Coil Voltage: 220 V AC 50/60 Hz
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting on DIN rail
• Terminal Type: Screw terminals for secure connections
• Environmental Compliance: RoHS compliant, suitable for use in harsh environments
• Safety Standards: Complies with IEC/EN 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 14 standards

Applications

The LC1D40AM7 contactor is ideal for a wide range of applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pump control
• Compressor control
• Conveyor systems

Dimensions and Weight

• Width: 45 mm
• Height: 80 mm
• Depth: 73 mm
• Weight: Approx. 0.35 kg

Additional Information

For more details, refer to the official Schneider Electric product documentation or contact their customer support.
