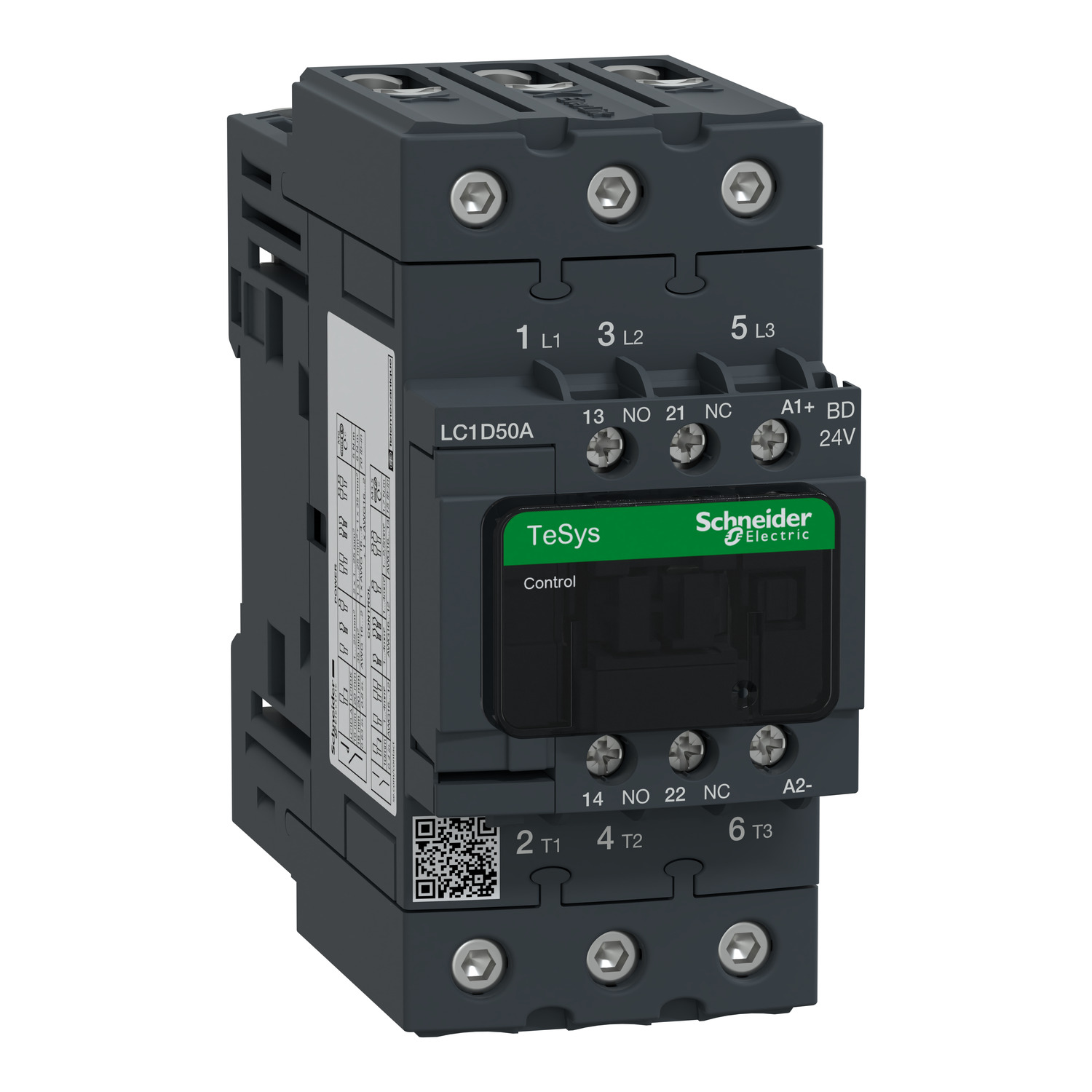

LC1D50ABD | TeSys D Contactor – Schneider Electric
Product Description
The LC1D50ABD is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other high-power loads in industrial and commercial environments.
Key Features
- Type: TeSys D Contactor
- Poles: 3P (3 NO)
- Rated Operational Voltage: ≤ 440 V AC
- Rated Operational Current: 50 A (AC-3)
- Coil Voltage: 24 V DC
- Application Category: AC-3 (Squirrel cage motor control)
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations
- Mounting: Screw mounting or snap-on mounting
- Terminal Type: Screw terminals
- Environmental Compliance: RoHS compliant
- Standards: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
Applications
The LC1D50ABD contactor is widely used in various applications, including:
- Motor control in industrial machinery
- HVAC systems
- Pump and fan control
- Lighting control systems
- Power distribution systems
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Power (AC-3) | 22 kW at 400 V |
| Coil Power Consumption | 8 W |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Dimensions
Dimensions (L x W x H): 90 mm x 45 mm x 80 mm
Accessories
Compatible with a wide range of Schneider Electric accessories, including:
- Auxiliary contacts (LA1D, LA2D)
- Mechanical interlocks (LA9D)
- Time delay modules (LADT)
- Surge suppressors (LA9S)
Warranty
Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.
Safety Information
Ensure proper installation and maintenance by qualified personnel. Follow all local and international electrical codes and standards.
