LC1D65AN7 | TeSys D Contactor

Product Overview

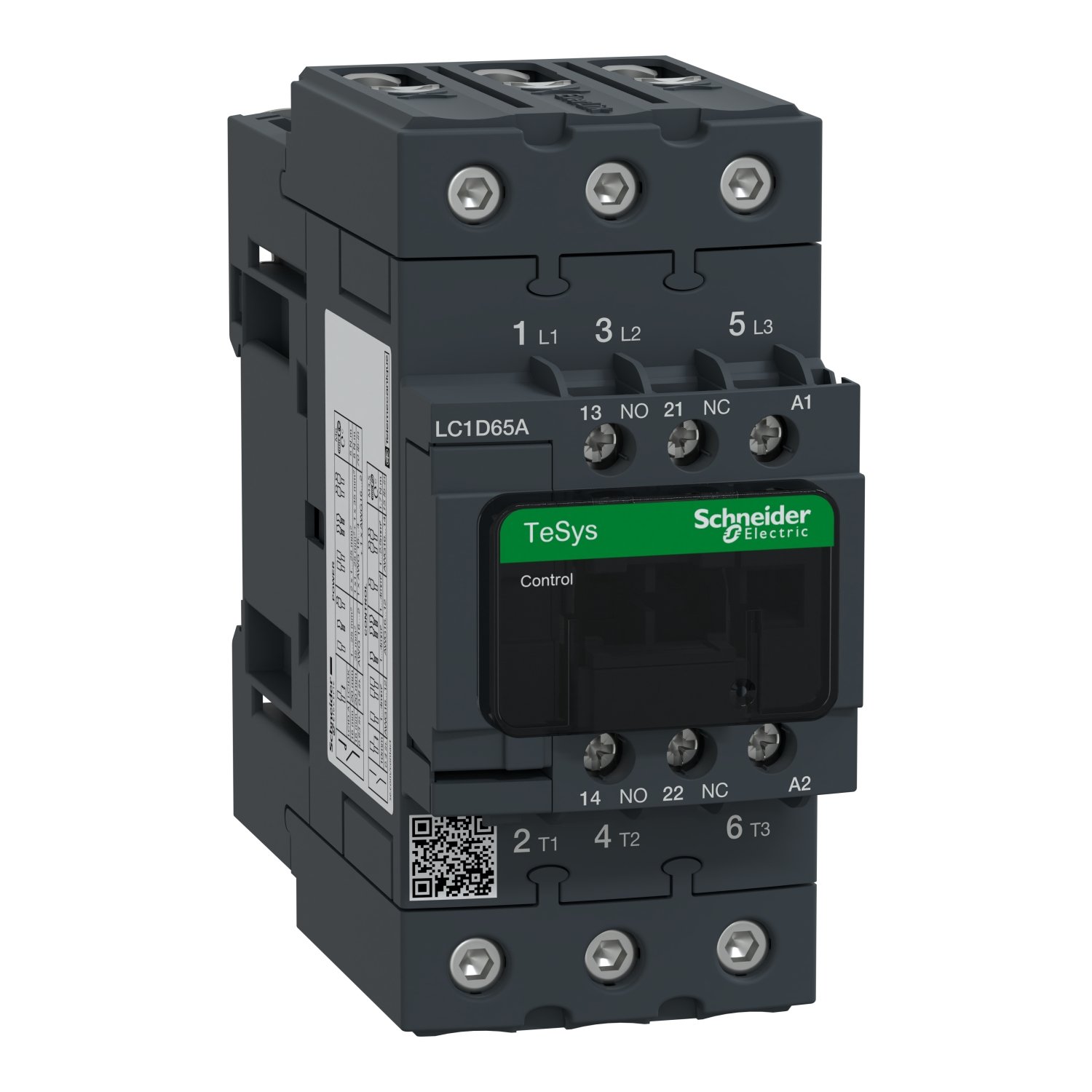

The LC1D65AN7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other industrial equipment.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO)
• Rated Operational Current (Ie): 65 A
• Rated Operational Voltage (Ue): ≤ 440 V
• Coil Voltage: 415 V AC 50/60 Hz
• Application Category: AC-3
• Mounting: Screw mounting
• Terminal Type: Screw terminals
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Ambient Temperature Range: -25°C to +60°C
• Protection Degree: IP20 (finger-safe terminals)
• Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1D65AN7 contactor is widely used in various industrial applications, including:

• Motor control
• Pump control
• Compressor control
• Conveyor systems
• HVAC systems

Dimensions and Weight

• Width: 55 mm
• Height: 98 mm
• Depth: 88 mm
• Weight: Approx. 0.6 kg

Additional Information

For more detailed technical specifications, installation guidelines, and safety information, please refer to the official Schneider Electric product documentation or contact their customer support.
