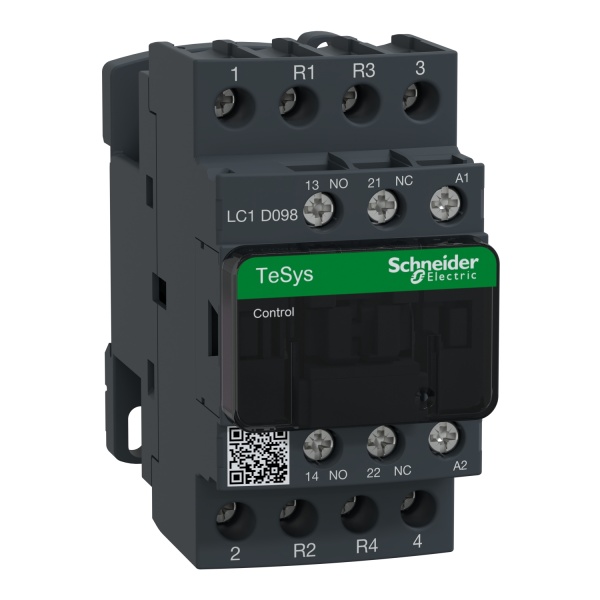

LC1D098F7 | TeSys D Contactor
Product Description
The LC1D098F7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with a high degree of reliability and efficiency. This contactor is suitable for a wide range of applications, including industrial automation, HVAC systems, and motor control.
Key Features
- Type: TeSys D Contactor
- Poles: 4P (2 NO + 2 NC)
- Rated Operational Voltage (Ue): ≤ 440 V AC
- Rated Operational Current (Ie): 20 A
- Coil Voltage: 110 V AC
- Utilization Category: AC-1
- Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations
- Mounting: Screw mounting or snap-on mounting
- Terminal Type: Screw terminals
- Environmental Compliance: RoHS compliant
- Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
Applications
The LC1D098F7 contactor is ideal for use in various applications, including:
- Motor control
- Industrial automation
- HVAC systems
- Lighting control
- Power distribution
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Power (P) | 7.5 kW at 400 V AC |
| Rated Thermal Current (Ith) | 20 A |
| Coil Power Consumption | 8 VA |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 0.3 kg |
Dimensions
Dimensions (W x H x D): 45 mm x 80 mm x 75 mm
Additional Information
For more detailed information, including wiring diagrams and installation instructions, please refer to the official Schneider Electric product documentation or contact their technical support team.
