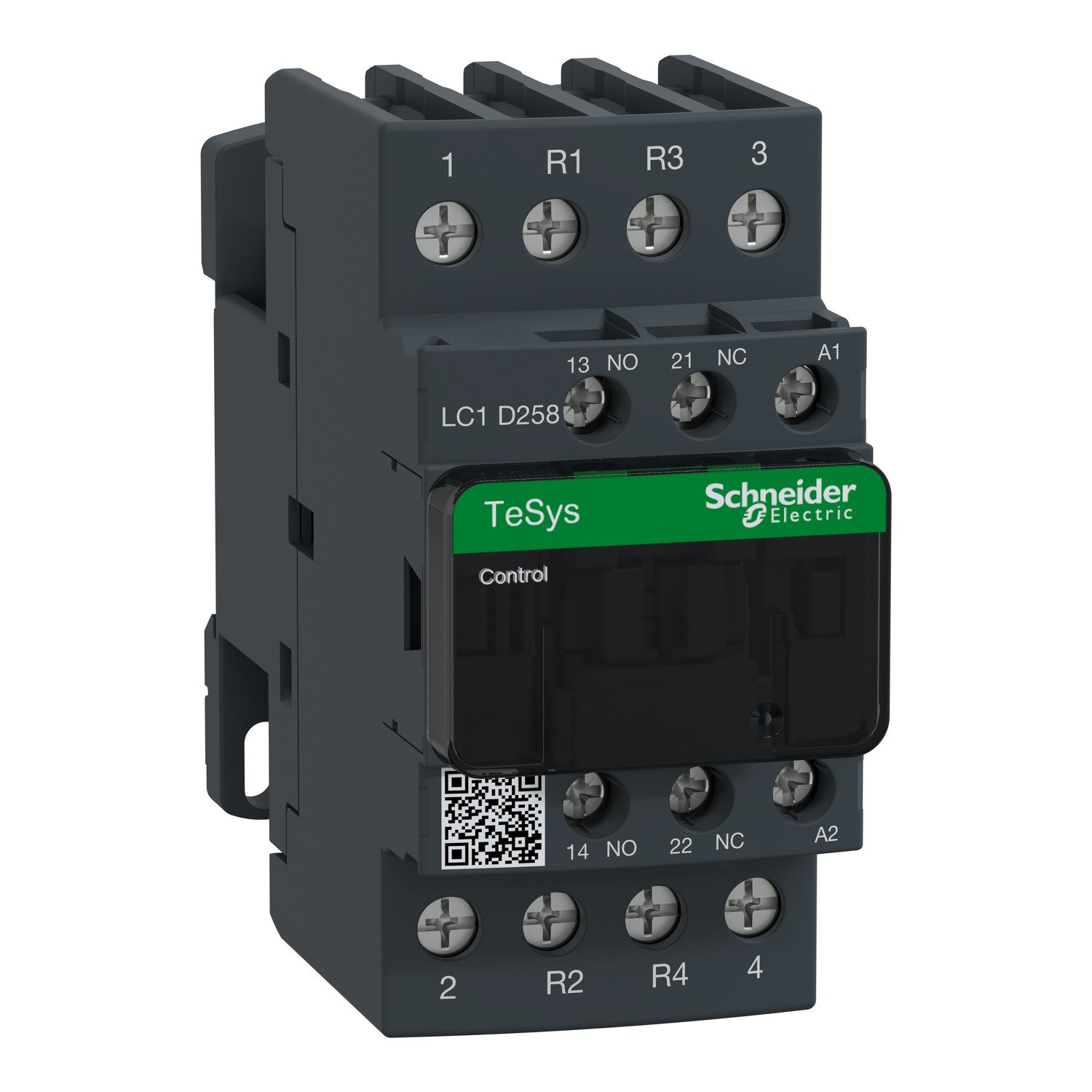

LC1D258F7 | TeSys D Contactor

Product Description

The LC1D258F7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with a high level of reliability and efficiency. This contactor is suitable for a wide range of industrial applications, offering robust performance and durability.

Key Features

• Type: TeSys D Contactor
• Poles: 4P (2 NO + 2 NC)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 40 A
• Coil Voltage: 110 V AC
• Utilization Category: AC-1
• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Mounting: Screw Mounting
• Terminal Type: Screw Clamp
• Mechanical Durability: 10 million operations
• Electrical Durability: 1 million operations
• Ambient Temperature: -25°C to +60°C
• Protection Degree: IP20 (Finger-safe)
• Standards: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1D258F7 contactor is ideal for use in various industrial applications, including:

• Motor control
• Heating systems
• Lighting control
• Power distribution
• Automation systems

Dimensions

For detailed dimensions, please refer to the product datasheet provided by Schneider Electric.

Additional Information

For more technical details, installation guidelines, and safety information, please consult the official Schneider Electric documentation or visit their website.
