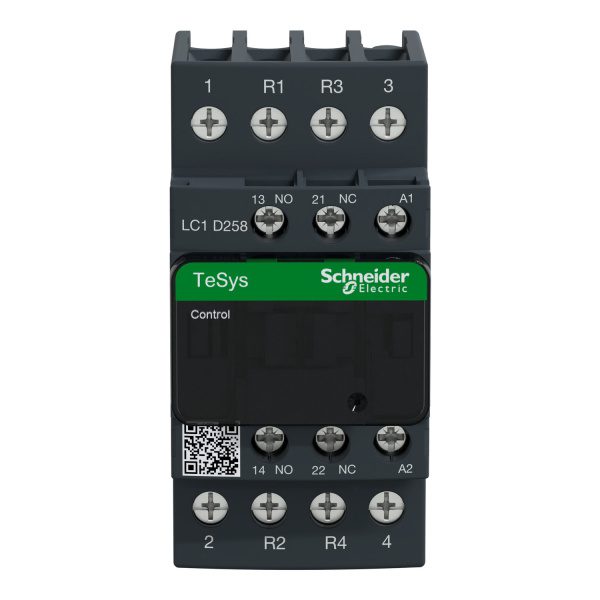

LC1D258M7 | TeSys D Contactor

Product Description

The LC1D258M7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with a high degree of reliability and efficiency. This contactor is suitable for a wide range of applications, including industrial automation, HVAC systems, and motor control.

Key Features

• Type: TeSys D Contactor
• Poles: 4P (2 NO + 2 NC)
• Rated Operational Voltage (Ue): ≤ 440 V
• Rated Operational Current (Ie): 40 A
• Coil Voltage: 220 V AC
• Utilization Category: AC-1
• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Mounting: Screw mounting
• Terminal Type: Screw terminals
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Ambient Temperature Range: -25°C to +60°C
• Protection Degree: IP20 (finger-safe)
• Dimensions: Compact design for space-saving installation
• Compliance: Meets international standards such as IEC, UL, and CSA

Applications

The LC1D258M7 contactor is ideal for use in various applications, including:

• Motor control
• Industrial automation
• HVAC systems
• Lighting control
• Power distribution

Benefits

• High reliability and durability
• Compact and space-saving design
• Easy installation and maintenance
• Compatible with a wide range of accessories
• Complies with international safety standards

Technical Support

For technical support, installation guides, and additional product information, please visit the official Schneider Electric website or contact their customer service team.
