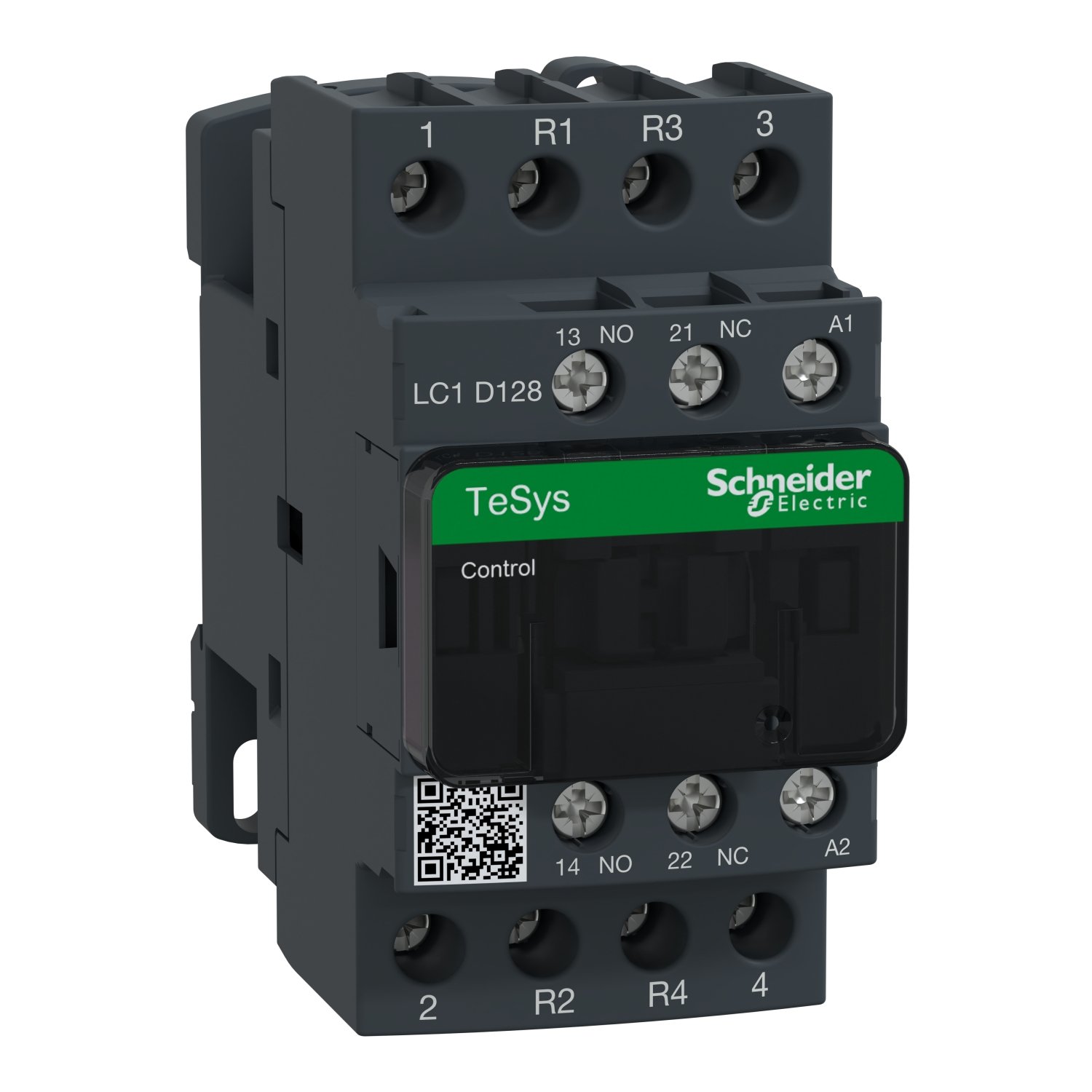

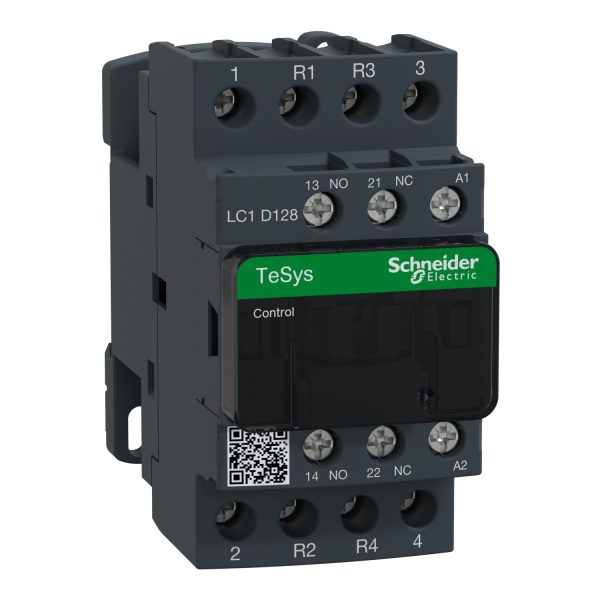

LC1D128F7 | TeSys D Contactor

Product Description

The LC1D128F7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with a high level of reliability and efficiency. This contactor is suitable for a wide range of applications, including industrial automation, HVAC systems, and motor control.

Key Features

• Type: TeSys D Contactor
• Poles: 4P (2 NO + 2 NC)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 25 A
• Coil Voltage: 110 V AC
• Utilization Category: AC-1
• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Mounting: Screw or snap-on mounting
• Terminal Type: Screw terminals
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Ambient Temperature Range: -25°C to +60°C
• Protection Degree: IP20 (finger-safe)
• Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1D128F7 contactor is ideal for use in various applications, including:

• Motor control
• Industrial automation
• HVAC systems
• Lighting control
• Power distribution

Dimensions and Weight

• Width: 45 mm
• Height: 80 mm
• Depth: 73 mm
• Weight: Approx. 0.3 kg

Additional Information

For more detailed technical specifications, installation guidelines, and safety information, please refer to the official Schneider Electric product documentation or contact their customer support.
