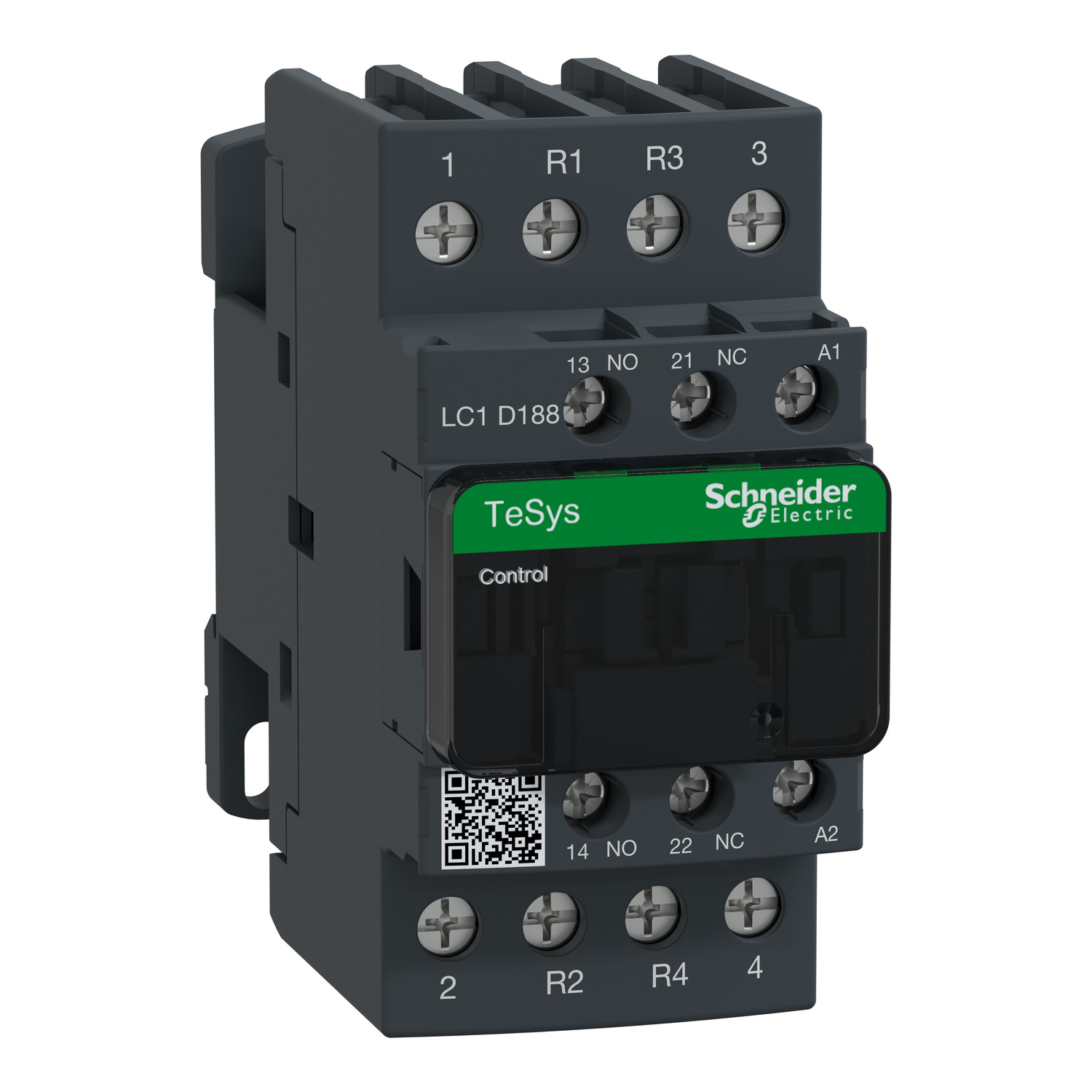

LC1D188E7 | TeSys D Contactor – Schneider Electric

Product Description

The LC1D188E7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient switching of electrical circuits. It is a 4-pole contactor with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, suitable for AC-1 applications. This contactor is ideal for controlling motors, lighting, and other electrical loads in industrial and commercial environments.

Key Features

• Type: TeSys D Contactor
• Poles: 4P (2 NO + 2 NC)
• Rated Voltage: ≤ 440 V AC
• Rated Current: 32 A
• Coil Voltage: 48 V AC
• Application Category: AC-1
• Mounting: DIN Rail or Screw Mounting
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Contact Material: Silver Alloy
• Operating Temperature: -25°C to +60°C
• Protection Degree: IP20 (Finger-safe)
• Standards: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1D188E7 contactor is suitable for a wide range of applications, including:

• Motor control in industrial machinery
• Lighting control systems
• Heating and ventilation systems
• Power distribution systems

Dimensions and Weight

• Width: 45 mm
• Height: 80 mm
• Depth: 73 mm
• Weight: Approx. 0.35 kg

Additional Information

For more details, refer to the official Schneider Electric product documentation or contact their customer support.
