LC1DT32U7 | TeSys D Contactor

Product Description

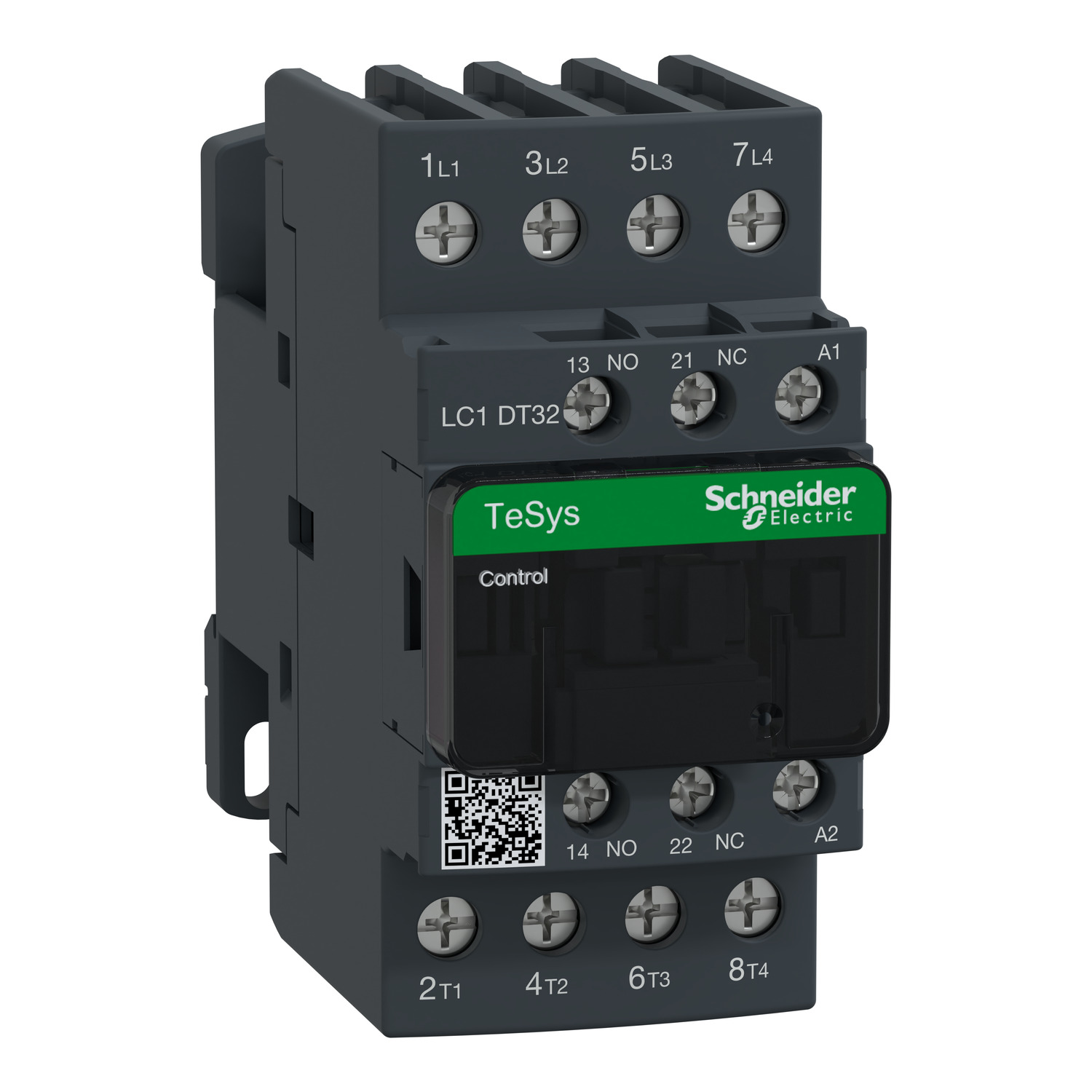

The LC1DT32U7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with a wide range of applications. This contactor is part of the TeSys D series, known for its reliability and durability in industrial environments.

Key Features

• Number of Poles: 4P (4 Normally Open Contacts)
• Rated Operational Current (Ie): 32 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Utilization Category: AC-1
• Coil Voltage: 240 V AC 50/60 Hz
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1DT32U7 contactor is suitable for a variety of applications, including:

• Motor control
• Heating systems
• Lighting control
• Power distribution
• Industrial automation

Dimensions and Weight

• Width: 45 mm
• Height: 80 mm
• Depth: 73 mm
• Weight: Approximately 0.35 kg

Additional Information

For more detailed technical specifications, installation guidelines, and safety information, please refer to the official Schneider Electric product documentation or contact their customer support.
