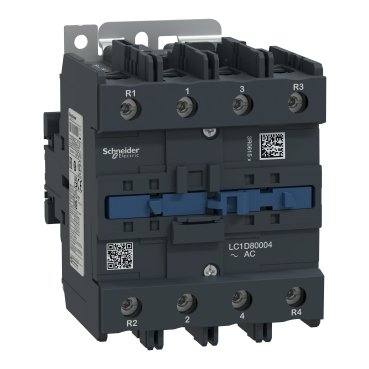

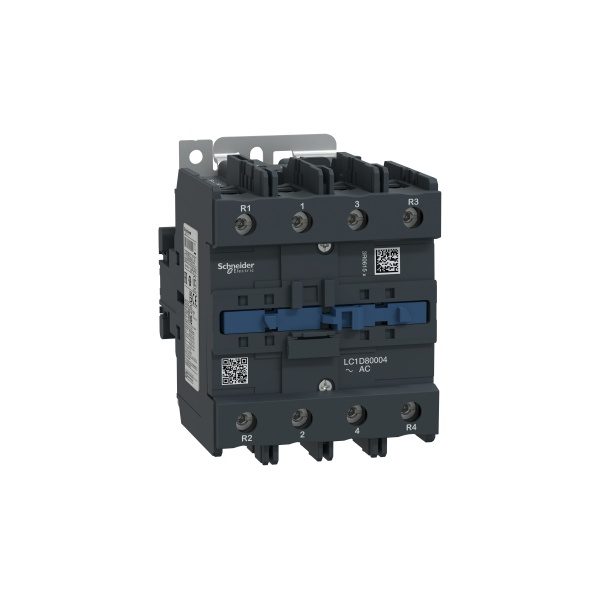

LC1D80004E7 | TeSys D Contactor

Product Overview

The LC1D80004E7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with high reliability and efficiency. This contactor is suitable for a wide range of industrial applications.

Key Features

• Number of Poles: 4P (4 Normally Open – NO)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 125 A (AC-1)
• Coil Voltage: 48 V AC 50/60 Hz
• Contact Configuration: 4 NO (Normally Open)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC 60947-4-1, IEC 60947-5-1
• Protection Degree: IP20 (finger-safe)
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C

Applications

The LC1D80004E7 contactor is ideal for use in:

• Motor control applications
• Industrial automation systems
• Heating and ventilation systems
• Power distribution systems
• Lighting control systems

Dimensions and Weight

• Width: 72 mm
• Height: 98 mm
• Depth: 85 mm
• Weight: Approximately 0.8 kg

Accessories

Compatible accessories include:

• Auxiliary contacts (e.g., LADN series)
• Mechanical interlocks
• Time delay modules
• Surge suppressors

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.

Safety Information

Ensure proper installation and maintenance by qualified personnel. Follow all local and international electrical codes and standards.
