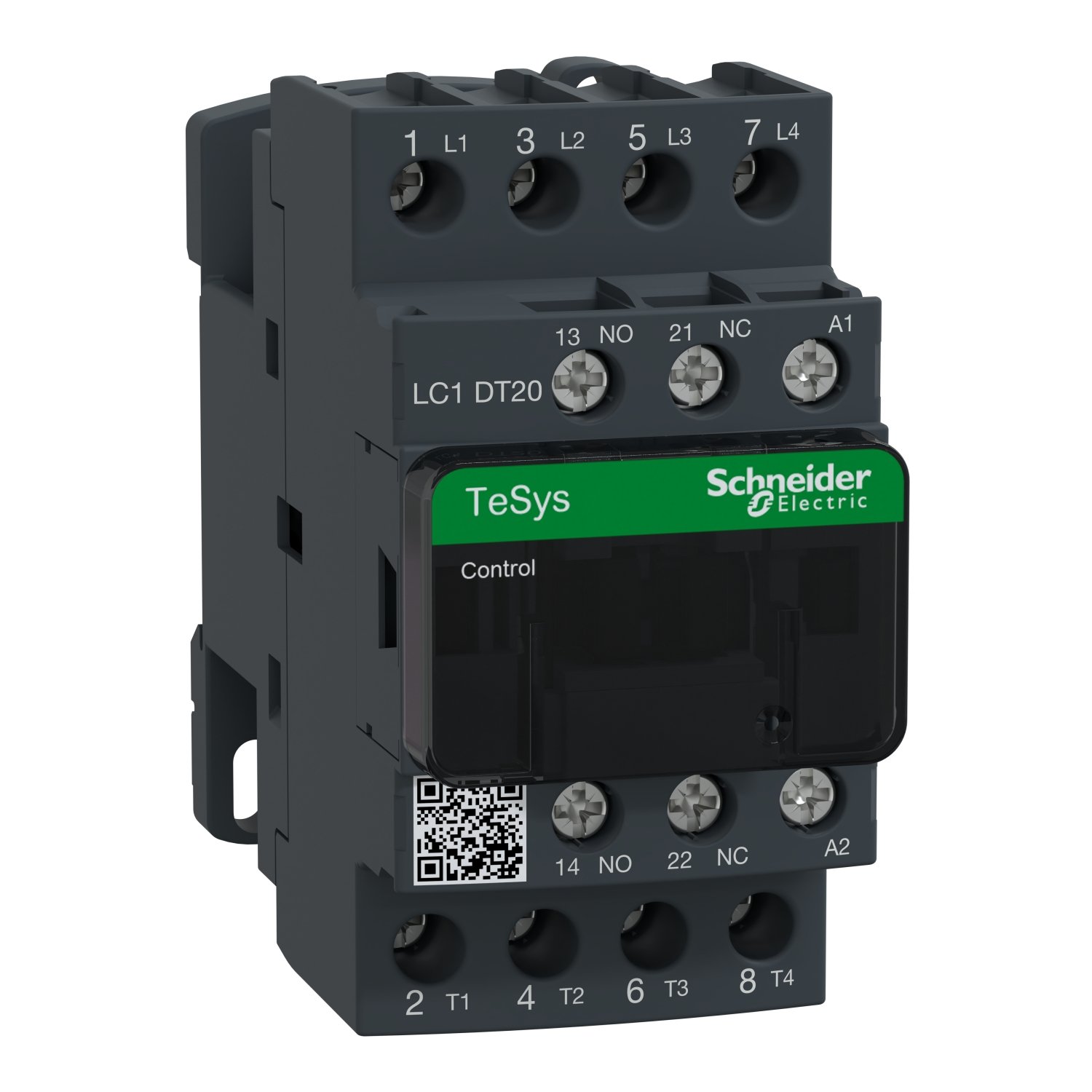

LC1DT20M7 | TeSys D Contactor
Product Overview
The LC1DT20M7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with a wide range of applications in industrial and commercial environments. This contactor is known for its reliability, durability, and ease of installation.
Key Features
- Type: Contactor
- Series: TeSys D
- Number of Poles: 4P (4 Normally Open Contacts)
- Rated Operational Voltage (Ue): ≤ 440 V AC
- Rated Operational Current (Ie): 20 A
- Coil Voltage: 220 V AC 50/60 Hz
- Utilization Category: AC-1
- Mounting: Screw Mounting
- Terminal Type: Screw Clamp
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations
- Ambient Temperature Range: -25°C to +60°C
- Protection Degree: IP20 (Finger-safe)
- Dimensions: Compact design for space-saving installation
- Compliance: Meets international standards such as IEC, UL, and CSA
Applications
The LC1DT20M7 contactor is suitable for a variety of applications, including:
- Motor control in industrial machinery
- Heating and lighting control
- Power distribution systems
- HVAC systems
- Pump and fan control
Advantages
- High performance and reliability
- Easy to install and maintain
- Compact and space-saving design
- Compatible with a wide range of accessories
- Long operational life with high mechanical and electrical durability
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Thermal Current (Ith) | 20 A |
| Rated Operational Power (P) | 7.5 kW at 400 V AC |
| Coil Power Consumption | 8 VA |
| Weight | Approx. 0.3 kg |
Accessories
The LC1DT20M7 contactor is compatible with a range of accessories, including:
- Auxiliary contacts
- Mechanical interlocks
- Time delay modules
- Surge suppressors
Warranty
Schneider Electric offers a standard warranty on the LC1DT20M7 contactor, subject to terms and conditions. Please refer to the official documentation for warranty details.
Conclusion
The LC1DT20M7 TeSys D contactor is a versatile and reliable solution for controlling electrical circuits in various industrial and commercial applications. Its robust design, high durability, and ease of installation make it a preferred choice for professionals seeking efficient and dependable electrical control components.
