LXD3N7 | TeSys D – contactor coil – LXD3 – 415 V AC 50/60 Hz for 40… 65 A contactor – Schneider Electric

Name: LXD3N7 Contactor Coil | 415V AC for TeSys D LXD3
Brand: Schneider Electric
SKU: LXD3N7
Price: 4240.50 INR
Availability: BackOrder

SKU: LXD3N7

Original price was: ₹7,710.00.Current price is: ₹4,240.50. Excl. GST

Dispatch By : 10 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

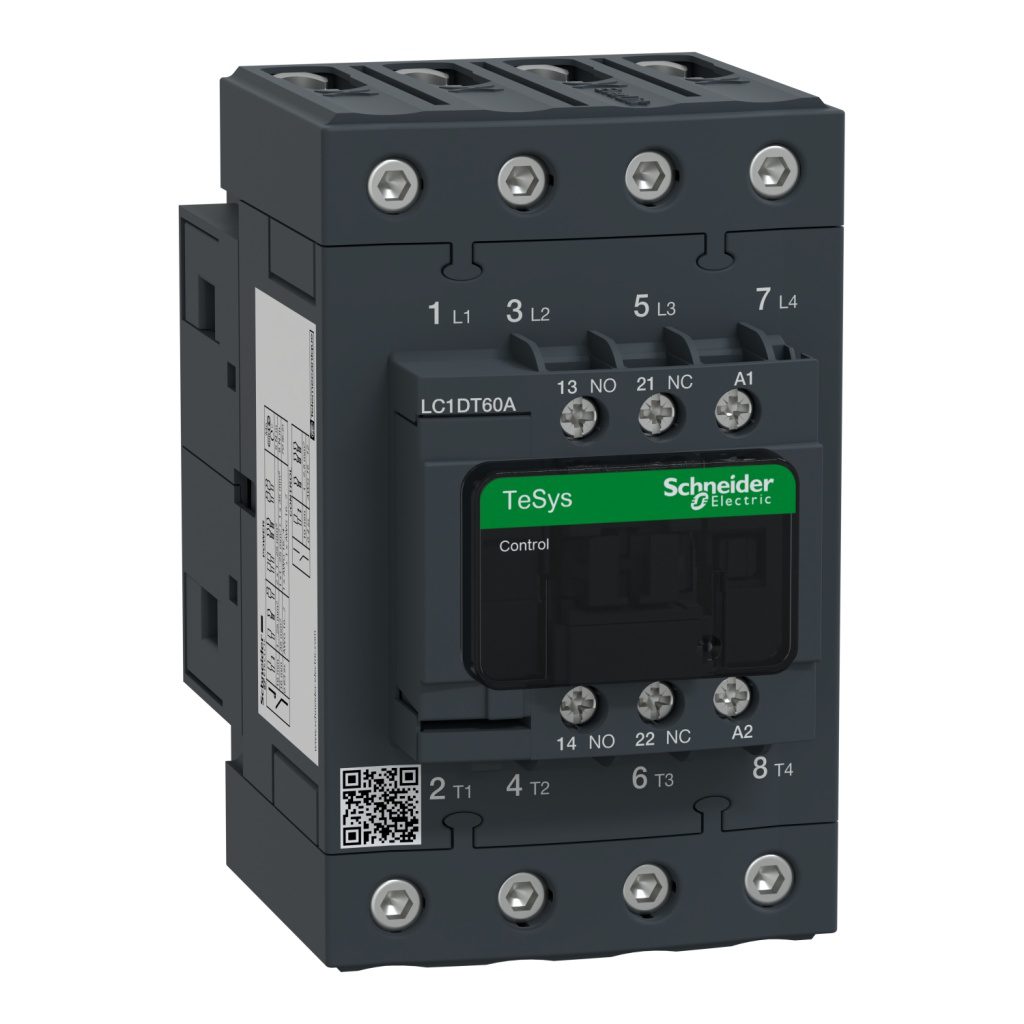

LC1DT60AN7 TeSys D contactor 4P 4 NO AC-1 lc1dt60ab7 image 1500x1500

-55%

LC1DT60AN7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 60 A - 415 V AC 50/60 Hz coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1DT60AN7

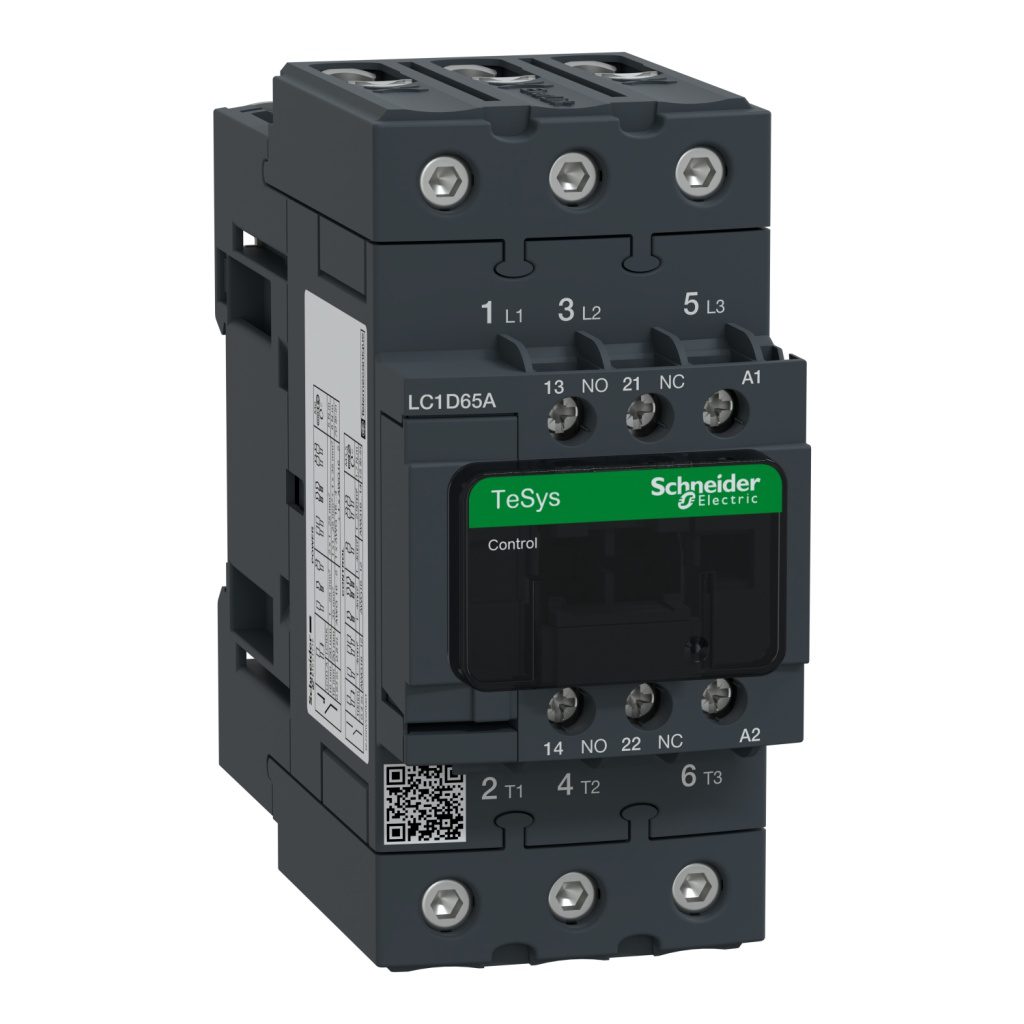

LC1D65AN7 TeSys D contactor 3P 3 NO AC-3 lc1d65an7 image 1500x1500

-63%

LC1D65AN7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 65 A - 415 V AC 50/60 Hz coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D65AN7

LC1D50AN7 TeSys D contactor 3P 3 NO AC-3 lc1d50an7 image 1500x1500

-63%

LC1D50AN7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 50 A - 415 V AC 50/60 Hz coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D50AN7

-56%

LC1D80AN7 | TeSys 3P EVLK CTR 80A 37KW AC3 415VAC – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D80AN7

-56%

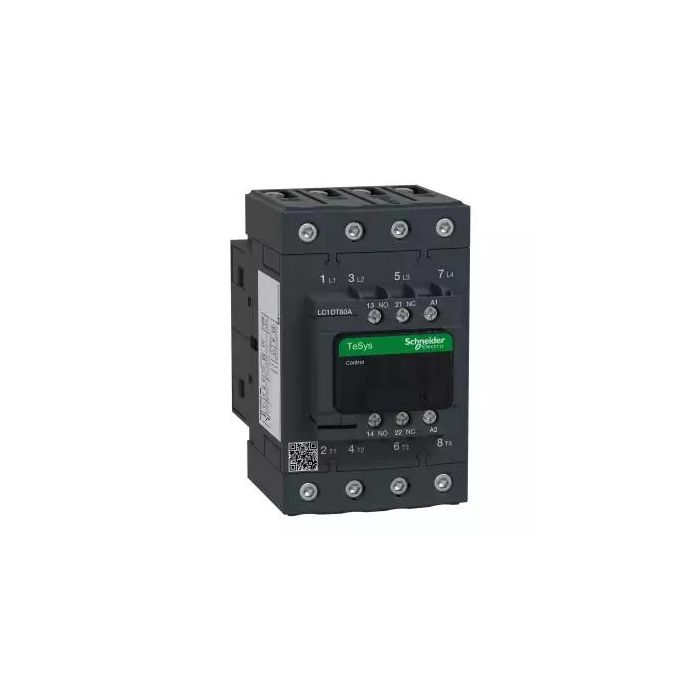

LC1DT80AN7 | TeSys 4P EVERLINK CTR 80A AC1 415VAC – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1DT80AN7

LC1D40AN7 TeSys D contactor 3P 3 NO AC-3 lc1d40an7 image 1500x1500

-63%

LC1D40AN7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 40 A - 415 V AC 50/60 Hz coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D40AN7

The Schneider Electric LXD3N7 is a contactor spare part from the TeSys range, engineered for motor control and switching in demanding Indian and international installations. Key ratings include 65 A, 415V AC. Buy the LXD3N7 | TeSys D – contactor coil – LXD3 – 415 V AC 50/60 Hz for 40… 65 A contactor online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LXD3N7
Category	Contactor Spare Part
Main
Range	TeSys
Product or component type	Contactor coil
Device short name	LXD3
Control circuit type	AC at 50/60 Hz
[Uc] control circuit voltage	415 V AC 50/60 Hz
Average resistance	635 Ohm at 20 °C
Inductance of closed circuit	35.6 H
Product compatibility	LC1D40A…D65A LC1DT80A LC1DT60A
Mechanical durability	6 Mcycles
Maximum operating rate	3600 cyc/h 60 °C
Complementary
Coil technology	Without built-in suppressor module
Control circuit voltage limits	Drop-out: 0.3…0.6 Uc at 50/60 Hz (at <60 °C) Operational: 0.8…1.1 Uc at 50 Hz (at <60 °C) Operational: 0.85…1.1 Uc at 60 Hz (at <60 °C)
Inrush power in VA	160 VA 60 Hz cos phi 0.75 (at 20 °C) 160 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA	15 VA 60 Hz cos phi 0.3 (at 20 °C) 15 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation	4…5 W at 50/60 Hz
Environment
Ambient air temperature for operation	-5…60 °C
Product weight	0.07 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.800 cm
Package 1 Width	5.800 cm
Package 1 Length	9.800 cm
Package 1 Weight	160.000 g
Unit Type of Package 2	S01
Number of Units in Package 2	12
Package 2 Height	15.000 cm
Package 2 Width	15.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.120 kg
Unit Type of Package 3	P12
Number of Units in Package 3	384
Package 3 Height	45.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	79.840 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
Replacement contactor coil rated 415V AC — restores the original contactor to service at a fraction of the cost of a complete replacement.
Exact-fit replacement — same electrical and mechanical specification as the factory-fitted coil; no recalibration or adjustment of the contactor required after fitting.
Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LC1D40AN7LC1D50AN7LC1D65AN7LC1D80AN7LC1DT60AN7LC1DT80AN7

❓ Frequently Asked Questions

Q: Is the LXD3N7 rated 65 A for AC-3 motor duty or AC-1 resistive duty?

A: The 65 A rating of this Schneider Electric contactor applies to AC-3 duty (squirrel cage motor starting and running). For AC-1 (resistive/non-inductive) loads, the current can be up to ~1.3× the AC-3 rating. AC-4 (plugging/reversing) requires significant de-rating — consult the Schneider Electric selection table.

Q: The LXD3N7 has a coil voltage of 415V AC — what control supply is needed?

A: This Schneider Electric device requires a 415V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

Q: How do I know the LXD3N7 replacement coil matches my contactor?

A: Match three things: (1) the contactor series and frame size stated for the LXD3N7, (2) the coil voltage — the replacement must equal the control circuit voltage exactly, and (3) AC or DC supply type. Fitting a coil of the wrong voltage causes failure to pull in (too low) or coil burnout (too high). The original coil’s voltage is printed on its face — verify before ordering.

Q: What causes a contactor coil to fail and need replacement like the LXD3N7?

A: The most common causes are: sustained undervoltage (coil hums and overheats while failing to seal the magnetic circuit), overvoltage, voltage spikes from nearby switching inductive loads, dust or rust on the magnet faces preventing full closure (coil draws inrush current continuously), and simple ageing of the insulation. If coils fail repeatedly, fit a surge suppressor and check the control supply voltage stability before fitting the new coil.
