CAD32P7 | TeSys D Control Relay

Product Overview

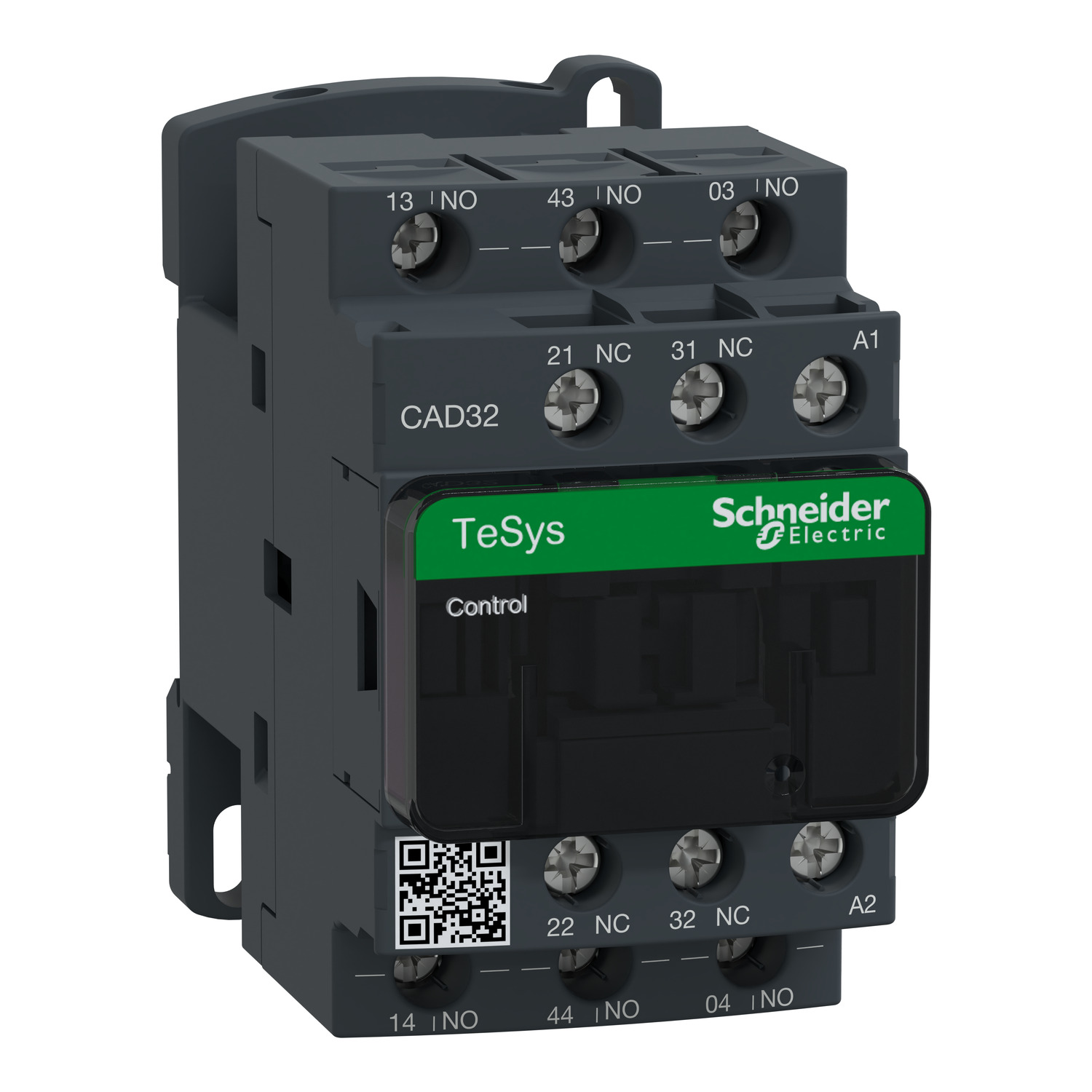

The CAD32P7 is a TeSys D control relay from Schneider Electric, designed for industrial and commercial applications. It features 3 Normally Open (NO) and 2 Normally Closed (NC) contacts, making it versatile for various control tasks. The relay operates at a voltage of ≤ 690 V and has a standard coil rated at 230 V AC.

Key Features

• Contact Configuration: 3 NO + 2 NC
• Rated Voltage: ≤ 690 V
• Coil Voltage: 230 V AC
• Mounting Type: DIN Rail Mounting
• Contact Material: Silver Alloy
• Mechanical Life: 10,000,000 operations
• Electrical Life: 1,000,000 operations
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -40°C to +85°C
• Protection Degree: IP20 (finger-safe)
• Standards Compliance: IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

Applications

The CAD32P7 control relay is suitable for a wide range of applications, including:

• Motor control
• Lighting control
• Heating and ventilation systems
• Industrial automation
• Power distribution

Dimensions and Weight

• Width: 22.5 mm
• Height: 78 mm
• Depth: 90 mm
• Weight: 0.25 kg

Additional Information

For more detailed specifications, installation guidelines, and safety information, please refer to the official Schneider Electric product documentation or contact their customer support.
