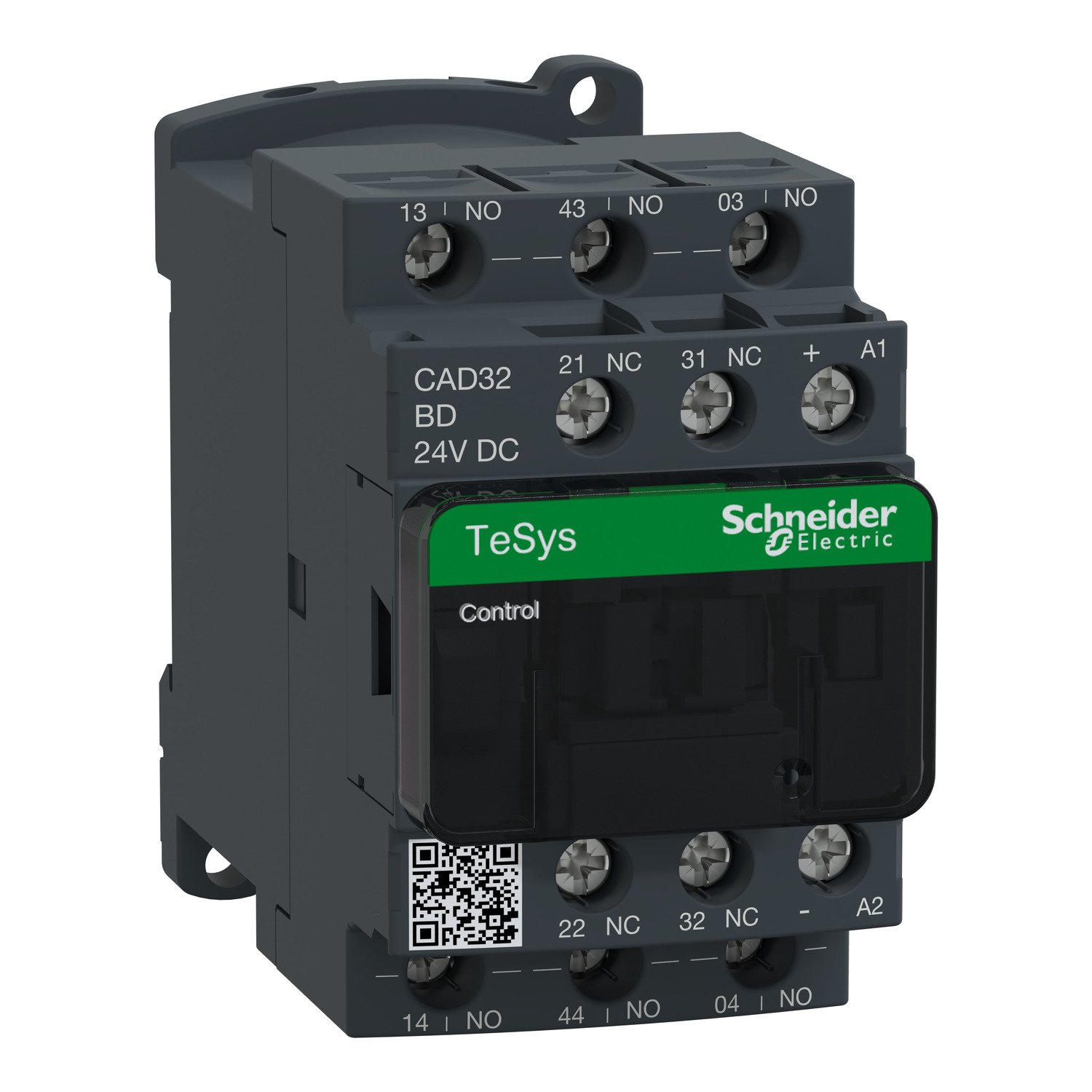

CAD32BD | TeSys D Control Relay
Product Overview
The CAD32BD is a TeSys D control relay manufactured by Schneider Electric. It is designed for industrial applications requiring reliable switching and control of electrical circuits. This relay features a robust design and is suitable for use in a wide range of environments.
Key Features
- Contact Configuration: 3 Normally Open (NO) + 2 Normally Closed (NC) contacts
- Voltage Rating: Up to 690 V
- Coil Voltage: 24 V DC standard coil
- Mounting: DIN rail mounting for easy installation
- Durability: High mechanical and electrical durability
- Safety: Complies with international safety standards
- Compact Design: Space-saving design for efficient panel use
- LED Indicator: Built-in LED for visual status indication
- Wide Application: Suitable for motor control, automation, and industrial machinery
Technical Specifications
| Parameter | Value |
|---|---|
| Contact Configuration | 3 NO + 2 NC |
| Rated Voltage | ≤ 690 V |
| Coil Voltage | 24 V DC |
| Mounting Type | DIN Rail |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 100,000 operations |
| Operating Temperature | -25°C to +55°C |
| Weight | Approx. 200 g |
Applications
The CAD32BD control relay is ideal for use in:
- Motor control circuits
- Industrial automation systems
- Machinery and equipment control
- Power distribution systems
Compliance and Certifications
The product complies with the following standards:
- IEC/EN 60947-5-1
- UL 508
- CSA C22.2 No. 14
Additional Information
For more details, refer to the official Schneider Electric product documentation or contact their customer support.
