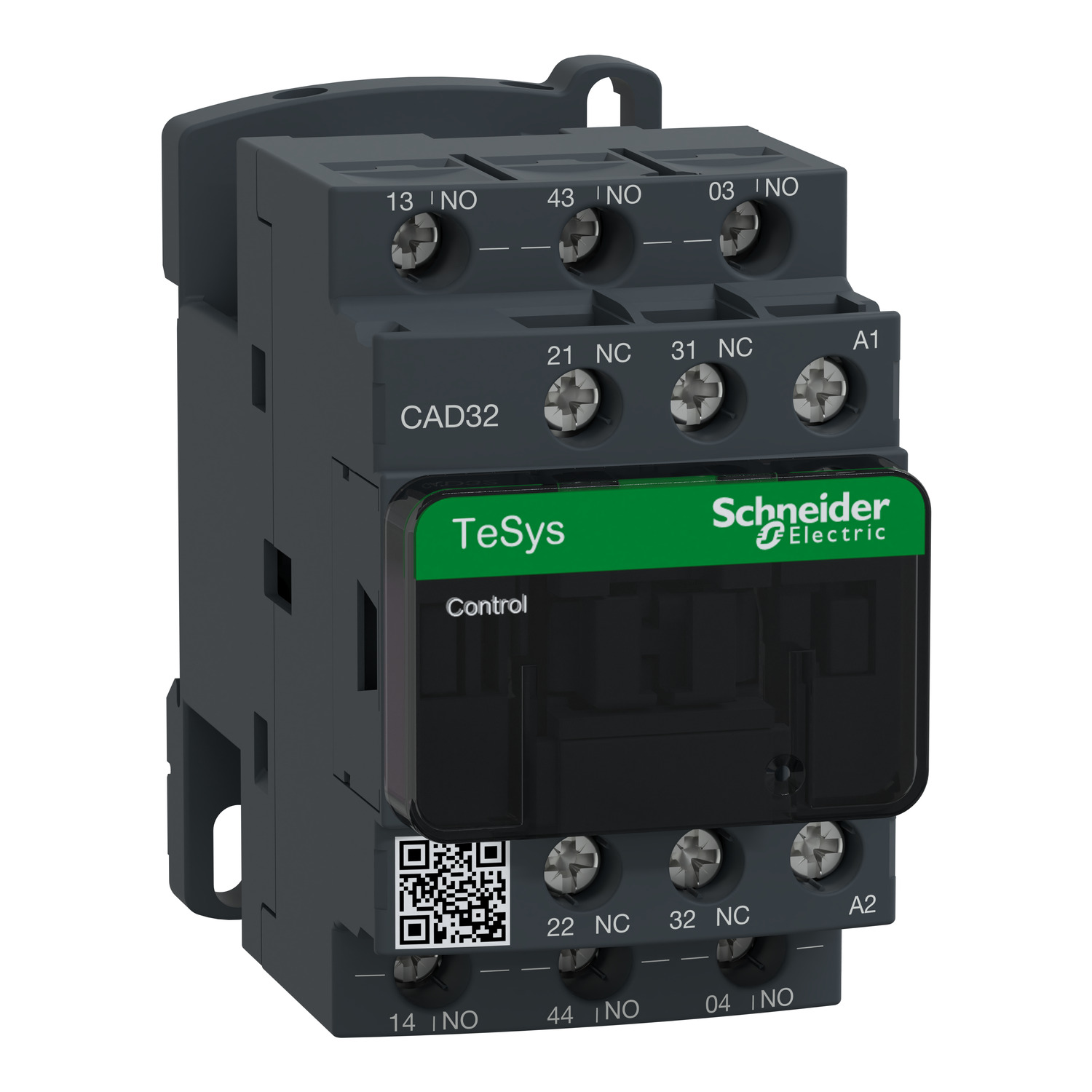

CAD32G7 | TeSys D Control Relay

Product Description

The CAD32G7 is a TeSys D control relay designed by Schneider Electric. It is a versatile and reliable component used in various industrial applications for controlling electrical circuits. This control relay features 3 Normally Open (NO) and 2 Normally Closed (NC) contacts, making it suitable for a wide range of control tasks.

Key Features

• Contact Configuration: 3 NO + 2 NC
• Voltage Rating: ≤ 690 V
• Coil Voltage: 120 V AC (Standard Coil)
• Mounting: DIN Rail Mounting
• Contact Material: Silver Alloy
• Mechanical Life: Up to 10 million operations
• Electrical Life: Up to 1 million operations
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -40°C to +85°C
• Protection Degree: IP20 (Finger-safe)
• Dimensions: 45mm x 78mm x 90mm (W x H x D)
• Weight: Approximately 300g
• Compliance: IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

Applications

The CAD32G7 control relay is ideal for use in:

• Motor control circuits
• Industrial automation systems
• Power distribution systems
• HVAC systems
• Lighting control systems

Benefits

• High reliability and durability
• Easy installation and maintenance
• Compact design for space-saving
• Wide range of applications
• Compliance with international standards

Technical Support

For technical support or further information, please contact Schneider Electric’s customer service or visit their official website.
