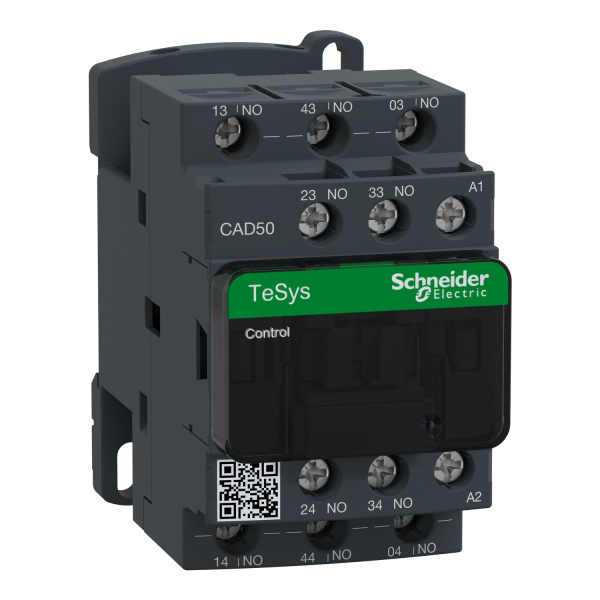

CAD50E7 | TeSys D Control Relay
Product Overview
The CAD50E7 is a TeSys D control relay manufactured by Schneider Electric. It is designed for industrial applications requiring reliable switching and control of electrical circuits. This relay features 5 Normally Open (NO) contacts and is suitable for use in systems with voltages up to 690 V. The coil operates at 48 V AC, making it ideal for standard control applications.
Key Features
- Number of Contacts: 5 Normally Open (NO)
- Rated Voltage: Up to 690 V
- Coil Voltage: 48 V AC
- Contact Material: Silver Alloy
- Mechanical Durability: 10 million operations
- Electrical Durability: 1 million operations
- Mounting Type: DIN Rail Mounting
- Operating Temperature: -25°C to +55°C
- Protection Degree: IP20 (Finger-safe)
- Compliance: IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14
Applications
The CAD50E7 control relay is widely used in industrial automation, motor control, and power distribution systems. It is suitable for applications such as:
- Motor Starters
- Control Panels
- HVAC Systems
- Lighting Control
- Machinery and Equipment
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Current (Ie) | 6 A |
| Rated Operational Power (Pe) | 1.5 kW at 230 V AC |
| Coil Power Consumption | 2.5 VA |
| Weight | Approx. 200 g |
Safety and Compliance
The CAD50E7 complies with international standards for safety and performance, ensuring reliable operation in various industrial environments. It is UL and CSA certified, making it suitable for use in North America and other regions.
Warranty
Schneider Electric offers a standard warranty period of 24 months from the date of purchase, subject to terms and conditions.
