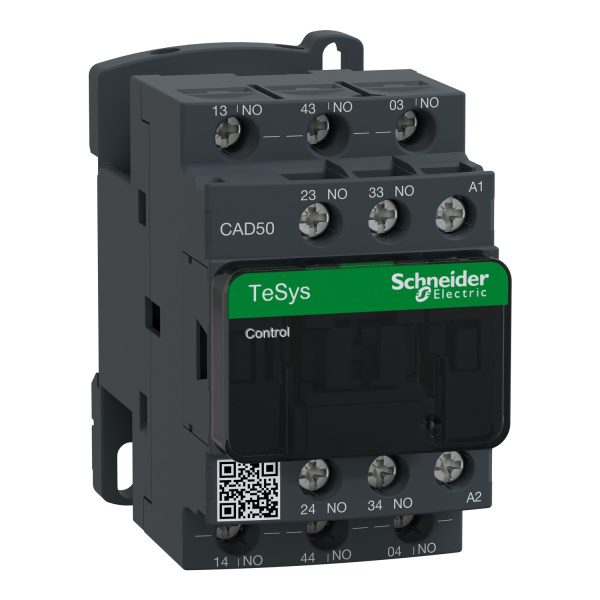

CAD50F7 | TeSys D Control Relay
Product Overview
The CAD50F7 is a TeSys D control relay manufactured by Schneider Electric. It is designed for industrial applications requiring reliable and efficient control of electrical circuits. This relay features 5 Normally Open (NO) contacts and is suitable for use in systems with voltages up to 690 V. The standard coil operates at 110 V AC, making it ideal for a wide range of control applications.
Key Features
- Number of Contacts: 5 Normally Open (NO)
- Rated Voltage: Up to 690 V
- Coil Voltage: 110 V AC (standard)
- Contact Material: Silver alloy for high durability and low resistance
- Mounting Type: DIN rail mounting for easy installation
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations at full load
- Operating Temperature: -25°C to +55°C
- Protection Class: IP20 (finger-safe design)
- Compliance: Meets international standards such as IEC 60947-4-1 and UL 508
Applications
The CAD50F7 control relay is suitable for a variety of industrial and commercial applications, including:
- Motor control circuits
- Lighting control systems
- HVAC systems
- Automation and process control
- Power distribution systems
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Operational Current (Ie) | 10 A |
| Coil Power Consumption | 2.5 VA |
| Weight | Approx. 200 g |
Additional Information
For more details, refer to the official Schneider Electric product documentation or contact their customer support team.
