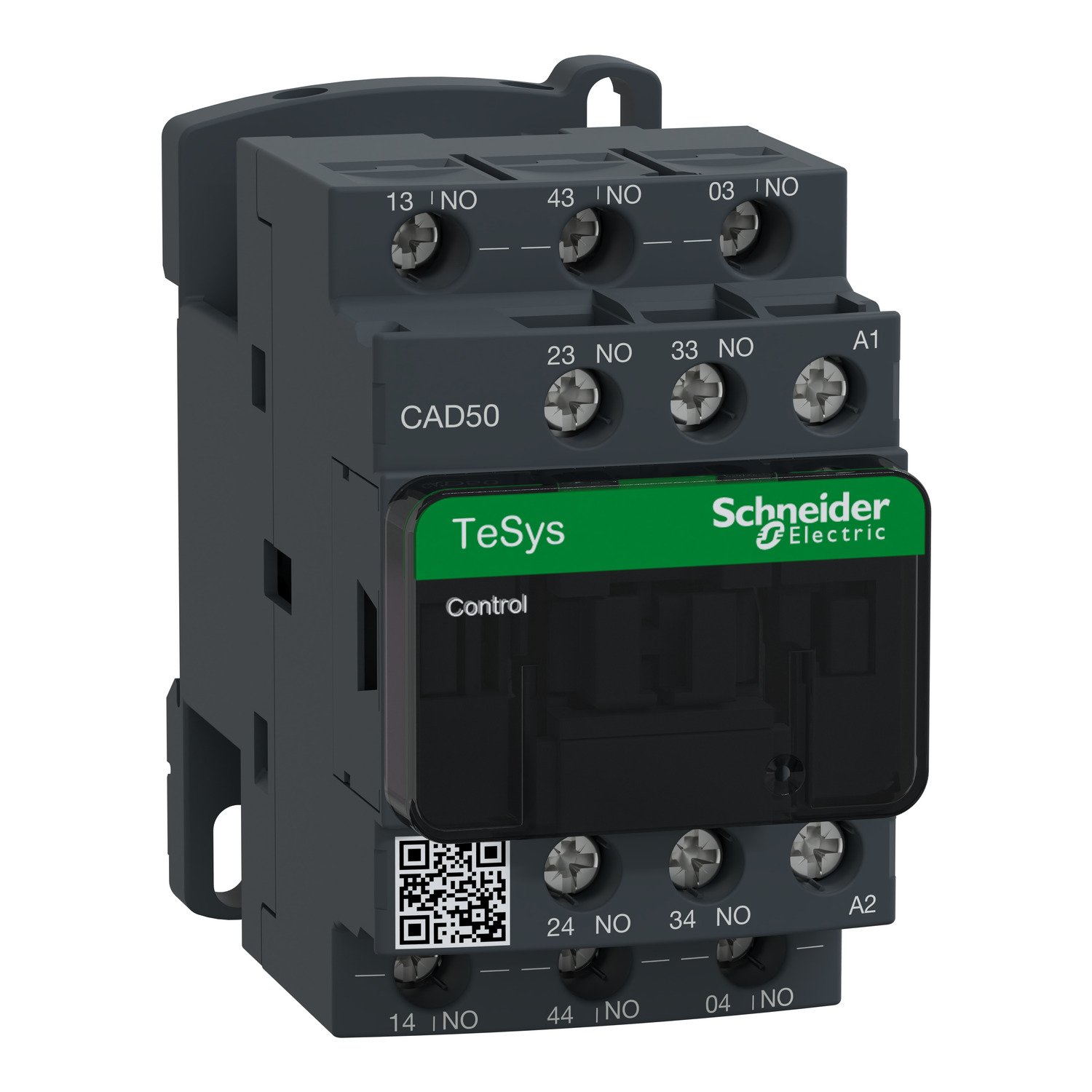

CAD50M7 | TeSys D Control Relay
Product Description
The CAD50M7 is a TeSys D control relay manufactured by Schneider Electric. It is designed for industrial applications requiring reliable and efficient control of electrical circuits. This relay features 5 Normally Open (NO) contacts and is suitable for use in systems with voltages up to 690 V. The standard coil operates at 220 V AC, making it compatible with a wide range of industrial control systems.
Key Features
- Number of Contacts: 5 Normally Open (NO)
- Rated Voltage: Up to 690 V
- Coil Voltage: 220 V AC (standard)
- Contact Material: Silver alloy for high durability and low contact resistance
- Mounting: DIN rail mounting for easy installation
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations at full load
- Operating Temperature: -25°C to +55°C
- Protection Class: IP20 (finger-safe design)
- Compliance: Meets IEC/EN 60947-4-1 standards
- Applications: Ideal for motor control, lighting control, and general-purpose switching in industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 690 V |
| Rated Operational Current (Ie) | 10 A |
| Coil Power Consumption | 2.2 VA |
| Weight | Approx. 200 g |
Applications
The CAD50M7 control relay is widely used in industrial automation, motor control systems, and power distribution applications. Its robust design and high reliability make it suitable for demanding environments.
Safety and Compliance
This product complies with international standards, ensuring safety and reliability in industrial applications. It is designed to meet IEC/EN 60947-4-1 standards for control circuit devices and switching elements.
Warranty
Schneider Electric offers a standard warranty on this product. Please refer to the manufacturer’s warranty policy for detailed terms and conditions.
