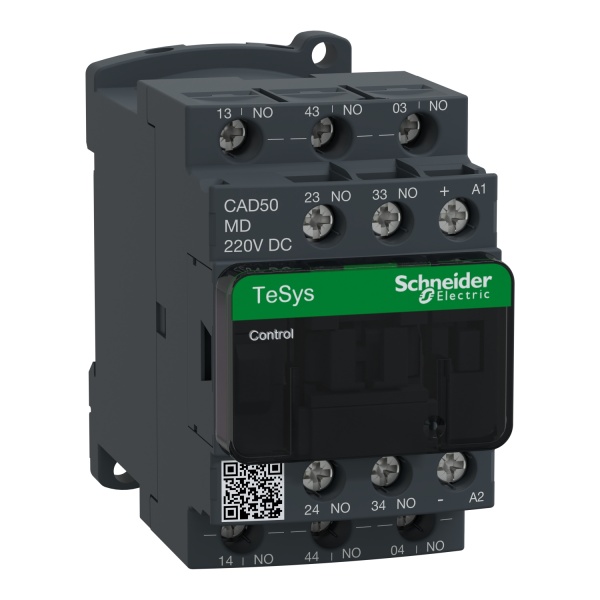

CAD50MD | TeSys D Control Relay – 5 NO – ≤690 V – 220 V DC Standard Coil
Product Overview
The CAD50MD is a TeSys D control relay from Schneider Electric, designed for industrial and commercial applications. It features 5 Normally Open (NO) contacts and is suitable for control circuits with voltages up to 690 V. The relay operates with a 220 V DC standard coil, ensuring reliable performance in various electrical systems.
Key Features
- Number of Contacts: 5 Normally Open (NO)
- Rated Voltage: ≤690 V
- Coil Voltage: 220 V DC
- Contact Material: Silver Alloy
- Mechanical Durability: 10 million operations
- Electrical Durability: 1 million operations
- Mounting Type: DIN Rail Mounting
- Operating Temperature: -25°C to +55°C
- Protection Degree: IP20 (Finger-safe)
- Compliance: IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14
Applications
The CAD50MD control relay is ideal for use in:
- Motor control circuits
- Industrial automation systems
- Power distribution panels
- HVAC systems
- Lighting control systems
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 690 V |
| Rated Operational Current (Ie) | 6 A |
| Rated Thermal Current (Ith) | 10 A |
| Coil Power Consumption | 2.2 W |
| Weight | Approx. 200 g |
Additional Information
For more details, refer to the official Schneider Electric website or contact your local Schneider Electric representative.
