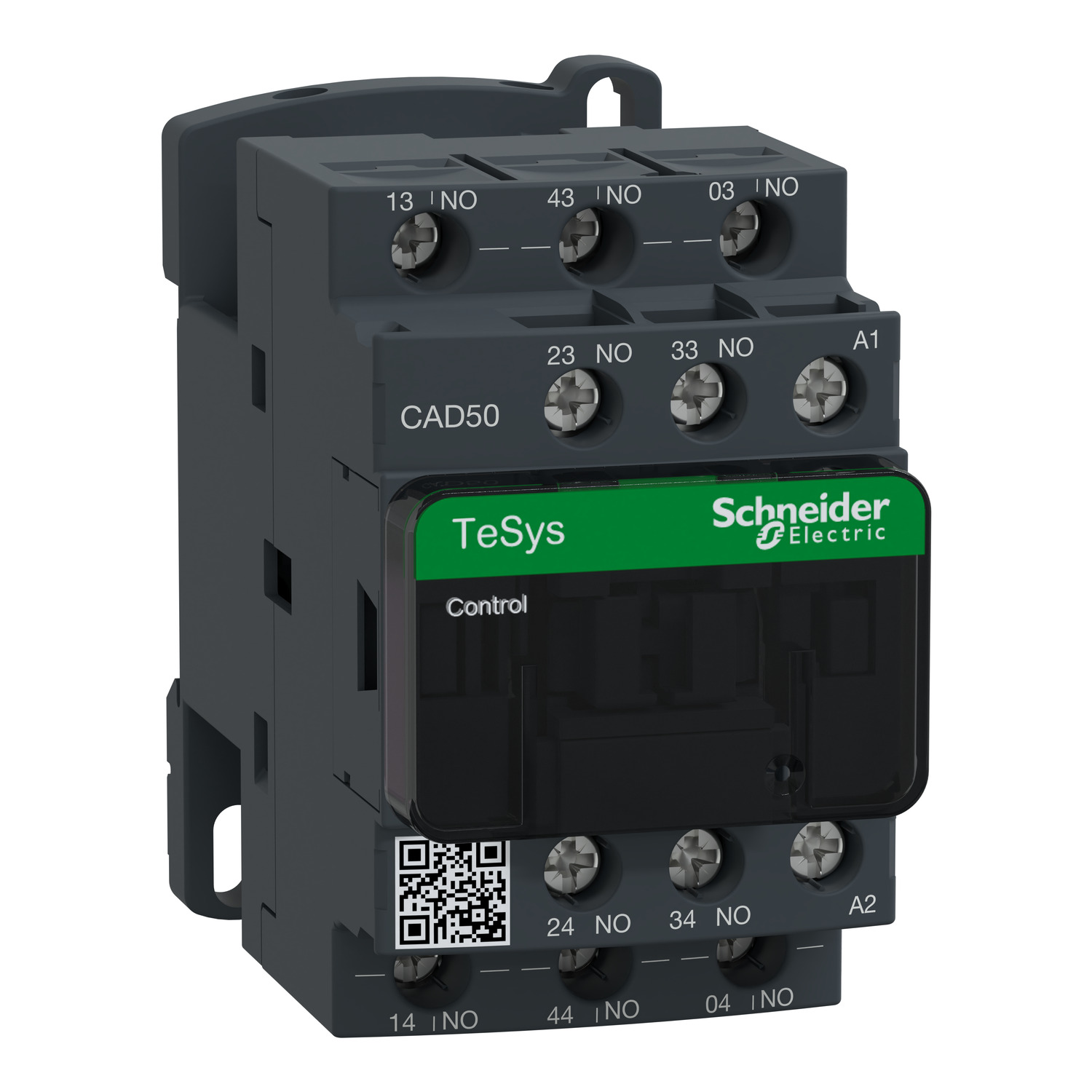

CAD50U7 | TeSys D Control Relay
Product Overview
The CAD50U7 is a TeSys D control relay from Schneider Electric, designed for industrial and commercial applications. It features 5 Normally Open (NO) contacts and is suitable for control circuits with voltages up to 690 V. The relay is equipped with a standard 240 V AC coil, making it versatile for various electrical systems.
Key Features
- Number of Contacts: 5 Normally Open (NO)
- Rated Voltage: Up to 690 V
- Coil Voltage: 240 V AC (standard)
- Contact Material: Silver alloy for reliable performance
- Mounting: DIN rail mounting for easy installation
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations at full load
- Operating Temperature: -25°C to +55°C
- Protection Class: IP20 (finger-safe design)
- Compliance: Meets IEC/EN 60947-5-1 standards
Applications
The CAD50U7 control relay is ideal for use in:
- Motor control circuits
- Industrial automation systems
- Power distribution panels
- HVAC systems
- Lighting control systems
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 240 V AC |
| Rated Operational Current (Ie) | 6 A |
| Power Consumption | 2.5 VA |
| Weight | Approx. 150 g |
Additional Information
For more details, please refer to the official Schneider Electric website or contact your local distributor.
