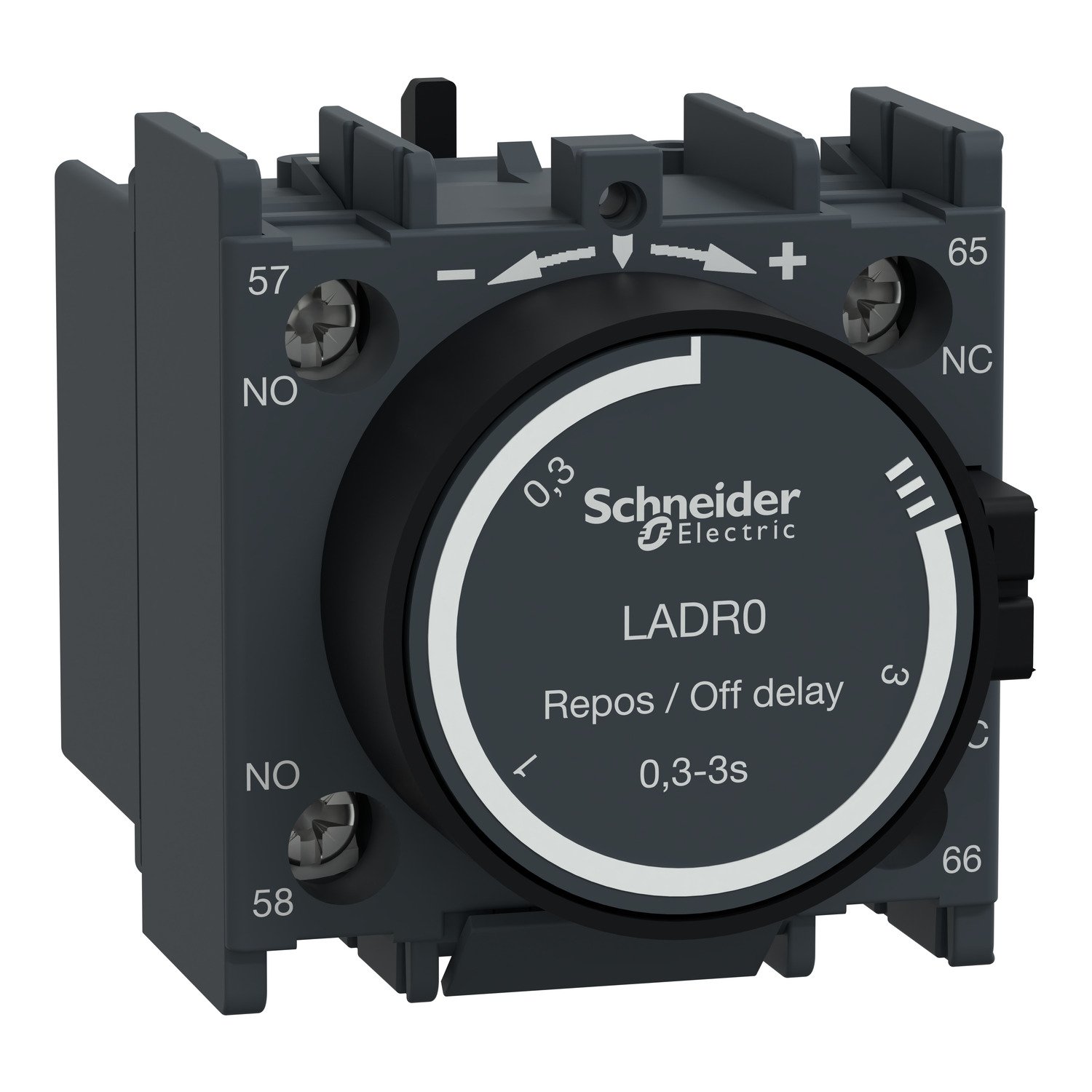

LADR0 | TeSys D – Time Delay Auxiliary Contact Block
Product Description
The LADR0 is a time delay auxiliary contact block designed for use with TeSys D contactors from Schneider Electric. It features 1 Normally Open (NO) and 1 Normally Closed (NC) contact, providing flexible control options for various applications. The contact block is equipped with screw clamp terminals for secure and reliable connections.
Key Features
- Compatibility: Designed for use with TeSys D contactors.
- Contact Configuration: 1 NO + 1 NC contacts.
- Terminal Type: Screw clamp terminals for secure wiring.
- Time Delay Function: Provides a delay in the operation of the contacts, enhancing control in time-sensitive applications.
- Durability: Built to withstand harsh industrial environments with high mechanical and electrical endurance.
- Easy Installation: Simple to mount and connect, reducing installation time.
- Safety: Complies with international standards for safety and performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 230 V AC |
| Rated Operational Current (Ie) | 6 A |
| Mechanical Durability | 10,000,000 operations |
| Electrical Durability | 1,000,000 operations |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 50 g |
Applications
The LADR0 time delay auxiliary contact block is ideal for use in industrial control systems, motor control centers, and automation applications where precise timing and reliable switching are required.
Compliance and Certifications
- CE Marked
- Complies with IEC 60947-5-1
Warranty
Schneider Electric offers a standard warranty period of 24 months from the date of purchase, subject to terms and conditions.
