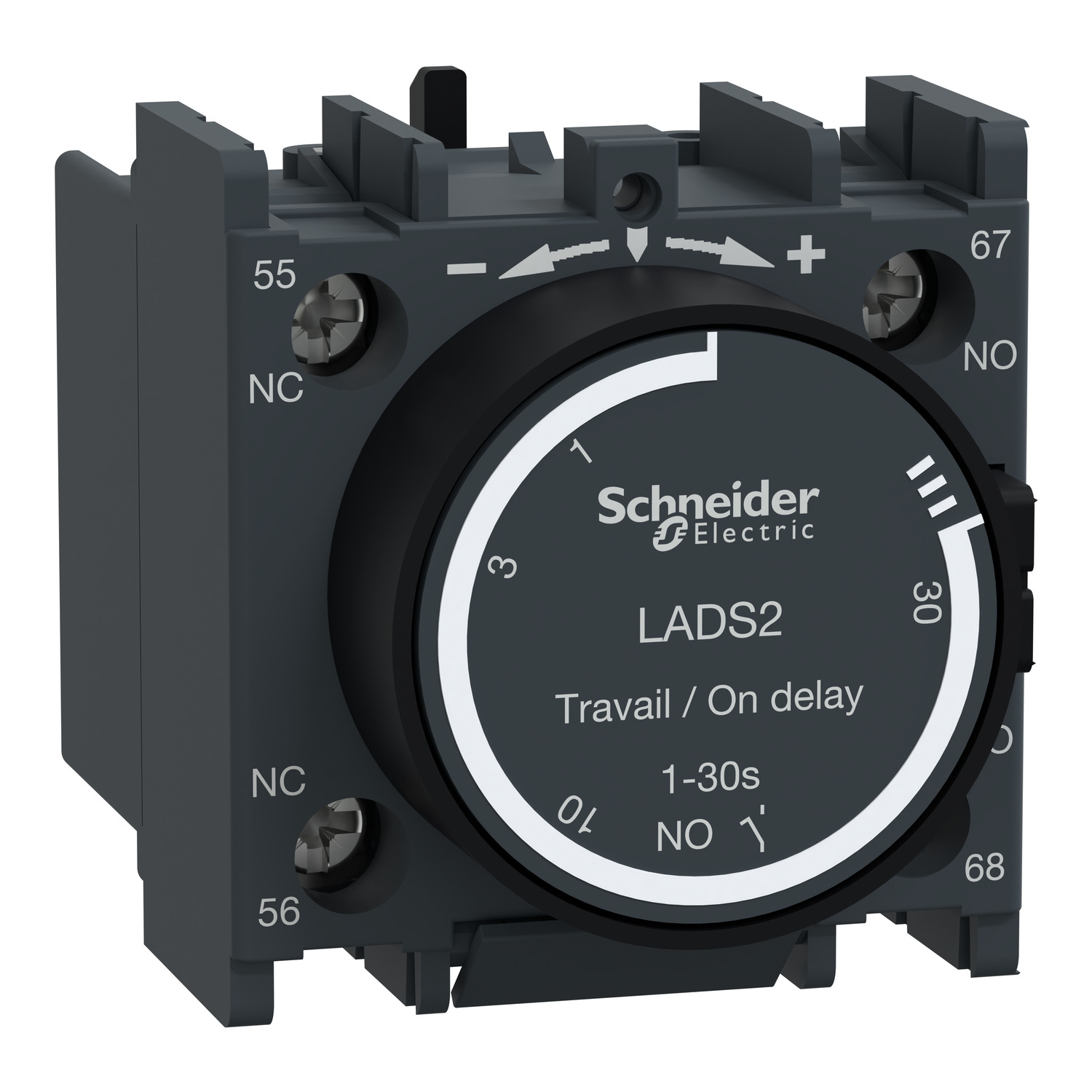

LADS2 | TeSys D – Time Delay Auxiliary Contact Block
Product Description
The LADS2 is a time delay auxiliary contact block designed for use with TeSys D contactors from Schneider Electric. It features 1 Normally Open (NO) and 1 Normally Closed (NC) contact, providing flexibility in control circuit configurations. The screw clamp terminals ensure secure and reliable connections.
Key Features
- Compatibility: Designed for use with TeSys D contactors.
- Contact Configuration: 1 NO + 1 NC contacts.
- Terminal Type: Screw clamp terminals for secure connections.
- Time Delay Function: Provides adjustable time delay for control applications.
- Mounting: Easy to mount directly onto the contactor.
- Durability: High-quality materials ensure long-lasting performance.
- Safety: Complies with international safety standards.
- Compact Design: Space-saving design for efficient panel layout.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | Up to 690V AC |
| Rated Current | Up to 6A |
| Contact Type | 1 NO + 1 NC |
| Terminal Type | Screw Clamp |
| Time Delay Range | Adjustable (specific range depends on model) |
| Operating Temperature | -25°C to +55°C |
| Standards | IEC 60947-5-1, UL 508, CSA C22.2 No. 14 |
Applications
The LADS2 time delay auxiliary contact block is ideal for use in various industrial and commercial applications, including:
- Motor control circuits
- Automation systems
- Control panels
- Machinery and equipment
Warranty and Support
Schneider Electric offers a standard warranty on the LADS2 time delay auxiliary contact block. For technical support or warranty claims, contact Schneider Electric customer service.
