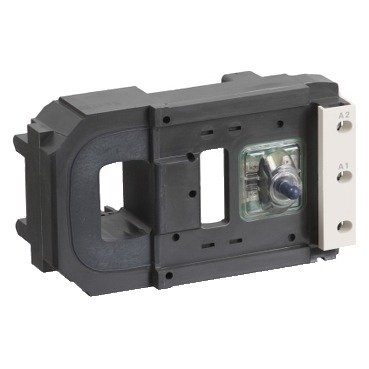

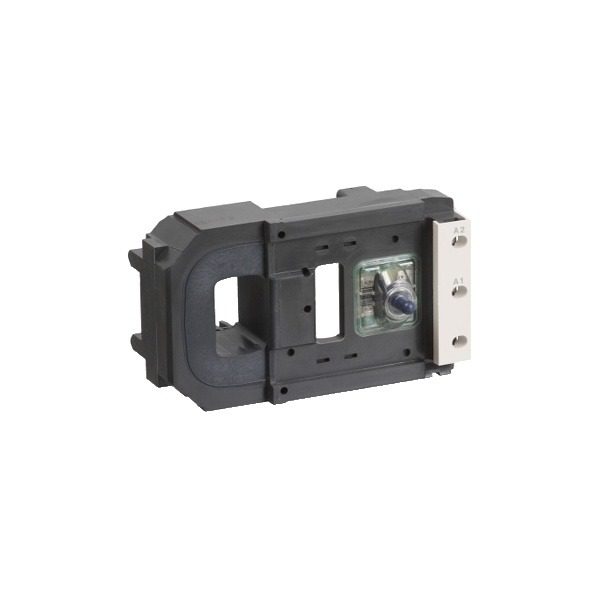

LX1FJ220 | TeSys F – contactor coil – LX1FJ – 220…230 V AC 40…400 Hz – Schneider Electric

Name: TeSys F Contactor Coil LX1FJ220 | 220-230V AC 40-400Hz
Brand: Schneider Electric
SKU: LX1FJ220
Price: 24832.70 INR
Availability: BackOrder

SKU: LX1FJ220

Original price was: ₹42,815.00.Current price is: ₹24,832.70. Excl. GST

Dispatch By : 3 Weeks

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

📋 Technical Specifications

Parameter	Value
Brand	Schneider Electric
Part Number / SKU	LX1FJ220
Category	Contactor Spare Part
Coil Voltage	220–230V AC
Standard	IEC 60947 (tested as part of the parent device certification)
Certifications	BIS certified, CE marked, RoHS compliant

⚡ Key Features

Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
Replacement contactor coil rated 220–230V AC at 40–400 Hz supply frequency — covers both 50Hz Indian and 60Hz international control supplies — restores the original contactor to service at a fraction of the cost of a complete replacement.
Exact-fit replacement — same electrical and mechanical specification as the factory-fitted coil; no recalibration or adjustment of the contactor required after fitting.
Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: The LX1FJ220 has a coil voltage of 220–230V AC — what control supply is needed?

A: This Schneider Electric device requires a 220–230V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

Q: What causes a contactor coil to fail and need replacement like the LX1FJ220?

A: The most common causes are: sustained undervoltage (coil hums and overheats while failing to seal the magnetic circuit), overvoltage, voltage spikes from nearby switching inductive loads, dust or rust on the magnet faces preventing full closure (coil draws inrush current continuously), and simple ageing of the insulation. If coils fail repeatedly, fit a surge suppressor and check the control supply voltage stability before fitting the new coil.

Q: How do I know the LX1FJ220 replacement coil matches my contactor?

A: Match three things: (1) the contactor series and frame size stated for the LX1FJ220, (2) the coil voltage — the replacement must equal the control circuit voltage exactly, and (3) AC or DC supply type. Fitting a coil of the wrong voltage causes failure to pull in (too low) or coil burnout (too high). The original coil’s voltage is printed on its face — verify before ordering.
