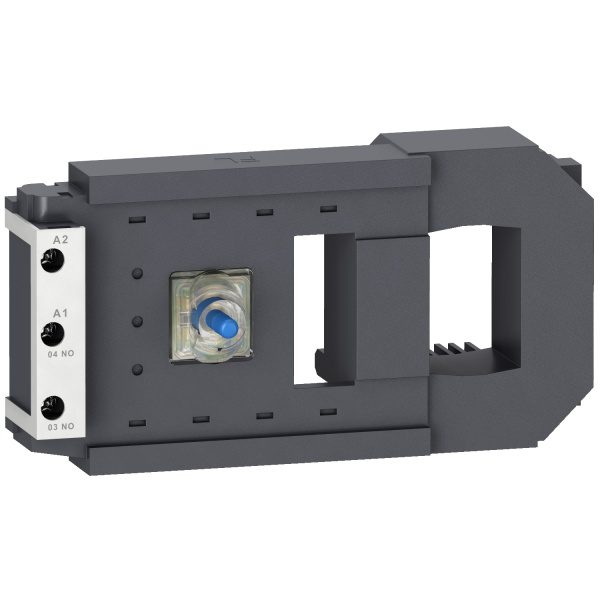

LX9FG110 | TeSys F – specific contactor coil – 110…115 V AC 40…400 Hz low consumption – Schneider Electric

Name: TeSys F Contactor Coil 110-115V AC | LX9FG110
Brand: Schneider Electric
SKU: LX9FG110
Price: 9688.90 INR
Availability: InStock

SKU: LX9FG110

Original price was: ₹16,705.00.Current price is: ₹9,688.90. Excl. GST

In stock

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric LX9FG110 is a contactor spare part from the TeSys range, engineered for motor control and switching in demanding Indian and international installations. Key ratings include 110–115V AC. Buy the LX9FG110 | TeSys F – specific contactor coil – 110…115 V AC 40…400 Hz low consumption online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LX9FG110
Category	Contactor Spare Part
Main
Range	TeSys
Product or component type	Specific contactor coil
Device short name	LX9FG
Range compatibility	TeSys TeSys F LC1F contactor
Product compatibility	LC1F185 LC1F225
Control circuit type	AC at 40…400 Hz low consumption
[Uc] control circuit voltage	110…115 V AC 40…400 Hz
Inductance of closed circuit	1.46 H
Average resistance	10.4 Ohm inrush at 20 °C 411 Ohm holding at 20 °C
Operating time	130 ms opening 35 ms closing
Mechanical durability	10 Mcycles
Maximum operating rate	2400 cyc/h 55 °C
Complementary
Coil technology	Without built-in suppressor module
Control circuit voltage limits	Operational: 0.85…1.1 Uc (at 55 °C) Drop-out: 0.2…0.55 Uc (at 55 °C)
Inrush power in VA	950…1180 VA 40…400 Hz (at 20 °C)
Hold-in power consumption in VA	8.9…10.9 VA 40…400 Hz (at 20 °C)
Heat dissipation	8…9.8 W
Environment
Ambient air temperature for operation	-5…55 °C
Product weight	0.55 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.0 cm
Package 1 Width	8.0 cm
Package 1 Length	15.8 cm
Package 1 Weight	593.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	14
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	8.752 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
Replacement contactor coil rated 110–115V AC at 40–400 Hz supply frequency — covers both 50Hz Indian and 60Hz international control supplies — restores the original contactor to service at a fraction of the cost of a complete replacement.
Low-consumption design — reduced holding power lowers coil temperature and panel heat load, extending both coil and contactor service life.
Exact-fit replacement — same electrical and mechanical specification as the factory-fitted coil; no recalibration or adjustment of the contactor required after fitting.
Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: The LX9FG110 has a coil voltage of 110–115V AC — what control supply is needed?

A: This Schneider Electric device requires a 110–115V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

Q: What causes a contactor coil to fail and need replacement like the LX9FG110?

A: The most common causes are: sustained undervoltage (coil hums and overheats while failing to seal the magnetic circuit), overvoltage, voltage spikes from nearby switching inductive loads, dust or rust on the magnet faces preventing full closure (coil draws inrush current continuously), and simple ageing of the insulation. If coils fail repeatedly, fit a surge suppressor and check the control supply voltage stability before fitting the new coil.

Q: How do I know the LX9FG110 replacement coil matches my contactor?

A: Match three things: (1) the contactor series and frame size stated for the LX9FG110, (2) the coil voltage — the replacement must equal the control circuit voltage exactly, and (3) AC or DC supply type. Fitting a coil of the wrong voltage causes failure to pull in (too low) or coil burnout (too high). The original coil’s voltage is printed on its face — verify before ordering.
