GVAE1 TeSys GV2 GV3 auxiliary contact 1 NO NC Schneider Electric gvae1 image web
Click to enlarge

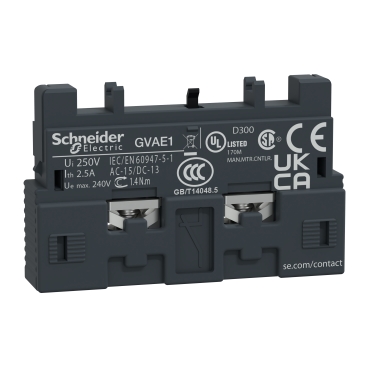

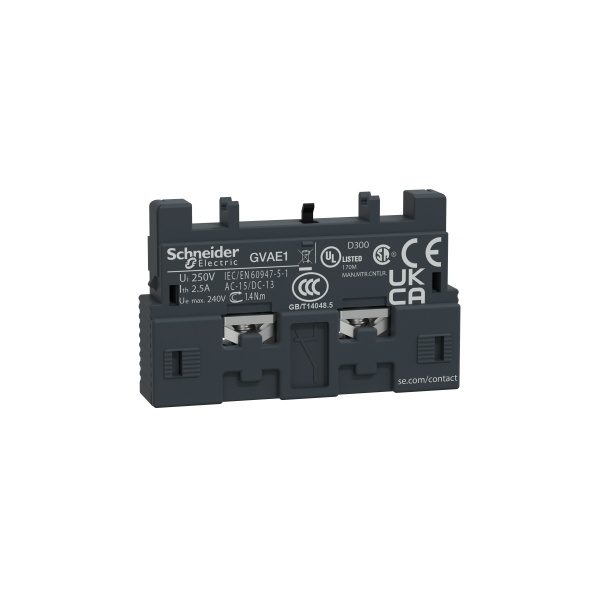

GVAE1 | TeSys GV2 & GV3 – auxiliary contact – 1 NO/NC – Schneider Electric

SKU: GVAE1

Original price was: ₹2,060.00.Current price is: ₹865.20. Excl. GST

In stock

In stock

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: GVAE1

Same-day dispatch · GST invoice available

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

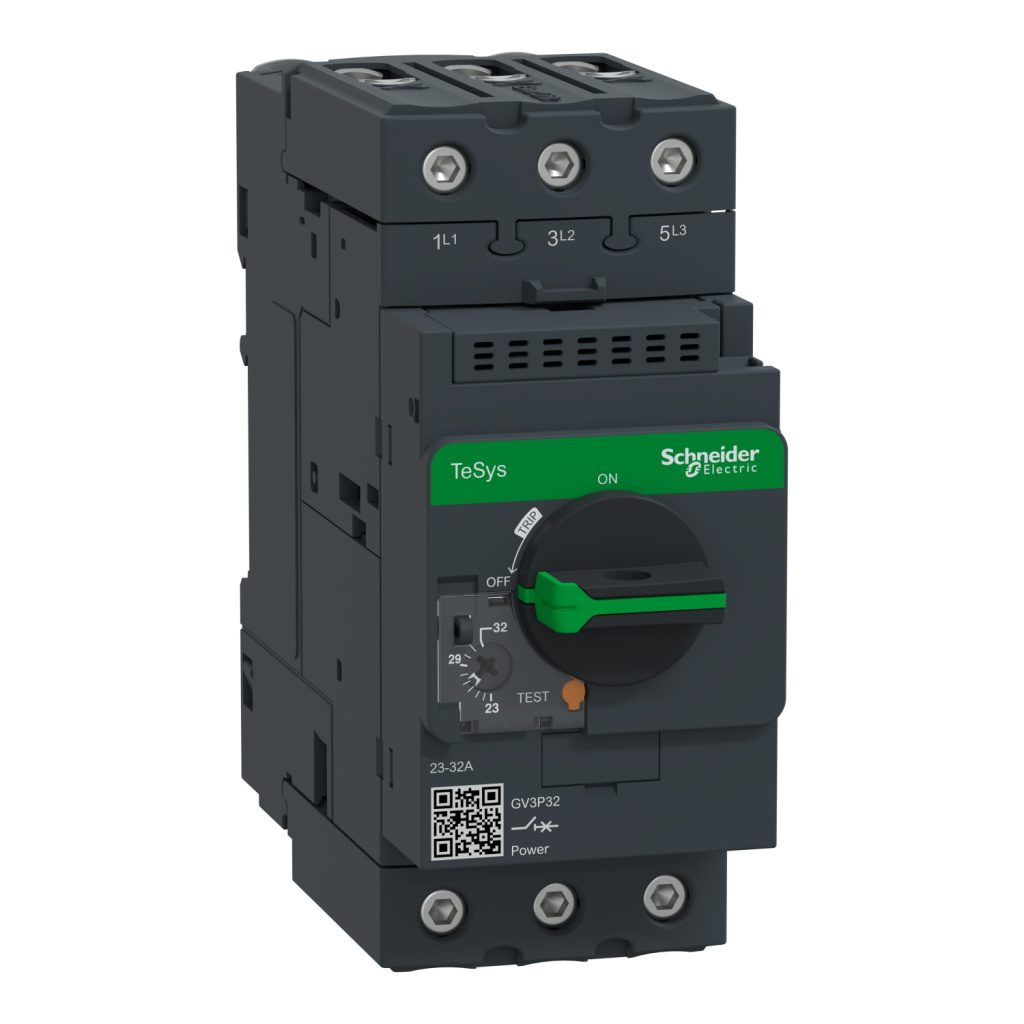

GV3P32 Motor circuit breaker, TeSys GV3, 3P, 23-32 A, thermal magnetic, EverLink terminals Schneider Electric gv3p32 image 15
-55%

GV3P32 | Motor circuit breaker, TeSys GV3, 3P, 23-32 A, thermal magnetic, EverLink terminals – Schneider Electric

Schneider Electric
Original price was: ₹60,855.00.Current price is: ₹27,384.75. Excl. GST
Add to basket
SKU: GV3P32
GV3P73 Motor circuit breaker, TeSys GV3, 3P, 62-73 A, thermal magnetic, EverLink terminals Schneider Electric gv3p73 image 01
-55%

GV3P73 | Motor circuit breaker, TeSys GV3, 3P, 62-73 A, thermal magnetic, EverLink terminals – Schneider Electric

Schneider Electric
Original price was: ₹42,845.00.Current price is: ₹19,280.25. Excl. GST
Add to basket
SKU: GV3P73

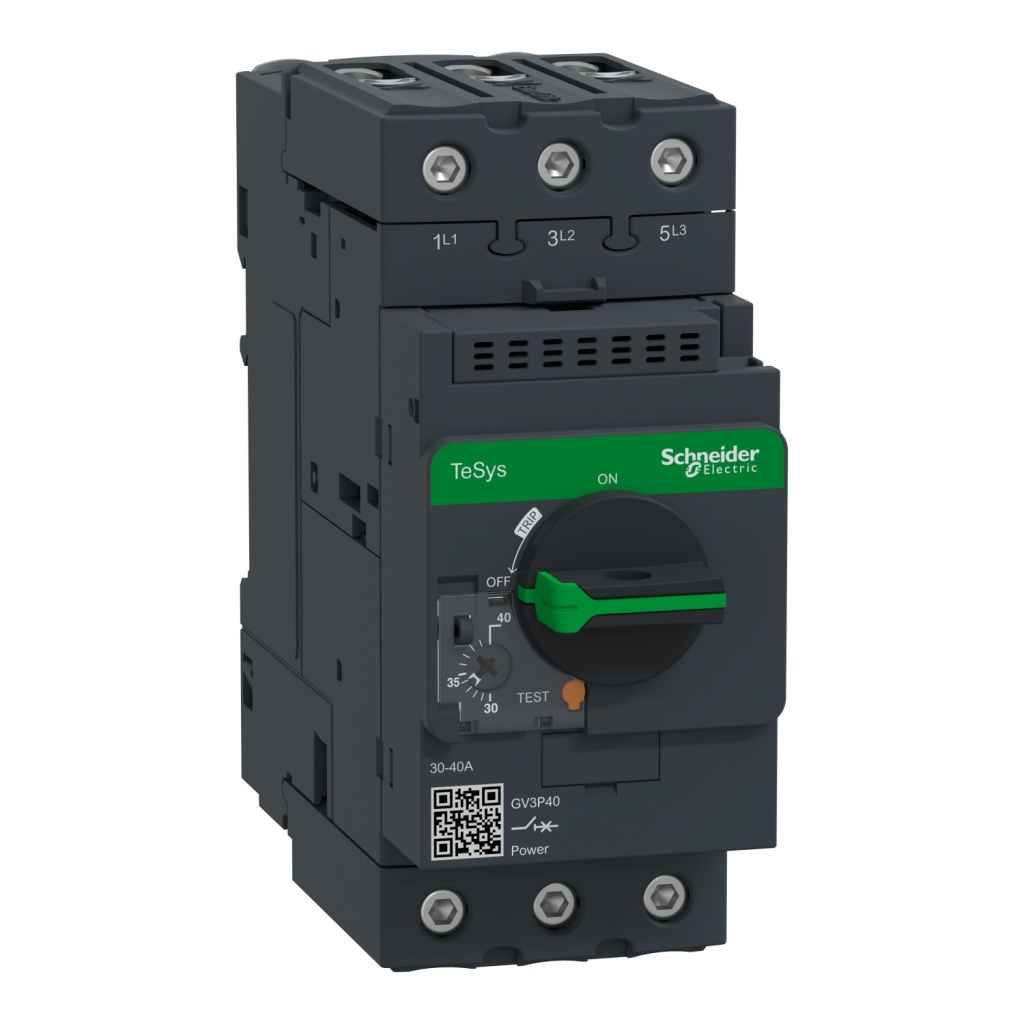

GV3P40 Motor circuit breaker, TeSys GV3, 3P, 30-40 A, thermal magnetic, EverLink terminals Schneider Electric gv3p40 image 15
-55%

GV3P40 | Motor circuit breaker, TeSys GV3, 3P, 30-40 A, thermal magnetic, EverLink terminals – Schneider Electric

Schneider Electric
Original price was: ₹32,970.00.Current price is: ₹14,836.50. Excl. GST
Add to basket
SKU: GV3P40

GV2LE10 | GV2 MOTOR CB MAGNETIC 6.3A TOGGLE SWITCH – Schneider Electric

Schneider Electric
₹9,210.00 Excl. GST
Add to basket
SKU: GV2LE10
GV2ME08 Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me08 ima
-58%

GV2ME08 | Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹11,000.00.Current price is: ₹4,620.00. Excl. GST
Add to basket
SKU: GV2ME08
GV3P80 Motor circuit breaker, TeSys GV3, 3P, 70-80 A, thermal magnetic, EverLink terminals Schneider Electric gv3p80 image 01
-55%

GV3P80 | Motor circuit breaker, TeSys GV3, 3P, 70-80 A, thermal magnetic, EverLink terminals – Schneider Electric

Schneider Electric
Original price was: ₹45,075.00.Current price is: ₹20,283.75. Excl. GST
Add to basket
SKU: GV3P80
GV2ME20 Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me20 ima
-58%

GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹13,270.00.Current price is: ₹5,573.40. Excl. GST
Add to basket
SKU: GV2ME20
GV3P50 Motor circuit breaker, TeSys GV3, 3P, 37-50 A, thermal magnetic, EverLink terminals Schneider Electric gv3p50 image we
-55%

GV3P50 | Motor circuit breaker, TeSys GV3, 3P, 37-50 A, thermal magnetic, EverLink terminals – Schneider Electric

Schneider Electric
Original price was: ₹40,875.00.Current price is: ₹18,393.75. Excl. GST
Add to basket
SKU: GV3P50

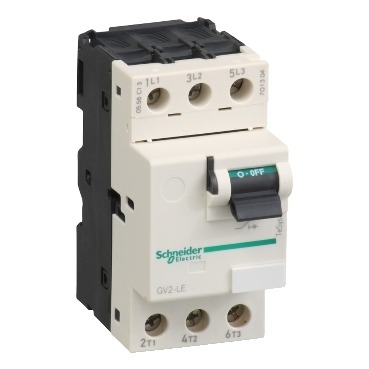

GV2LE22 | GV2 MOTOR CB MAGNETIC 25A TOGGLE SWITCH – Schneider Electric

Schneider Electric
₹10,690.00 Excl. GST
Add to basket
SKU: GV2LE22
GV2ME10 Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me10 ima
-58%

GV2ME10 | Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹11,000.00.Current price is: ₹4,620.00. Excl. GST
Add to basket
SKU: GV2ME10

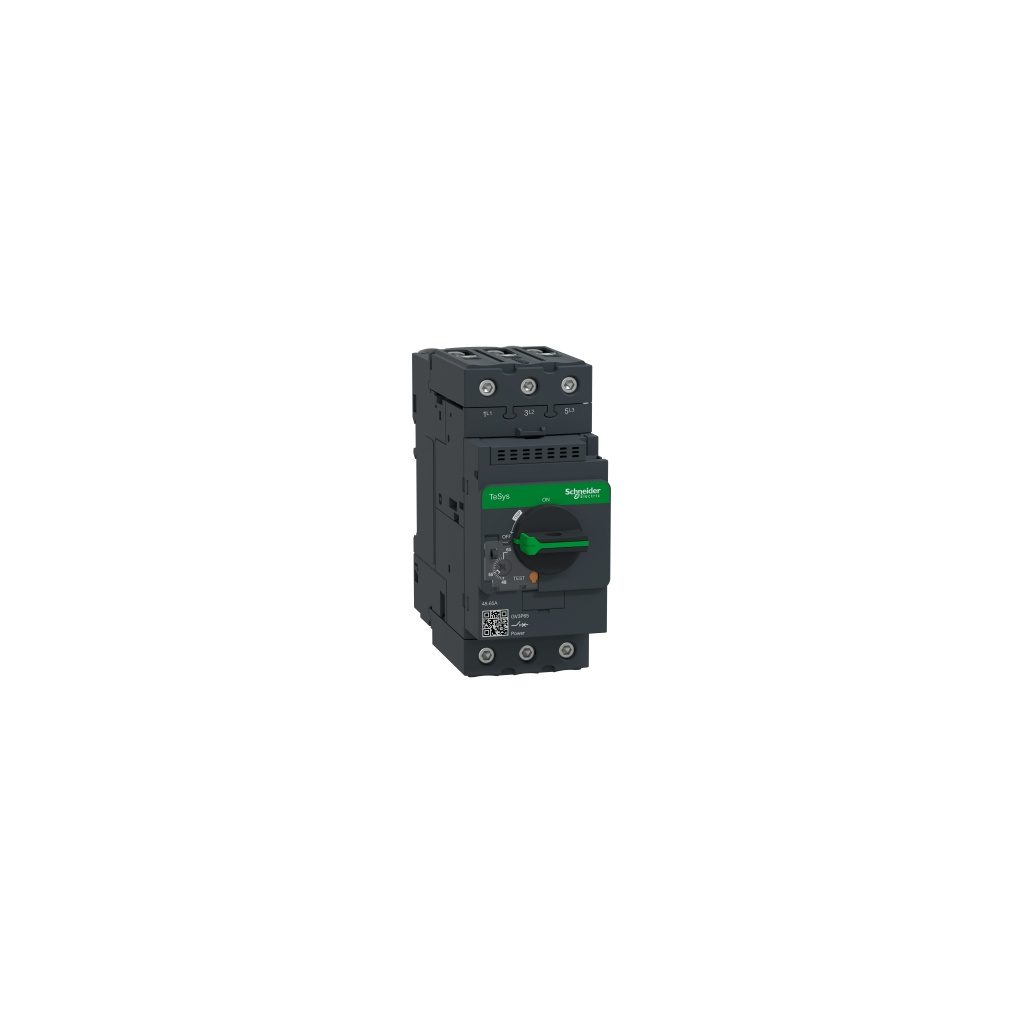

GV3P65 Motor circuit breaker, TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals Schneider Electric gv3p65 image we
-55%

GV3P65 | Motor circuit breaker, TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals – Schneider Electric

Schneider Electric
Original price was: ₹41,925.00.Current price is: ₹18,866.25. Excl. GST
Add to basket
SKU: GV3P65
-56%

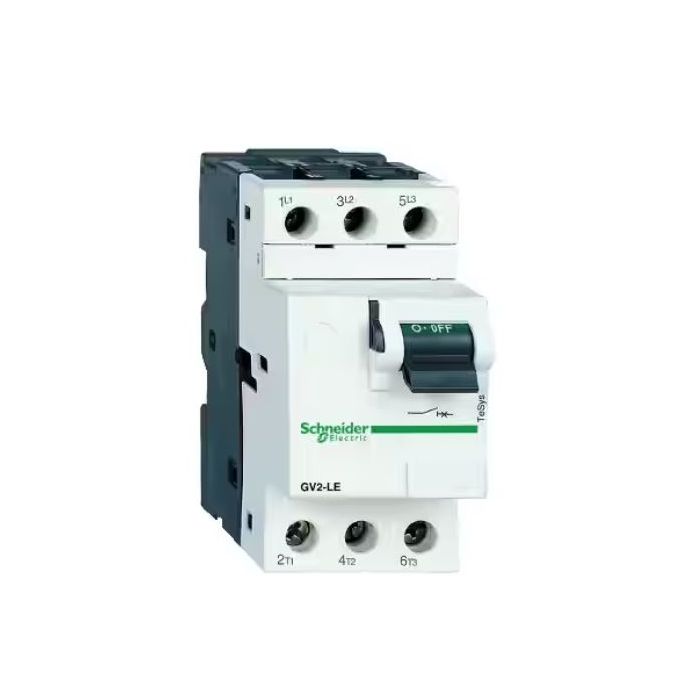

GV2LE14 | GV2 MOTOR CB MAGNETIC 10A TOGGLE SWITCH – Schneider Electric

Schneider Electric
Original price was: ₹9,210.00.Current price is: ₹4,052.40. Excl. GST
Add to basket
SKU: GV2LE14
GV2P16 Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals Schneider Electric gv2p16 image
-55%

GV2P16 | Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹14,490.00.Current price is: ₹6,520.50. Excl. GST
Add to basket
SKU: GV2P16
GV2ME07 Motor circuit breaker, TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me07 i
-58%

GV2ME07 | Motor circuit breaker, TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹10,630.00.Current price is: ₹4,464.60. Excl. GST
Add to basket
SKU: GV2ME07

    Looking for the GVAE1 | TeSys GV2 & GV3 – auxiliary contact – 1 NO/NC? This genuine Schneider Electric contactor accessory from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 24…240 V AC. Order part number GVAE1 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKUGVAE1
    CategoryContactor Accessory
    Main
    RangeTeSys
    TeSys Deca
    Device short nameGVAE
    Product or component typeAuxiliary contact block
    Product compatibilityGV2P
    GV2L
    GV2ME
    GV2LE
    GV2RT
    GV2LM
    GV3P
    GV3L
    Mounting locationFront side
    Pole contact composition1 NO/NC
    Quantity per setSet of 10
    Complementary
    [Ui] rated insulation voltage300 V conforming to UL 508
    300 V conforming to CSA C22.2 No 14
    250 V conforming to IEC 60947-1
    [Ue] rated operational voltage24…240 V AC
    24…60 V DC
    [Ith] conventional free air thermal current2.5 A
    Mechanical durability100000 cycles
    Minimum switching current5 mA
    Minimum switching voltage17 V
    Protection typeGG fuse 10 A
    GB2CB06 circuit breaker 10 A maximum
    Rated operational power in VA120 VA at 110…120 V AC-15 – electrical durability: 100000 cycles
    120 VA at 230…240 V AC-15 – electrical durability: 100000 cycles
    48 VA at 24 V AC-15 – electrical durability: 100000 cycles
    60 VA at 48 V AC-15 – electrical durability: 100000 cycles
    Rated operational power in W15 W at 48 V DC-13 – electrical durability: 100000 cycles
    24 W at 24 V DC-13 – electrical durability: 100000 cycles
    9 W at 60 V DC-13 – electrical durability: 100000 cycles
    Tightening torque1.7 N.m screw clamp terminals
    Height11 mm
    Width45 mm
    Depth29 mm
    Product weight0.02 kg
    ColourDark grey
    Environment
    Environmental characteristicNormal environment
    StandardsEN/IEC 60947-5-1
    UL 60947-4-1
    CSA C22.2 No 60947-4-1
    IEC/EN 60335-1:Clause 30.2
    IEC/EN 60335-2-40:Annex JJ
    Product certificationsCB Scheme
    CE
    UKCA
    CCC
    cULus
    EAC
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height1 cm
    Package 1 Width6 cm
    Package 1 Length7 cm
    Package 1 Weight12 g
    Unit Type of Package 2BB1
    Number of Units in Package 210
    Package 2 Height3 cm
    Package 2 Width20.2 cm
    Package 2 Length26 cm
    Package 2 Weight130 g
    Unit Type of Package 3S03
    Number of Units in Package 3260
    Package 3 Height30 cm
    Package 3 Width30 cm
    Package 3 Length40 cm
    Package 3 Weight3.821 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
    • Auxiliary contact block (OF type) — 1 NO (Normally Open) contacts mirror the main contact position; wired to PLC for run/trip feedback, indicator lamps, or interlocking with upstream devices.
    • 1 NO (Normally Open) contact arrangement — extends the switching capacity of the parent device for PLC feedback, interlocking, or additional signalling circuits.
    • Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
    • Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    GV2ME08GV2ME10GV2ME07GV2ME20GV3P40GV3P50GV3P65GV2P16GV3P80GV3P32GV2LE14GV2LE10GV3P73GV2RT10GV3P25GV2RT07GV2RT08GV2LE16GV2LE22GV2LE08

    ❓ Frequently Asked Questions

    Q: What does the 1 NO (Normally Open) contact configuration on the GVAE1 mean?

    A: These contacts change state when the device is operated or energised. Size the contact for the actual switched load — pilot duty ratings are typically lower than the main contact rating.
