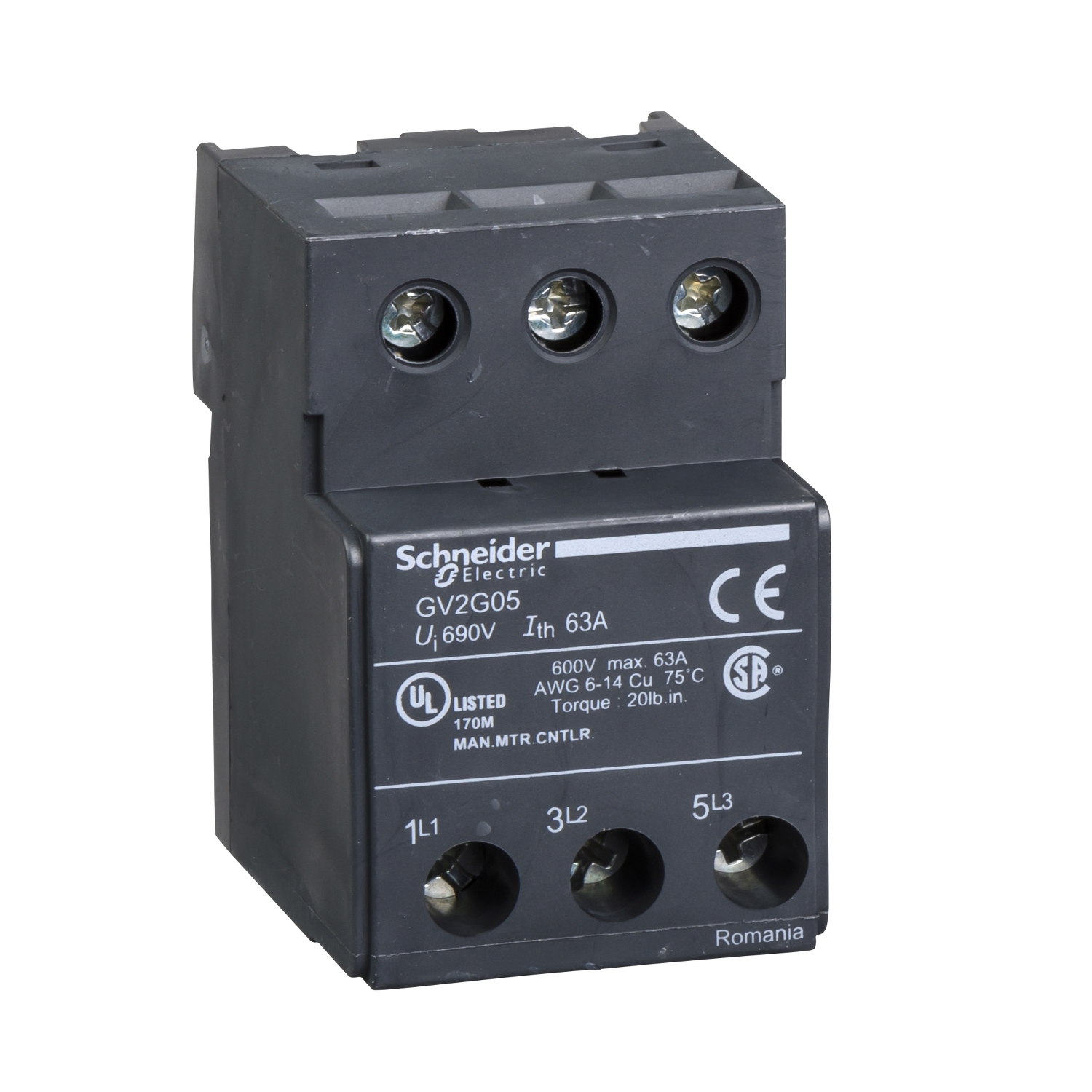

    GV2G05 | TeSys GV2, TeSys D & TeSys U – terminal block – 3P – for GV1L3 – Schneider Electric

    SKU: GV2G05

    Original price was: ₹7,780.00.Current price is: ₹3,734.40. Excl. GST

    In stock

    In stock

    19 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    GV2P16 Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals Schneider Electric gv2p16 image
    -55%

    GV2P16 | Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹14,490.00.Current price is: ₹6,520.50. Excl. GST
    Add to basket
    SKU: GV2P16
    GV2ME07 Motor circuit breaker, TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me07 i
    -58%

    GV2ME07 | Motor circuit breaker, TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹10,630.00.Current price is: ₹4,464.60. Excl. GST
    Add to basket
    SKU: GV2ME07
    GV2ME20 Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me20 ima
    -58%

    GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹13,270.00.Current price is: ₹5,573.40. Excl. GST
    Add to basket
    SKU: GV2ME20
    GV2ME08 Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me08 ima
    -58%

    GV2ME08 | Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹11,000.00.Current price is: ₹4,620.00. Excl. GST
    Add to basket
    SKU: GV2ME08
    GV2ME10 Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me10 ima
    -58%

    GV2ME10 | Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹11,000.00.Current price is: ₹4,620.00. Excl. GST
    Add to basket
    SKU: GV2ME10

      Sourced through authorised channels, the Schneider Electric GV2G05 terminal block from the Linergy range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 63 A, 3P, IP20. myelectric.in stocks the GV2G05 | TeSys GV2, TeSys D & TeSys U – terminal block – 3P – for GV1L3 for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKUGV2G05
      CategoryTerminal Block
      Main
      RangeLinergy
      Product nameFT
      Device short nameGV2G
      Product or component typeTerminal block
      Accessory / separate part categoryConnection accessory
      Poles description3P
      Range compatibilityTeSys GV2
      TeSys Deca
      TeSys K
      TeSys U
      Complementary
      [Ie] rated operational current63 A
      Mounting location35 mm DIN rail
      IP degree of protectionIP20 conforming to IEC 60529
      [Ui] rated insulation voltage690 V conforming to IEC 60947-1
      Connections – terminalsScrew clamp terminals 1 cable(s) (AWG 4) – solid
      Screw clamp terminals 1 cable(s) 1.5…16 mm² – flexible with cable end
      Screw clamp terminals 1 cable(s) 1.5…16 mm² – flexible without cable end
      Screw clamp terminals 1 cable(s) 1.5…25 mm² – solid
      Screw clamp terminals 2 cable(s) 1.5…4 mm² – flexible with cable end
      Screw clamp terminals 2 cable(s) 1.5…6 mm² – solid
      Screw clamp terminals 2 cable(s) 2.5…4 mm² – flexible without cable end
      Screw clamp terminals 1 cable(s) (AWG 4) – flexible
      Tightening torque1.7 N.m – on screw clamp terminals
      2.2 N.m – on connector
      Product weight0.115 kg
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height5.500 cm
      Package 1 Width6.000 cm
      Package 1 Length7.000 cm
      Package 1 Weight120.000 g
      Unit Type of Package 2S02
      Number of Units in Package 240
      Package 2 Height15.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight5.009 kg
      Unit Type of Package 3P06
      Number of Units in Package 3640
      Package 3 Height75.000 cm
      Package 3 Width60.000 cm
      Package 3 Length80.000 cm
      Package 3 Weight93.220 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      GV2ME08GV2ME10GV2ME07GV2ME20GV2P16
